1.The maximum load capacity supports 150,000 pixels, which greatly meets the needs projects.

2.The system supports automatic, timing, and holiday preset effects playback;

3.2 buttons on the controller in addition with external remote controller can realize program segment selection, overall brightness adjustment, white balance adjustment, playback speed adjustment, etc.

4.Support offline one-key fixing and clearing of sub-control ID numbers, which is convenient for on-site application.

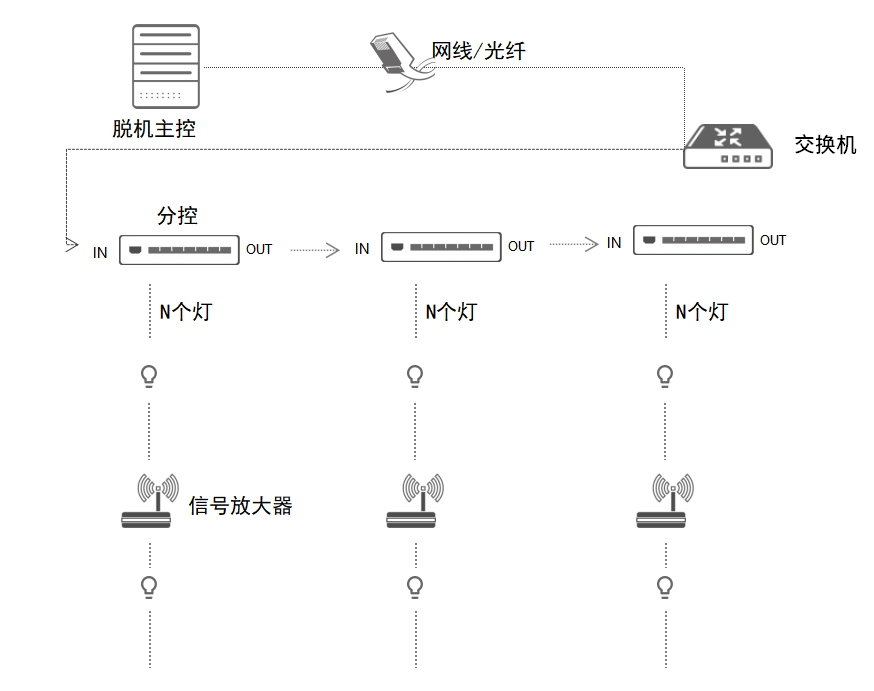

5.Support switch parallel scheme: reduce the system cascade chain length to improve stability

6.Support dual-channel backup. In case one controller or the network cable is broken, the display is not affected

7.Independent brightness control of three primary colors, making precise adjustment of white balance easier and more effective.

8.Support four-color luminaires: energy saving and environmentally friendly.

9.Using Ethernet interface and UDP network protocol for stable transmission, the maximum transmission distance is 100 m.

10.LCD display module displays controller parameters and status in time

11.SD card storage, the controller can support up to 32G, up to 99 program files can be preset

12.Support multiple offline master controller to download and update offline programs remotely online;

13.Built-in animation test program, convenient for customers to debug and apply in the project;

14.It can support different types of luminaires and luminaires of different protocols to be mixed with strong compatibility.

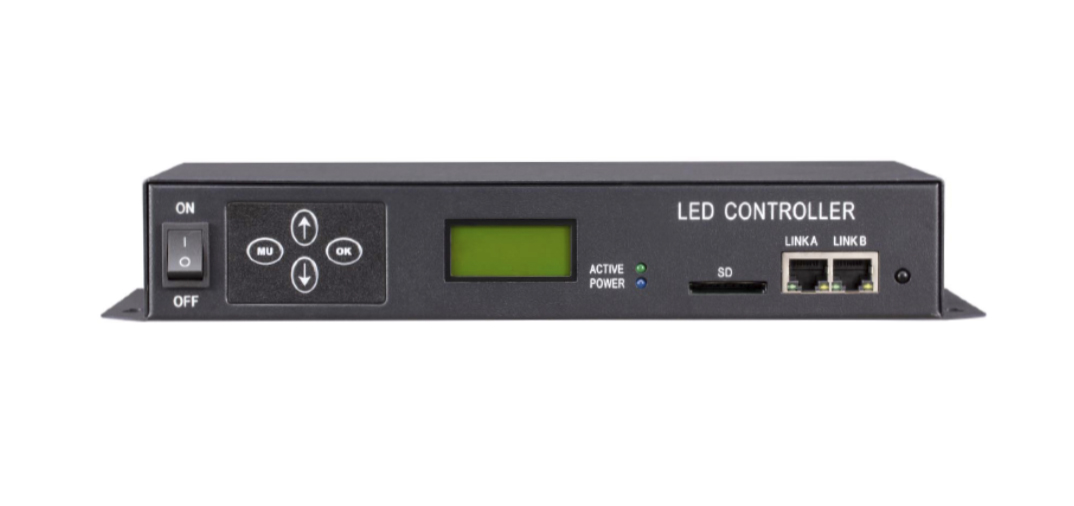

This is a large-scale multi-functional offline master controller designed by our company independently. Its functions include video editing, synchronous and asynchronous integrated control, and two-channels redundancy of system signals. It can meet the needs of joint control in different lighting scenarios.

Product name	Offline master controller
Type	LM-SC-M03
Rated voltage	AC 100V～240V
Rated power	15W
Length	283mm
Width	134mm
Height	45mm
Fixed hole sapcing	268mm；68 mm
Standard accessories	Remote controller×1 /SD card×1/ card reader ×1/AC cable×1
