1、support luminaries under DMX512 and RDM protocols

2、8 channels signal outputs, with a maximum of 512 channels per channel.

3、The signal terminal is equipped with enhanced anti-surge and static electricity design.

4、lockable signal terminals make Anti-vibration and anti-pull ability stronger

5、 Art-NET communication protocol is supported between master-to-sub-control devices

6、 2 RJ45 network interfaces (100/1000M self-adaptive)

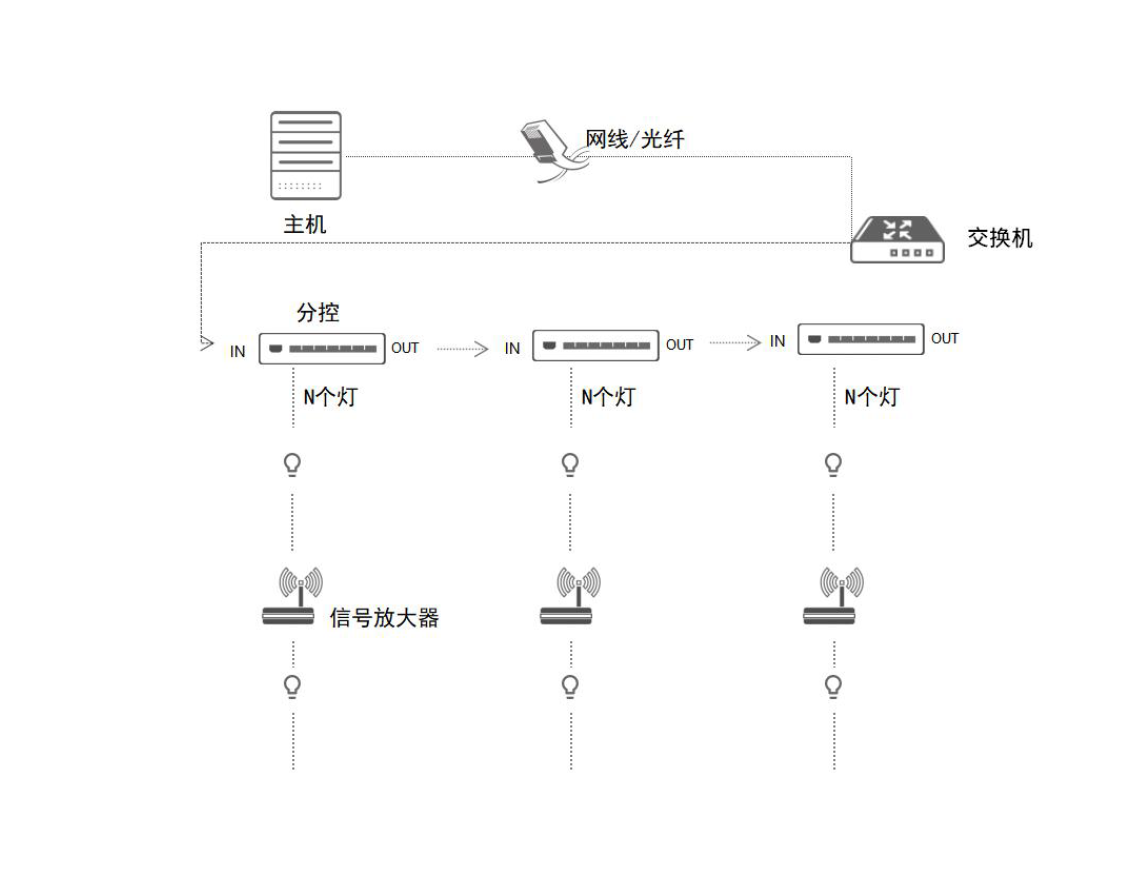

7、 The cascading of the sub-control devices automatically assigns addresses

8、 Dual redundant signal transmission makes system more stable

9、 Easily upgrade your device over the network

10、The basic parameters of each sub-control device, such as brightness, GAMA, control chip, etc., can be set individually.

11、 The LCD screen shows the working status of the sub-control device in real time

The track DMX sub-controller is a new generation intelligent lighting control system developed by Leifei, based on industrial-grade ARM and ultra-large-scale programmable logic device and advanced digital image processing technology. Industrial-grade design makes the system more stable and reliable for complex application environments.

Rated voltage	AC 100V~240V
Rated power	15w
Material of housing	SPCC (Sheet Metal)
Size (mm)	231(L)×147(W)×60 (H)
Net weight (Kg)	0.88
Supported protocol	DMX512、RDM
The number of output channels	8 channels
The type of signal output terminal	3P terminals (lockable)
The network communication terminal	2×RJ45
Operating temperature range	-30℃～50℃
The working humidity range	10% to 90% (no condensation)
Product certification	CQC、CB、ROHS、EMC、CE、安规
Protection level	IP20
