1.DMX sub-controller supports standard USITT DMX512/1990 universal protocol and extended DMX512 protocol.

2.The addressing signal output of the DMX sub-controller is compatible with differential signal output, which increases the transmission distance of the addressing signal, and is conducive to the long-distance transmission and effective addressing.

3.Independent brightness control of the three primary colors makes it easier and more effective to accurately adjust the white balance.

4.Precise gamma correction algorithm, which is more in line with human visual sensitivity characteristics, makes the display colors more delicate and richer.

5.Maximum support 120 frame change frequency to ensure the screen HD display and 3D display requirements.

6.Using Ethernet interface and UDP network protocol for stable transmission, the maximum transmission distance is 100 meters.

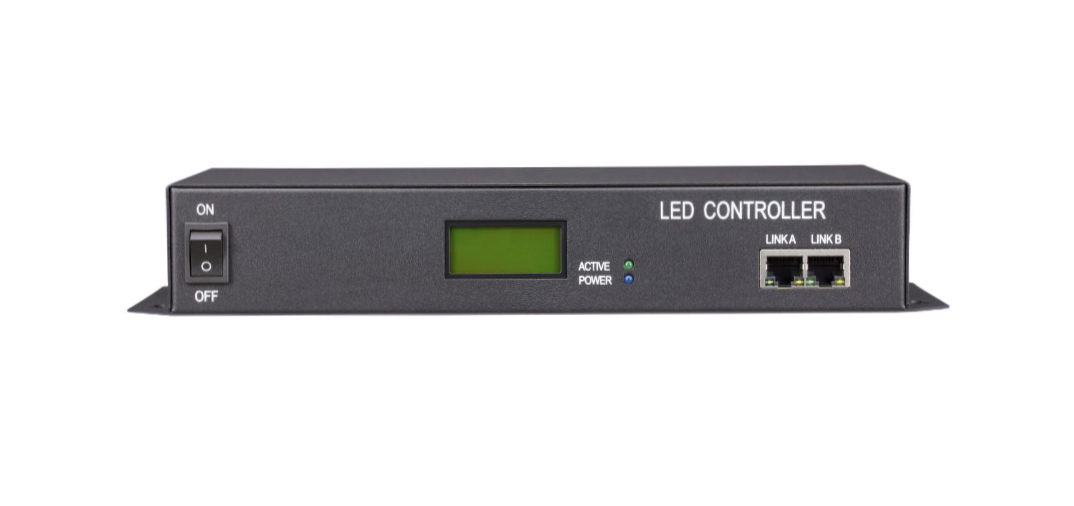

7.LCD display module displays controller parameters and status in time.

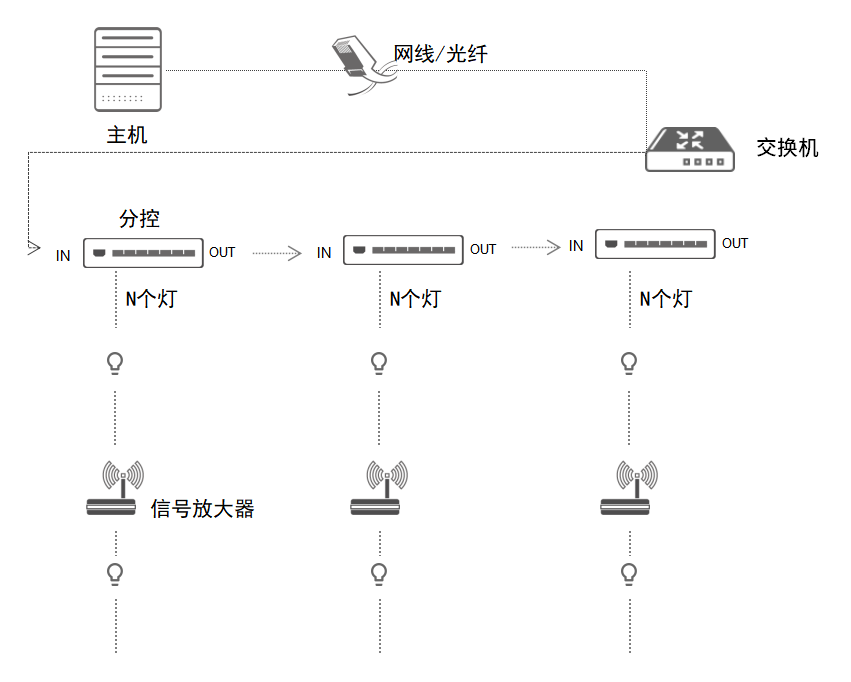

8.Dual network interfaces make cascading between controllers can be realized; the controllers automatically self-detect, and the software directly displays the connection status.

9.8-terminal with single-terminal output standard 512 channels. The number of points loaded by the extended protocol is tested by the customer depends on the chip.

10.Support dual-channel backup. the display will not be affected in case one controller or the network cable is broken,

11.1000/100M self-adaptive or mandatory 100M can be set to ensure stability of projects with large number of pixels.

Gigabit/100M optional to adapt to different project needs; four-color independent algorithm: energy saving and environmental friendly, pure color; used in various complex applications such as special-shaped screens, multi-screens, building screens, pixel lamp screens at home and abroad; support IP grouping Function; take advantage of the switch parallel scheme to reduce the length of the system cascade chain and improve the stability of the system;

Rated voltage	AC 100V～240V
Rated power	15W
Length	283mm
Width	134mm
Height	45mm
Fixed hole spacing	268mm；68 mm
Standard accessories	AC power cable×1
