Product

1. Compatibility: track and pull-out device are equipped, compatible with the new EPE motherboard.

2. Strengthened overall machine: There are reinforcing ribs pressed on both sides of the chassis, which greatly improves the strength of the chassis.

3. Convenient lid opening: There are handles at the back of the lid, which is convenient for pulling the lid.

4. Convenient to replace the dust-proof net: The structure of the drawing part of the dust-proof net frame is designed with a track, which is convenient to pull out and replace the dust-proof net.

5. EMC: The folded edge design of the CD-ROM drive fits closely with the chassis, and the radiation resistance is strengthened.

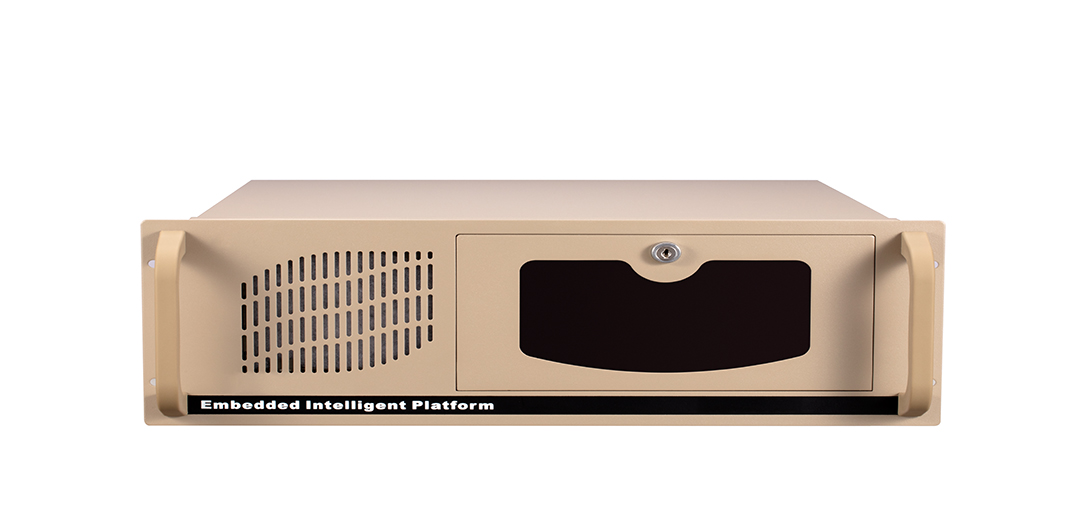

IPC-810 is a 4U rackmount chassis that continues the traditional style; height of the bead can be adjusted to match the height of the EPI motherboard and PCI expansion card; it is compatible with internal FSC, EPI, EPE, EC9, EC0 and other full series long card and industrial motherboard. the handle is designed to be detachable; EMC has been greatly improved. It can contain one 5.25' CD-ROM and two hard disks with vibration reduction measures; with its reasonable structure and advanced design, the products have a broad market space as an upgrade of traditional products. It can be widely used in communications, networks, finance, electricity, transportation, military, industrial automation, and other fields.

Compatible Motherboard	PICMG 1.0 standard full-length card, PICMG 1.3 standard full-length card, EPI 2.0 standard full-length card, EPE standard full-length card, Micro-ATX standard single board, ATX standard single board
Compatible Baseboard	10 slots standard PICMG 1.0 baseboard, 14 slots standard PICMG 1.0 baseboard, 10 slots standard PICMG 1.3 baseboard, 13 slots standard EPI 2.0 baseboard, 10 slots standard EPE baseboard
I/O interface	2 Front- facing USB 2.0 interface, ATX Rocker switch, reset switch, power, Hard Disk Indicator, Safety door with lock
Storage	One 5.25〞CD-ROM space, two 3.5〞HDD space（cushioning）
Working environment	0℃～50℃；5%～90%（Noncondensing state）
Storage environment	-20℃～60℃；5%～90%（Noncondensing state）
Power	Standard PS2 ATX power
Size(W×H×D)：	482 mm×177 mm×470.4 mm

Light Space

Projects

Downloads

About Us

Product Picture

Product Feature

Application

Technical Data

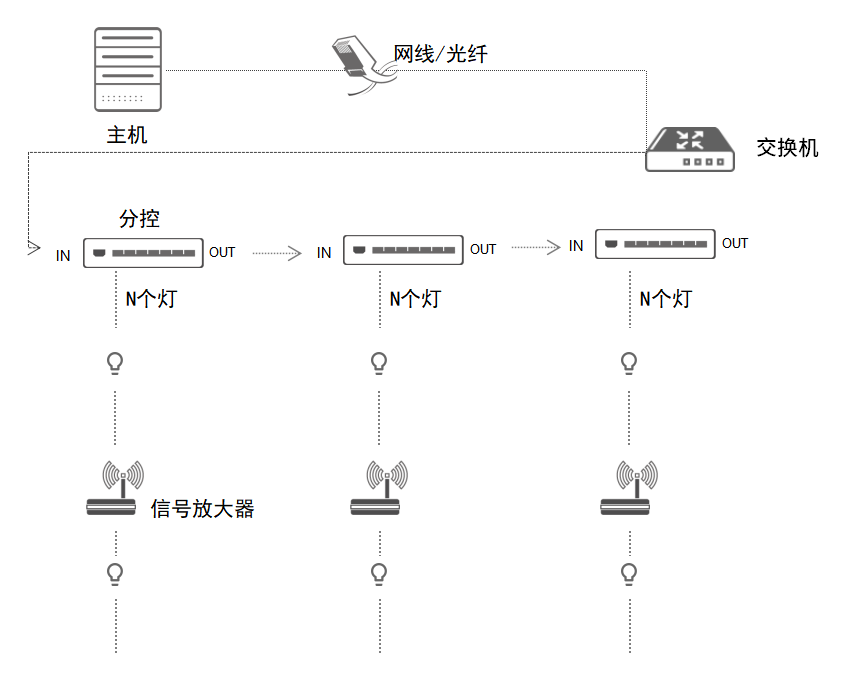

System Wiring Diagram
