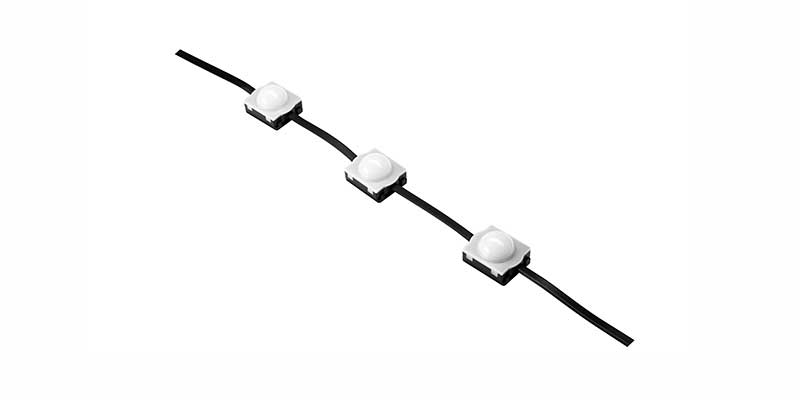

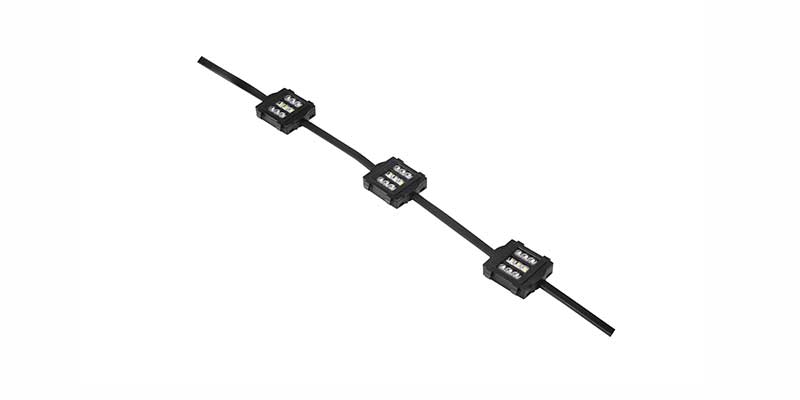

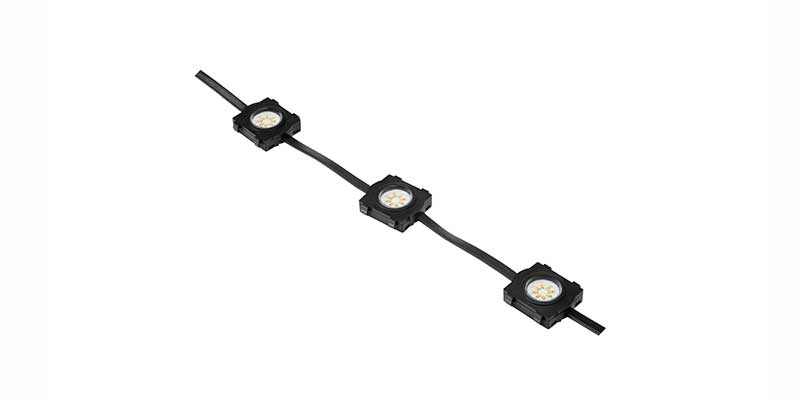

MagicStrip-X6044

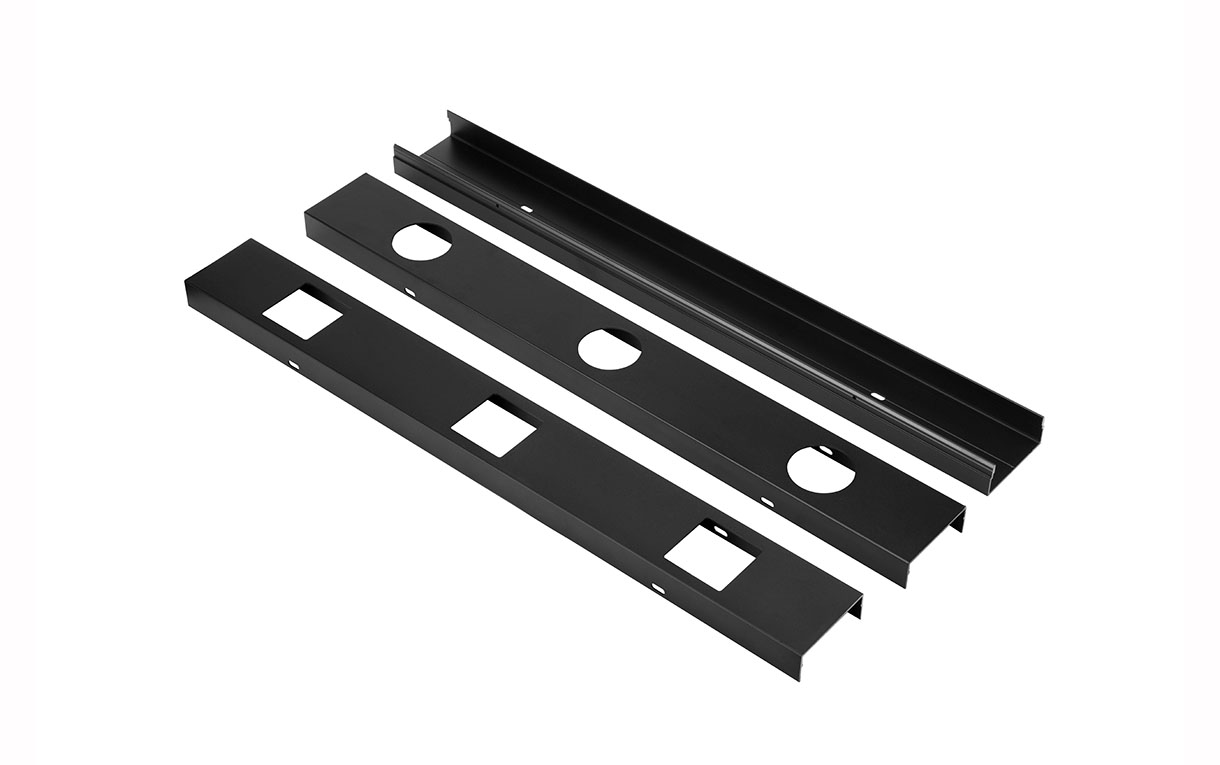

A basic outdoor point-shaped pixel lighting system designed for facades. With tracks and installation accessories, it can be ideally combined with the curtain. A variety of professional optical designs, in addition to the conventional overall surface emission and specially designed micro-hole lens models, there are also asymmetry distribution available. While ensuring the surface brightness, it reduces the light from the horizontal direction, improves lighting efficiency, and saves energy. With internal or third-party standard control system, a variety of lighting scenes can be realized.

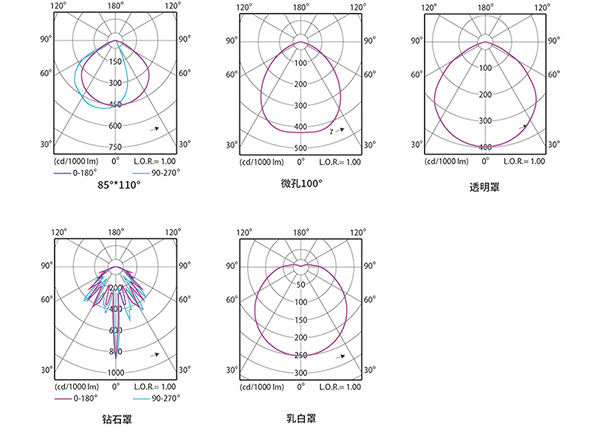

Light Distribution

Technical Data

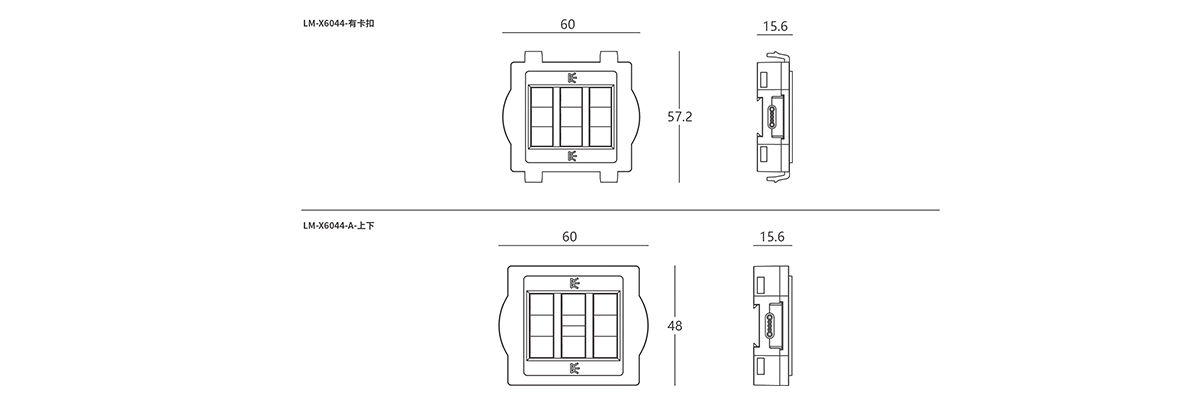

Dimension(mm):	60(L)48(W)15.6(H)
Brand of Light Source:	OSRAM/LUMILEDS/LUMILED+OSRAM
Light Color:	2200/2700/3000/4000/5000K,2200K~6500K,RGB,RGBW（6RGB+3W）
Power:	8pcs：2/2.5W
Power:	9pcs：2/2.5W
CRI （Ra):	80
SDCM:	≤5SDCM

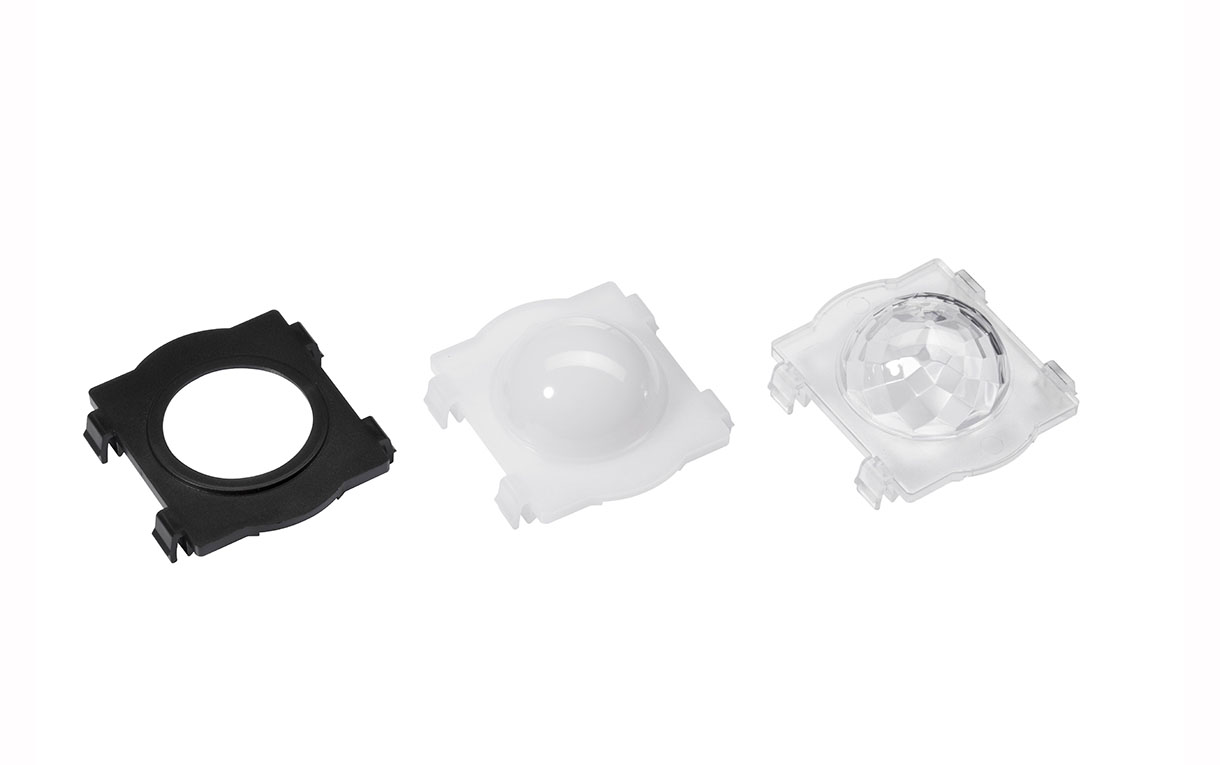

Beam Angle:	transparent flat cover/diamond cover / asymmetry 85X110 lens+decorative cover /asymmetry 65X120+decorative cover
Input voltage:	DC24V
Control:	DMX/RDM
Channel:	1
Appearance:	Weight:0.04KG，Materials：PC， Color：RAL9011
Temperature Range:	-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)
Surface Temperature:（@50℃）	≤65
Protection Grade:	IP66
Protection Grade:	IK06
Windward Area（max m²）:	0.0031
Environmental Certification:	ROHS
Certification:	CQC
Cable:	2 coreflat wire exposed 15cm, 2x1.0mm2 withIP66&IP67cable glands（On-Off）
Cable:	5 coreflat wire exposed 15cm, 2x1.0mm2 + 3x0.3mm2 withIP66&IP67cable glands（DMX/RDM）
