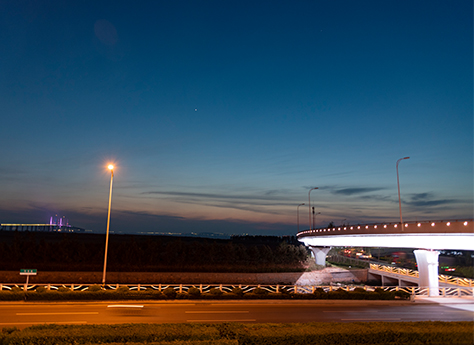

Jinshui Road Overpass is located on Huanwan Road, a highway adjacent to Jiaozhou Bay and close to Qingdao North Railway Station.

To ensure the light effect, LiteMagic installed the linear wall washer Brush-SW015 by erecting profiles and brackets at the cantilever arm of the bridge in advance. By this method, the luminaires were easier to be adjusted with the help of the bracket, so that the light can be washed down to the pier and the road area under the bridge, while washing the cantilever arm with light.

The 45° beam angle highlighted the outline of the bridge and took the lighting effects of the road and water surface into account; Luminaires were equipped with a professional optic lens to ensure the visual comfort of driving at night; RGBW color mixing under control of DMX512 system could adapt to different lighting scenes setting. The color of luminaires was customized to be more harmonious with the appearance of the bridge.

Qingdao North Railway Station, located in Licang District, is the second largest railway station in Qingdao. It forms the four major transportation hubs around Jiaozhou Bay in Qingdao with Qingdao Station, Hongdao Station and Qingdao West Station.

LiteMagic’s linear wall washer Brush-SW011 were installed inside the grille on the keel of the station’s waiting hall, with a total of more than 5600 sets.

The high-power wall washers which illuminated through the grille provided a bright enough indoor lighting without causing obvious glare.

The luminaires were equipped with 2200K and 6500K light source to enable color temperature to be adjusted; professional PMMA lens and 45° beam angle ensured uniform and soft floodlight; hidden power supply and wiring arrangement ensure the structure of the building keep clean; Adjustable brackets and safety ropes ensured the fixation and safety for installation.

The downward light from Brush-SW011 in the waiting hall complemented other indoor lighting systems, providing a brighter and softer environment for the whole space.
