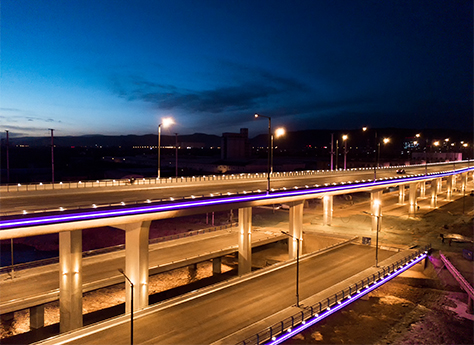

Over 4,500-meter-long RGB linear pixel light LM-EW204, which are used to outline the line direction of the bridge were installed on the Huangshui Bridge guardrail. The opal white PC cover ensures the uniformity of light mixing on illuminated surface. Under control by DMX512, EW204 greatly enriches the expressive power of the light and increases the attraction of the bridge.

The high-power dot light LM-DW328 are firmly installed on the upper part of the outer side of the bridge and guardrail, with equal spacing, looks like the pearls on the ribbon, making the circuitous bridge more rhythmic. LM-DW328 are equipped with opal white spherical PC cover, which enables uniform light mixing and soft illuminance. Coupled with 4000K neutral white LED, the overall lighting brings good performance and visual comfortable.

LM-SW011 is installed along the curved surface of the bridge bottom with its body custom-painted in gray, which is consistent with the color of the bridge. Its 20° * 60° beam angle can achieve large-area projection and wall washing effects with uniform and soft light. The 1800K warm yellow light covers the curved surface, which is close to the light color of the high-pressure sodium installed on the viaduct and the road under the bridge. So that the functional road lighting around the bridge and the decorative lighting is highly harmonious and integrated.

Except functional lighting, the lighting project of Huangshui Road Viaduct also achive decorative lighting through the application of LED RGB linear pixel lights and dot light, which not only makes the bridge itself more beautiful, but also makes Huangshui Bridge become a new business card for the city's night scene lighting, allowing the city to be presented in front of people with a brand new image.
