The Chaobai River Fuxing Bridge has a main span of 155 meters and a main tower of 50 meters high. It is the largest cable-stayed bridge in Shunyi District and the first double-tower and double plane cable-stayed bridge in Beijing. The bridge has dual 2-lanes carriageway. The main bridge adopts a three-span and symmetrical double-tower, and double plane cable-stayed bridge design.

Construction of the bridge started in March 2016 and started operation in early 2018.

Chaobai River Fuxing Bridge adopts dynamic lighting design, all luminaires are controlled by DMX system, and are divided into three intelligent modes: functional mode, festival mode, and weekdays mode. The functional mode is set for road lighting. The lighting in the weekdays mode is comfortable and pleasant, and the lighting in the festival mode becomes dynamic and full of festive atmosphere. 3 lighting mode create a pleasant and distinctive night view of the Chaobai River.

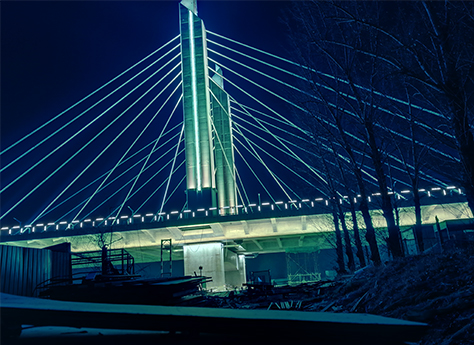

The 3.5° long-distance-projection floodlight LM-PW008 and the 9° LM-PW009 were applied to project the cable from the bottom to the top. Both LM-PW008 and LM-PW009 have precise adjustment aiming designs, effectively realizing ultra-long-distance precise projection of cables of different lengths.

On the outside of the main tower of the bridge, a "light belt" composed of linear pixel light extending from top to bottom creates an upright posture. The 9° large- scale floodlight LM-PW009 surrounding the main tower illuminates the 50-meter-high main tower brightly, making the main tower more majestic and becoming the visual center of the bridge.

The guardrails on both sides are embedded with LiteMagic’s linear light LM-EW203. It adopted special production method: reserved holes according to the size of linear light when the guardrail was produced, and then installed the linear light on the construction site. After installation, LM-EW203 integrated with the handrail to form a unique "self-luminous guardrail".

At the edge of the bridge, LM-SW015 was chosen to brighten the cantilever beam structure, which makes the bridge looks more three-dimensional. Precise adjustment of different kinds of luminaries keeps the color of the cantilever light at the bottom of the bridge consistent with that of the bridge.

The shimmering Chaobai River is integrated with the bridges and the trees on both sides of the river. Lighting creates a vibrant, quiet and vivid night lighting landscape of the Chaobai River.
