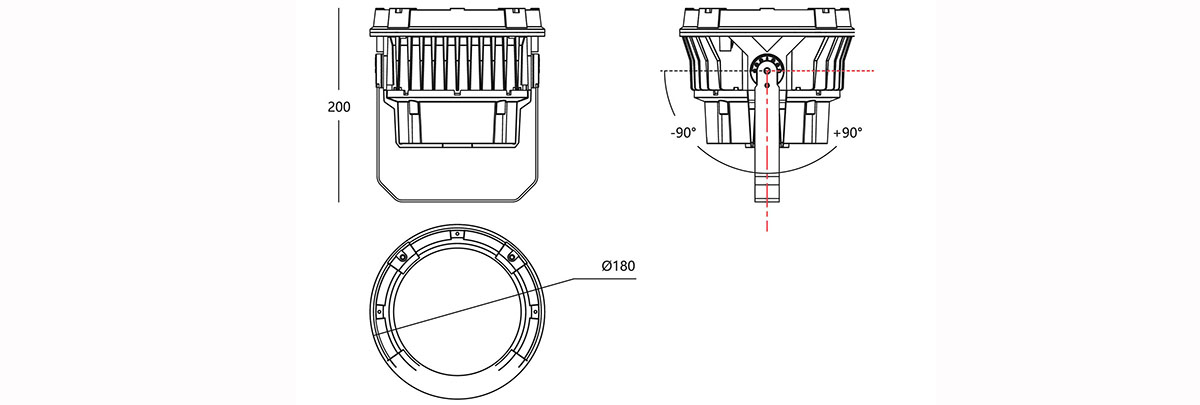

Dimension(mm):

  180(L)*180(W)*200(H)

Brand of Light Source:

CREE/OSRAM

Light Color

2700/3000/4000/5000K,3R3G3B,2200~6500K,2R2G2B2W,3R3G3B3W,4R4G4B

Power

Standard version:
5pcs：12W
9/8pcs：18W
9pcs：21W
8pcs：18W
12pcs：24/27W

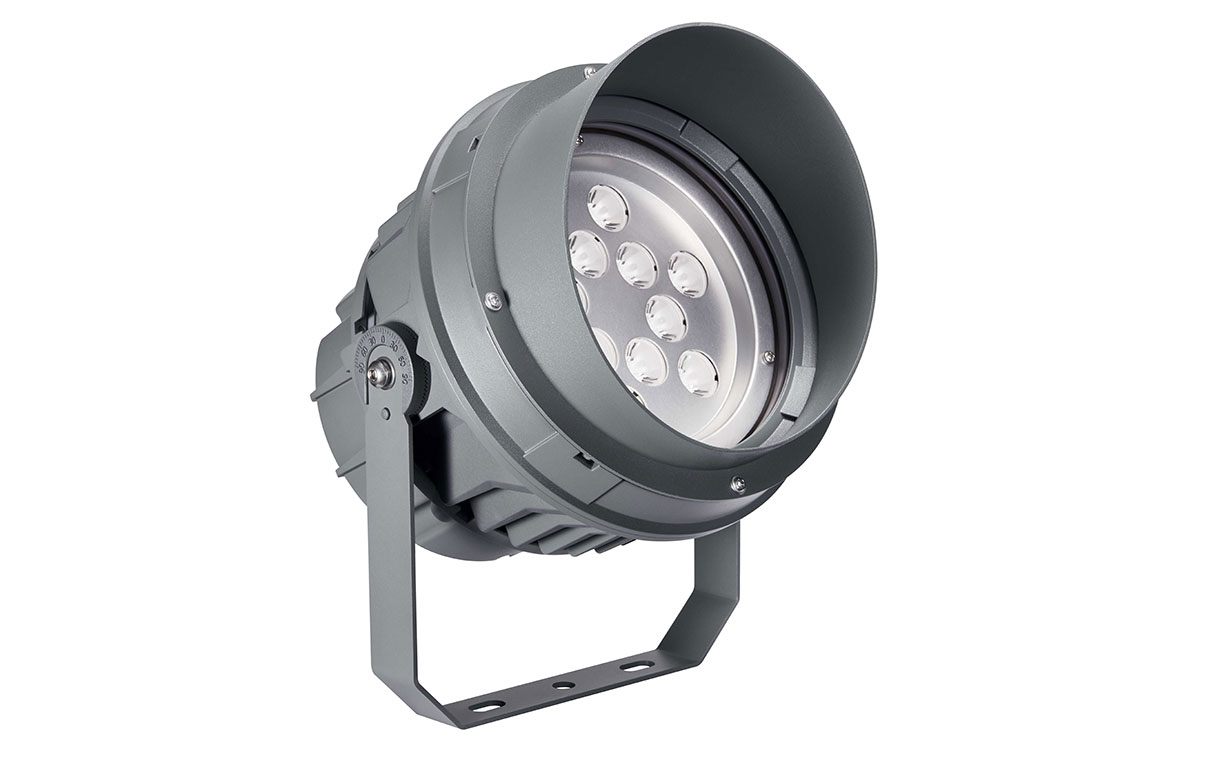

Anti glare version:
9pcs:21W
18pcs:18W
15/16pcs:36W

CRI（Ra):

80/70(>5000K)

SDCM:

≤5SDCM

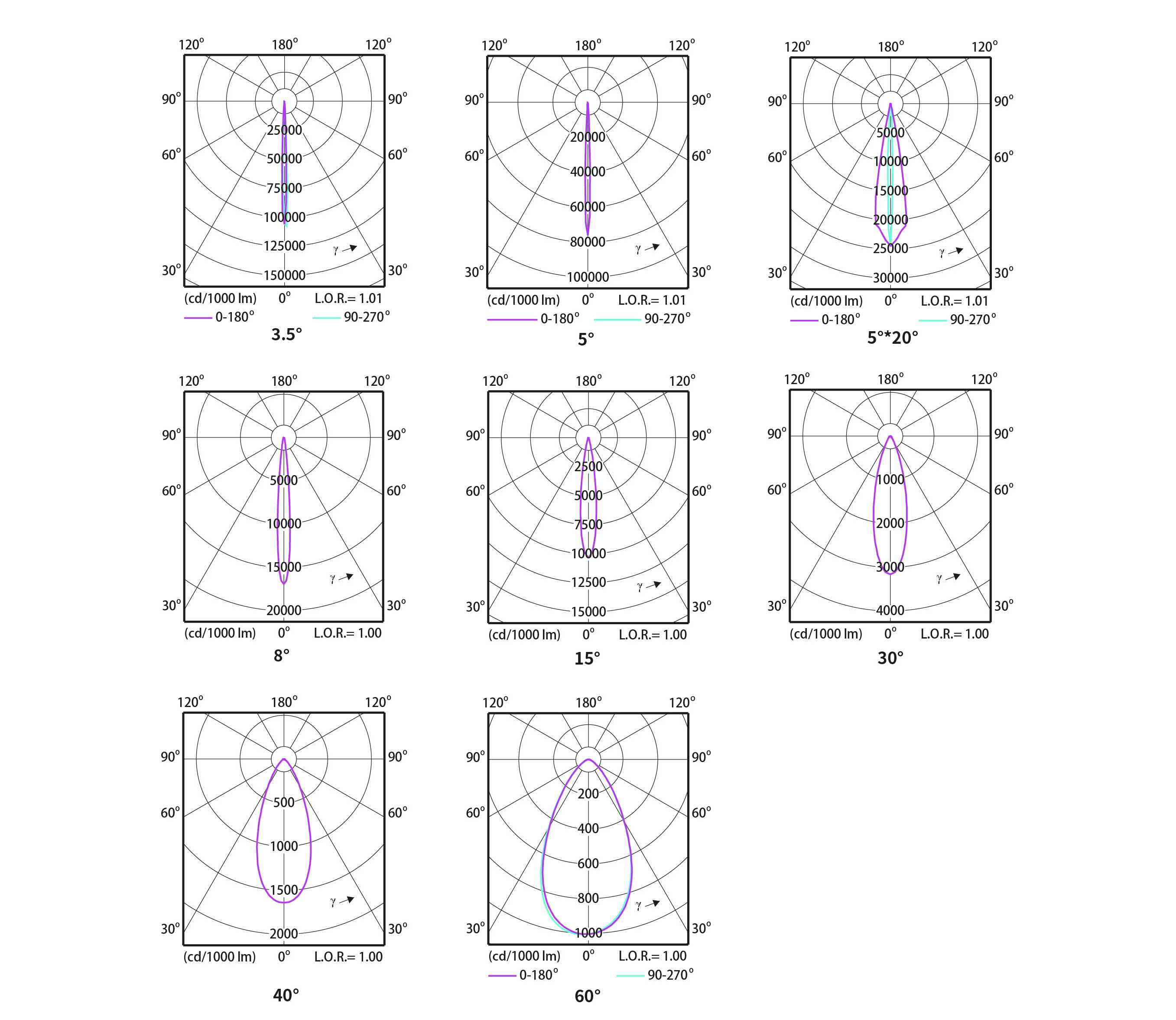

Beam Angle:

3.5°/5°/5×20°/8°/15°/30°/40°/60°

Input voltage:

DC24V/AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight:2.3KG，Materials：Die-cast aluminum+Ultra-white transparent tempered glass，Color：RAL7012

Temperature Range:

-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66

IK06

Windward Area（max m²）:

0.03

Environmental Certification:

ROHS

Certification:

CQC

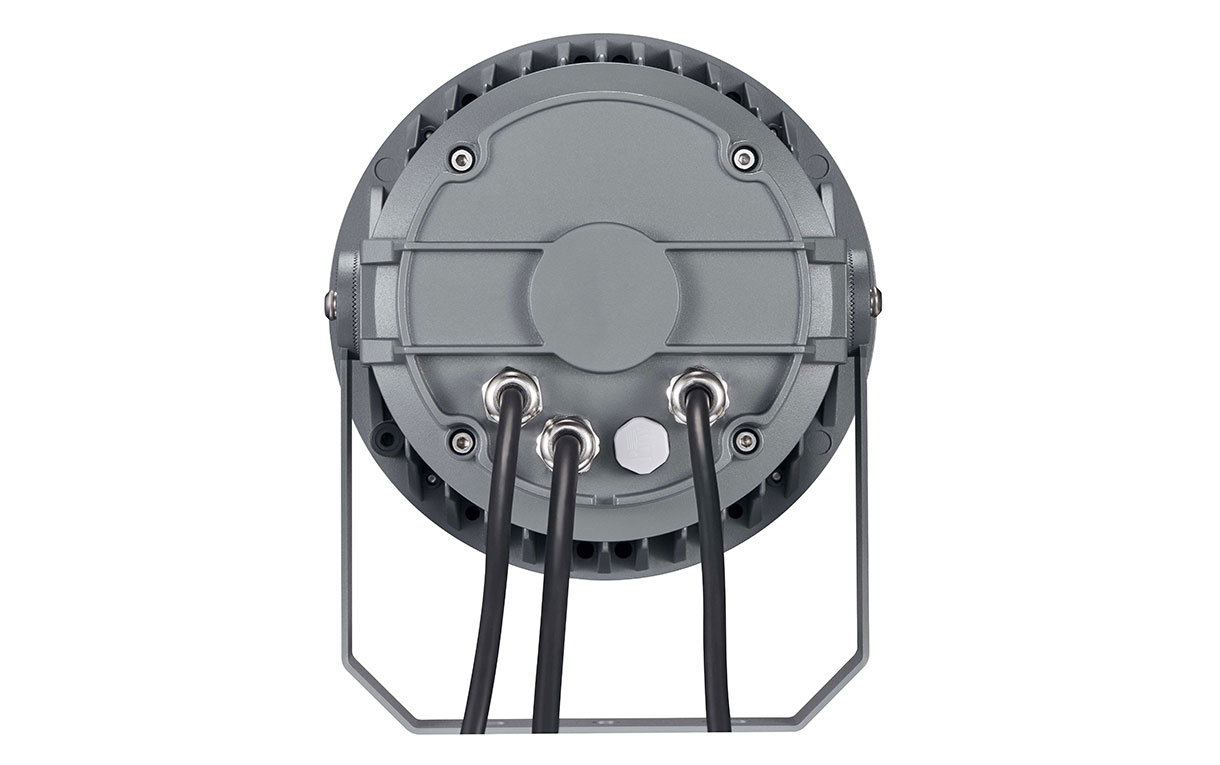

Cable:

High voltage：3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）；3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm,4x0.5mm2,with IP66&IP67 cable glands（DMX/RDM）

Low voltage：2 core round-wire cable exposed 50cm,2x1.0mm2 withIP66&IP67cable glands（On-Off）;5 core round-wire cable exposed 50cm, 2x1.0mm2 + 3x0.3mm2 with IP66&IP67 cable glands（DMX/RDM）
