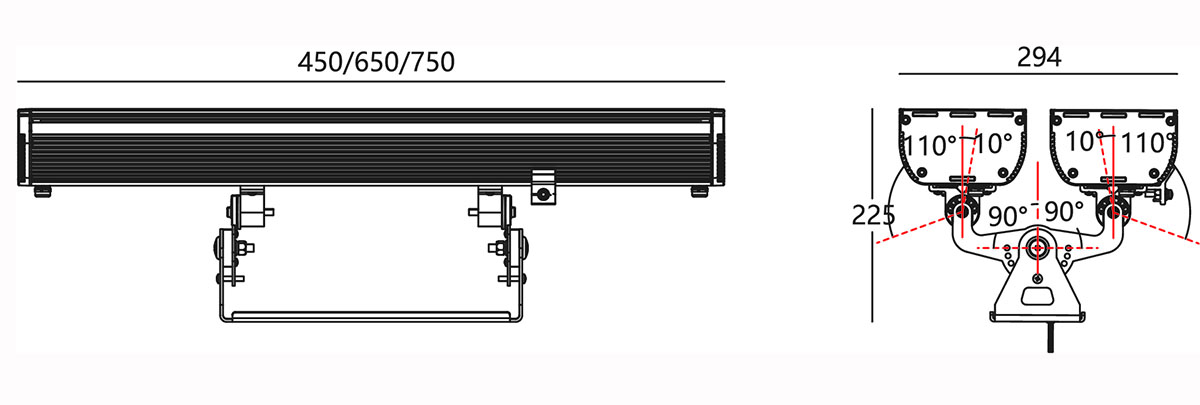

Dimension(mm):

450(L)*293(W)*225(H),650(L)*293(W)*225(H),750(L)*293(W)*225(H),450(L)*294(W)*225(H),650(L)*294(W)*225(H),750(L)*294(W)*225(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

2700/3000/4000/5000K/RGB/RGBW

Power:

48pcs：120W

72pcs：160/180W

96pcs：200/240W

120pcs：240W

144pcs：288W

CRI （Ra):

80/70(>5000K)

SDCM:

≤5SDCM

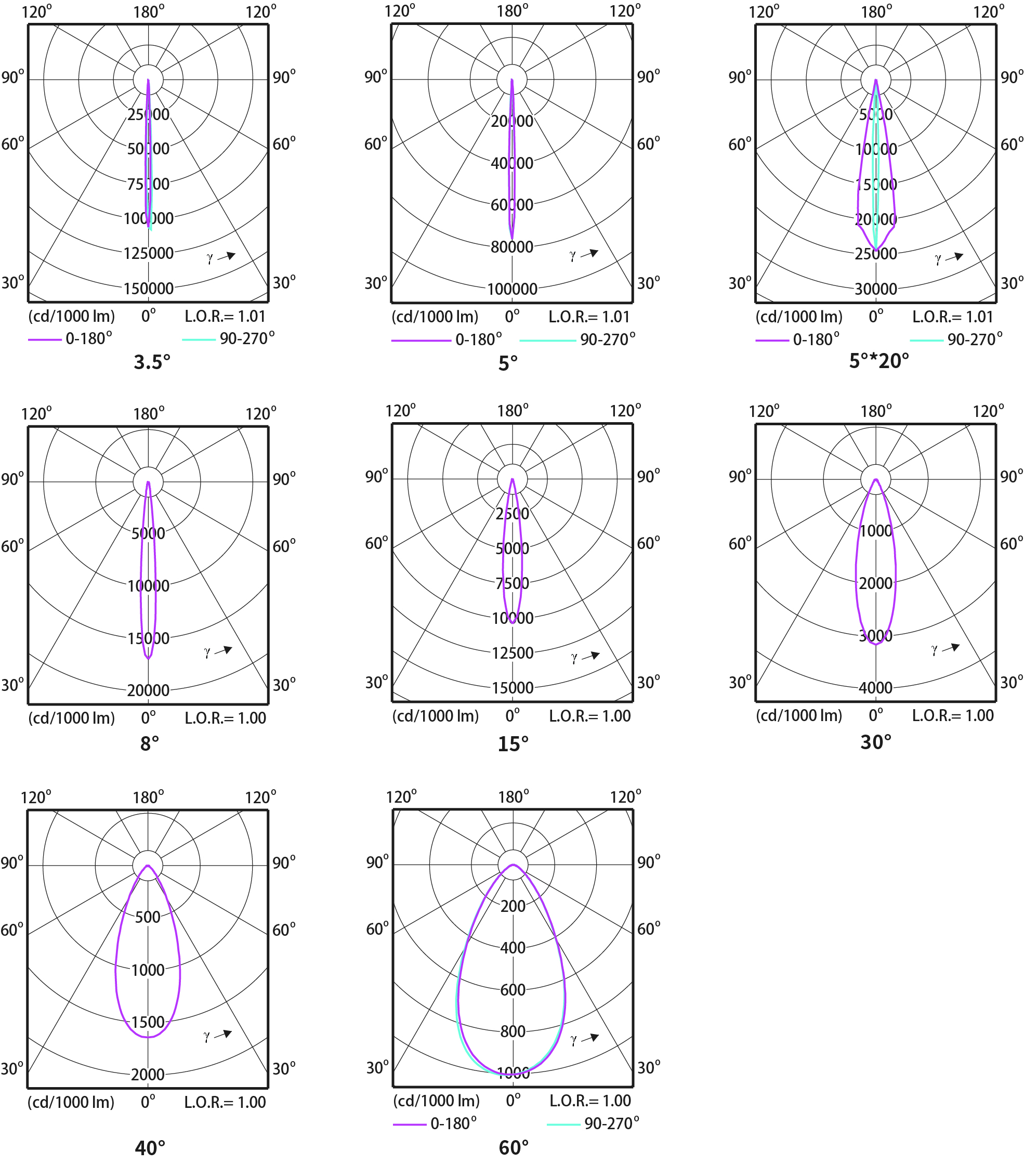

Beam Angle:

3.5°/5°/5×20° 8°/15°/30°/40°/60°

Input voltage:

AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight:12.5KG/15KG/17KG,Materials：Extruded aluminum+Die-cast aluminum end cap+Ultra-white transparent tempered glass,Color：RAL7012

Temperature Range:

-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66

IK06

Windward Area（max m²）:

0.24

Environmental Certification:

ROHS

Certification:

CQC

Cable:

3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）

3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IP67cable glands（DMX）
