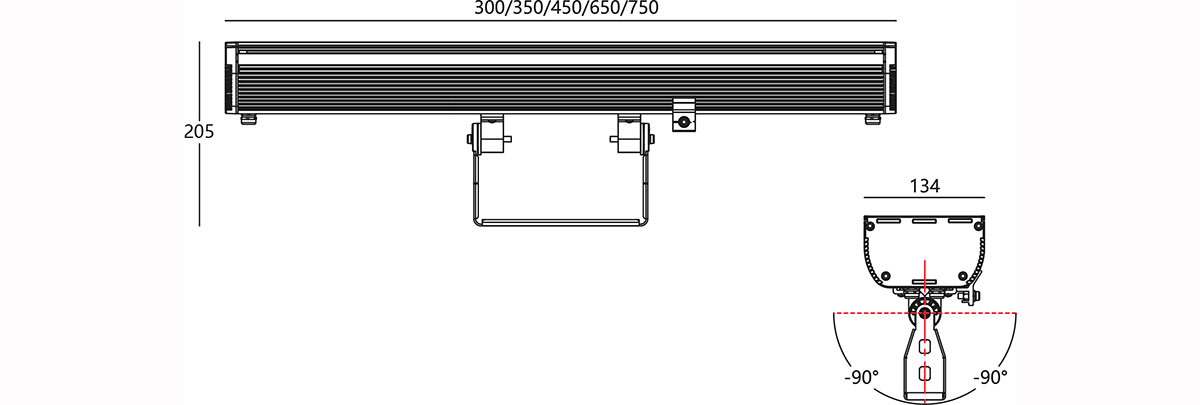

Dimension(mm):

190(L)*134(W)*149(H),300(L)*134(W)*205(H),350(L)*134(W)*205(H),450(L)*134(W)*205(H),650(L)*134(W)*205(H),750(L)*134(W)*205(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

2700/3000/4000/5000K/RGB/RGBW

Power:

12pcs：12/15/18/24W,15/27W

18pcs：40/45W

18/16pcs：36W

18/16pcs：40W

24pcs：50W

24pcs：60W

36pcs：60W

36pcs:80/90W

48pcs：100W

48pcs：120W

60pcs：120W

72pcs：144W

CRI （Ra):

80/70(>5000K)

SDCM:

≤5SDCM

Beam Angle:

3.5°/5°/5×20° 8°/15°/30°/40°/60°

Input voltage:

DC24V/AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight:2.1KG/3KG/5KG/6KG/7KG/9KG，Materials：Extruded aluminum+Die-cast aluminum end cap+Ultra-white transparent tempered glass，Color：RAL7012

Temperature Range:

-35℃~+50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66

IK06

Windward Area（max m²）:

0.117

Environmental Certification:

ROHS

Certification:

CQC

Cable:

Low voltage：2 core round-wire cable exposed 50cm, 2x1.0mm2（On-Off）;2 core round-wire cable exposed 50cm, 2x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IP67cable glands（DMX）

High voltage：3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）;3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IP67cable glands（DMX）
