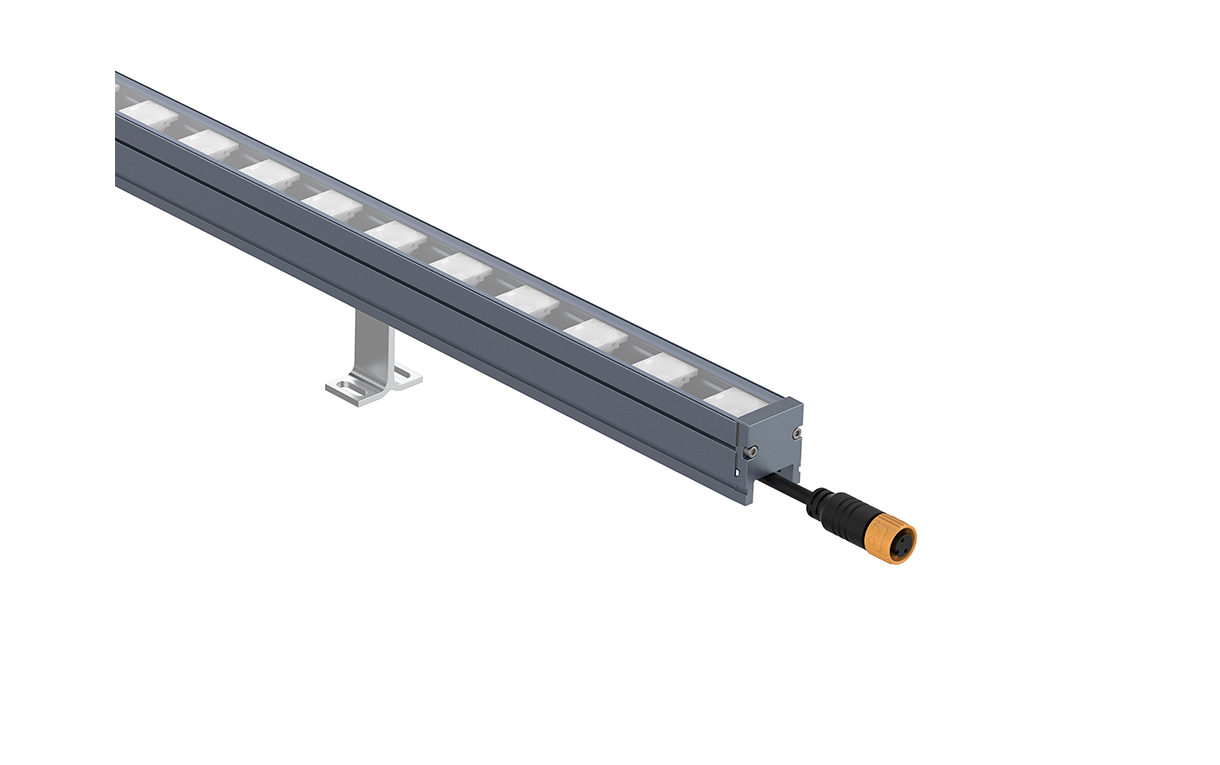

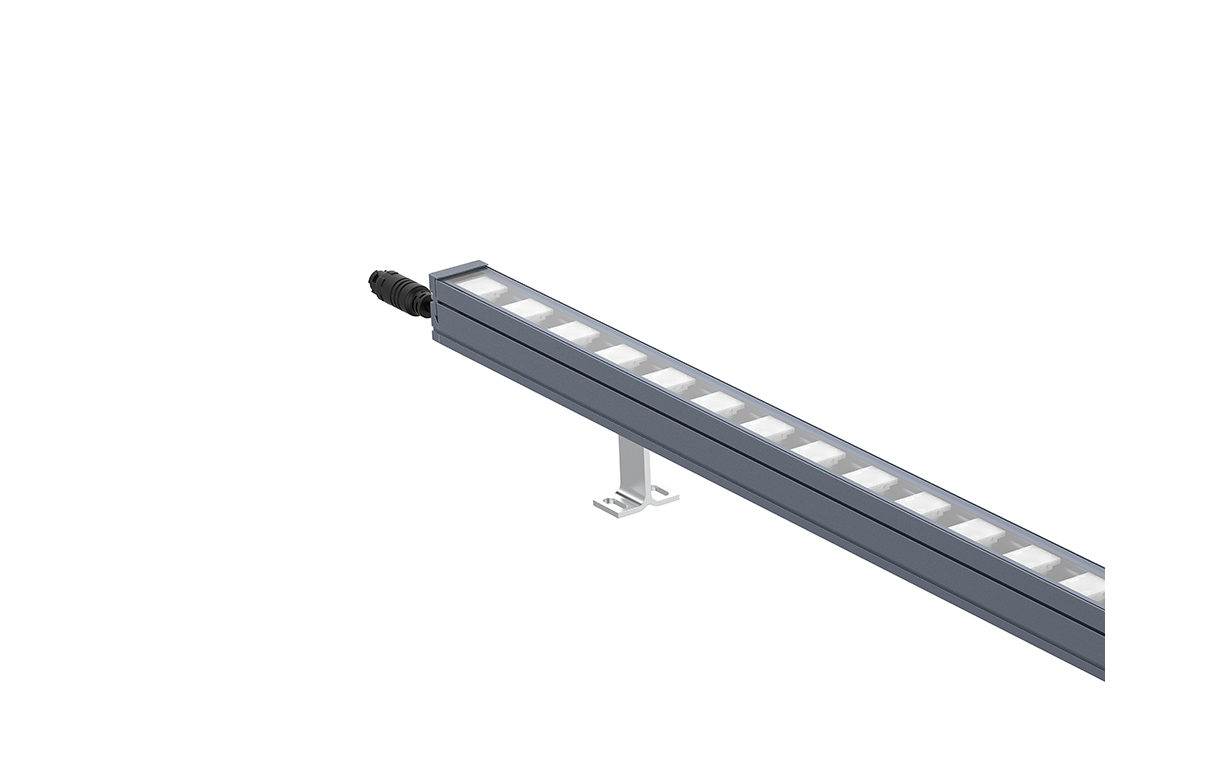

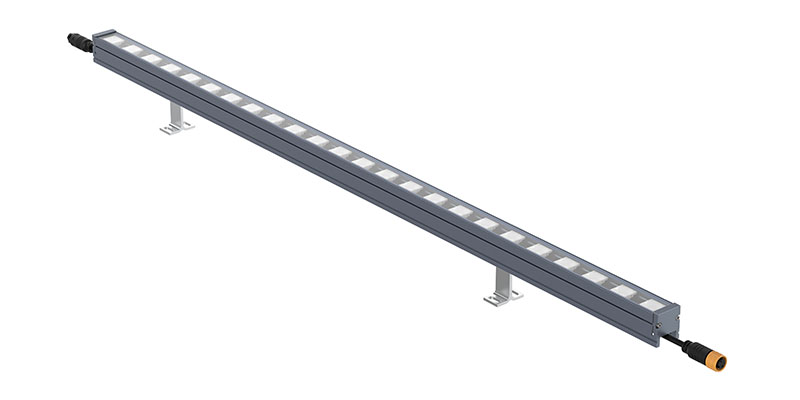

iGrazer-W6306

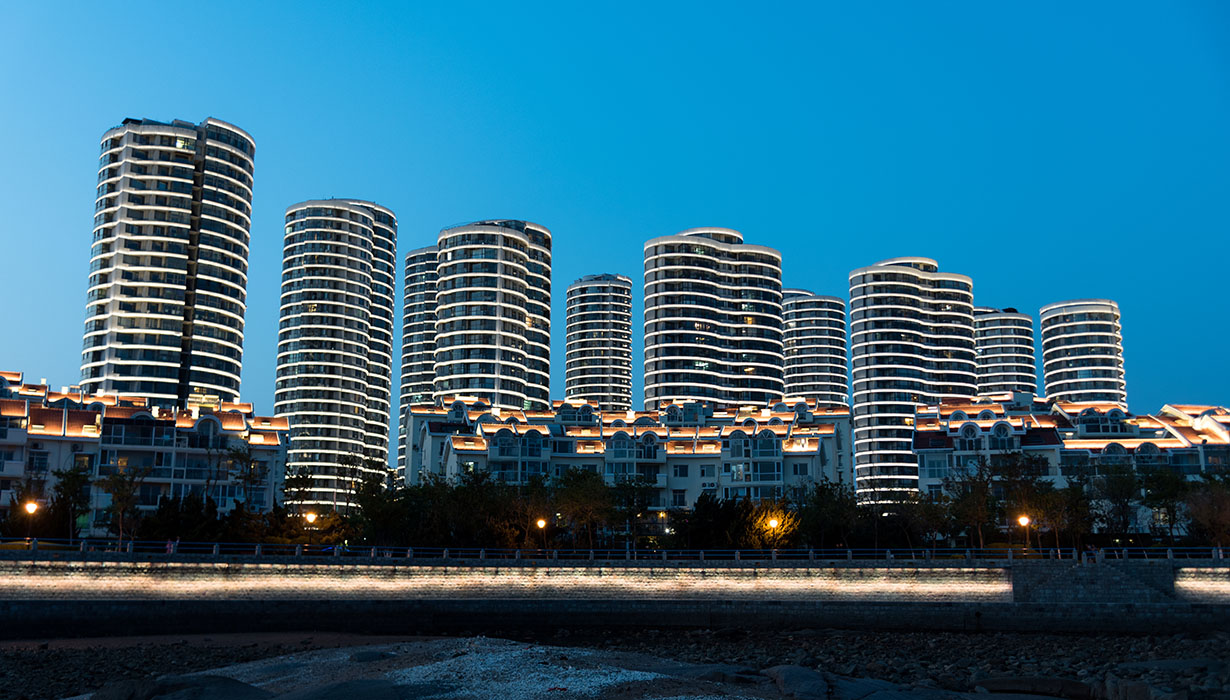

It is a basic small and medium-sized outdoor monochrome and polychrome linear lighting system designed to realize the application of building facades, such as wall washer,grazer. Through the combination of different power, light color, light distribution, etc., it can effectively meet the various market requirements; Consistent appearance design throughout the whole series; Different standard or customized mounting brackets can be selected to flexibly meet different installation and adjustment requirements(such as ±95°); The leaking design of the end cap ensures full angle installlation; Optional standard or customized shading parts/accessories to ensure visual comfort; Automatic processing and manufacturing enables fast delivery. Structural waterproof and flush end cap wiht drainage holes to ensure the waterproof performance when inverted installation; IP66.

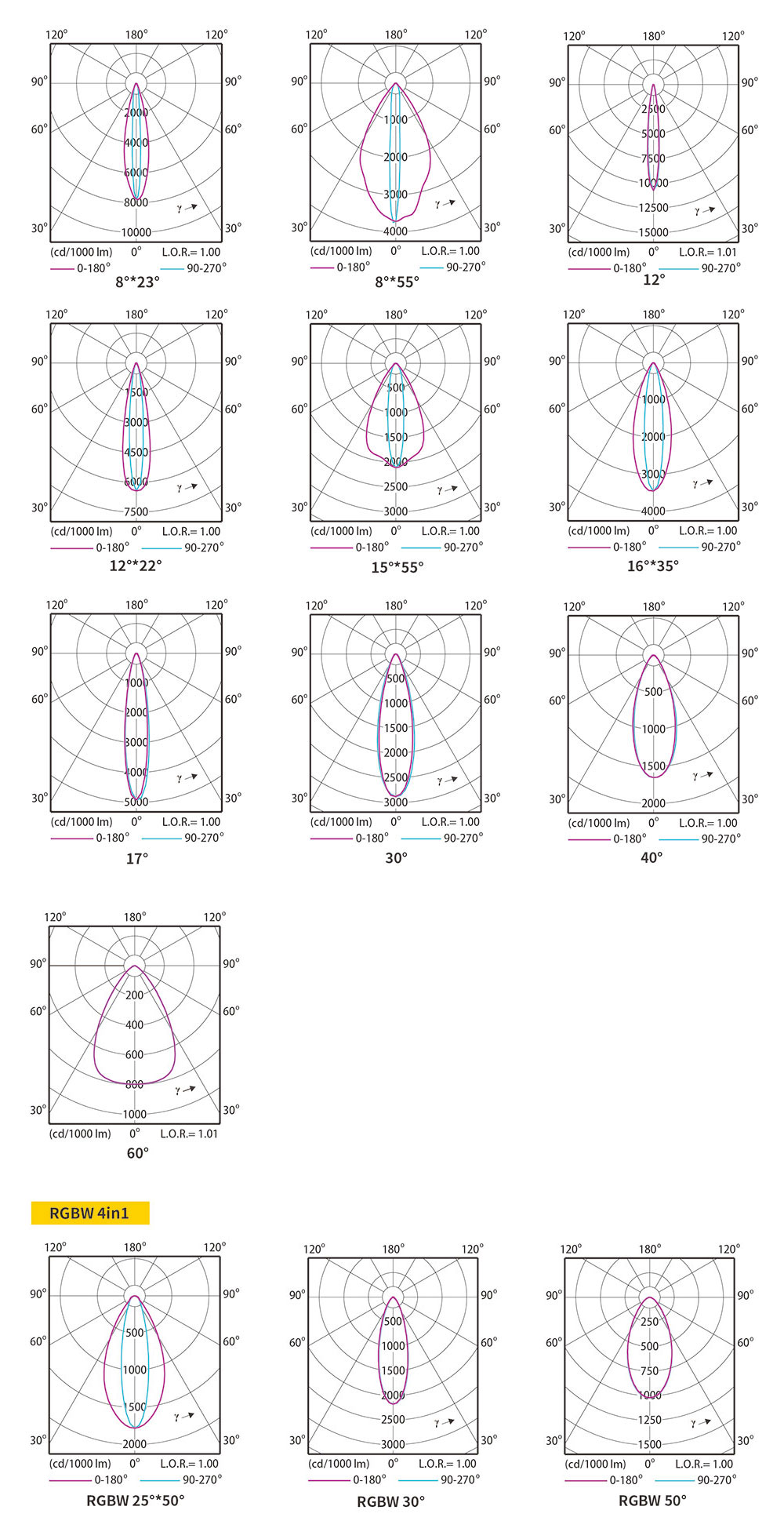

Light Distribution

Technical Data

Dimension(mm):

1000(L)*32(W)*80(H),500(L)*32(W)*80(H),300(L)*32(W)*80(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

2700/3000/4000/5000K,RGBW(3000/4000/5000/5700/6500)

Power:

18pcs:12/15/18W

24pcs:24W

18pcs:18/24W

9pcs:6/7.5/9W

12pcs:12W

9pcs:9/12W

6pcs:4/5/6W

8pcs:8W

6pcs:6/9W

CRI (Ra):

80/W70

SDCM:

≤5SDCM

Beam Angle:

12°/17°/30°/40°/60°/16X35°/12X22°  12°/17°/30°/40°/60°/16X35°  30°/50°/25X50°

Input voltage:

DC24V

Control:

DMX or ON/OFF

Channel:

1/2/6  1/2/4  1/3  1/2  1

Appearance:

Weight:1.2/0.6/0.4KG,Materials:Extruded aluminum+Die-cast aluminumend cap+Ultra-white transparent tempered glass,Color:RAL7012

Temperature Range:

-35℃ to 50℃(Starting),-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:(@50℃)

≤65

Protection Grade:

IP66

IK06

Windward Area(max m²):

0.057

Environmental Certification:

ROHS

Certification

/

Cable:

2 core round-wire cable exposed 15cm, 2x1.5mm2 withIP66&IP67cable glands(On-Off)

5 core round-wire cable exposed 15cm, 2x1.5mm2 + 3x0.25mm2 withIP66&IP67cable glands(DMX)



Product Feature

Dimensions
