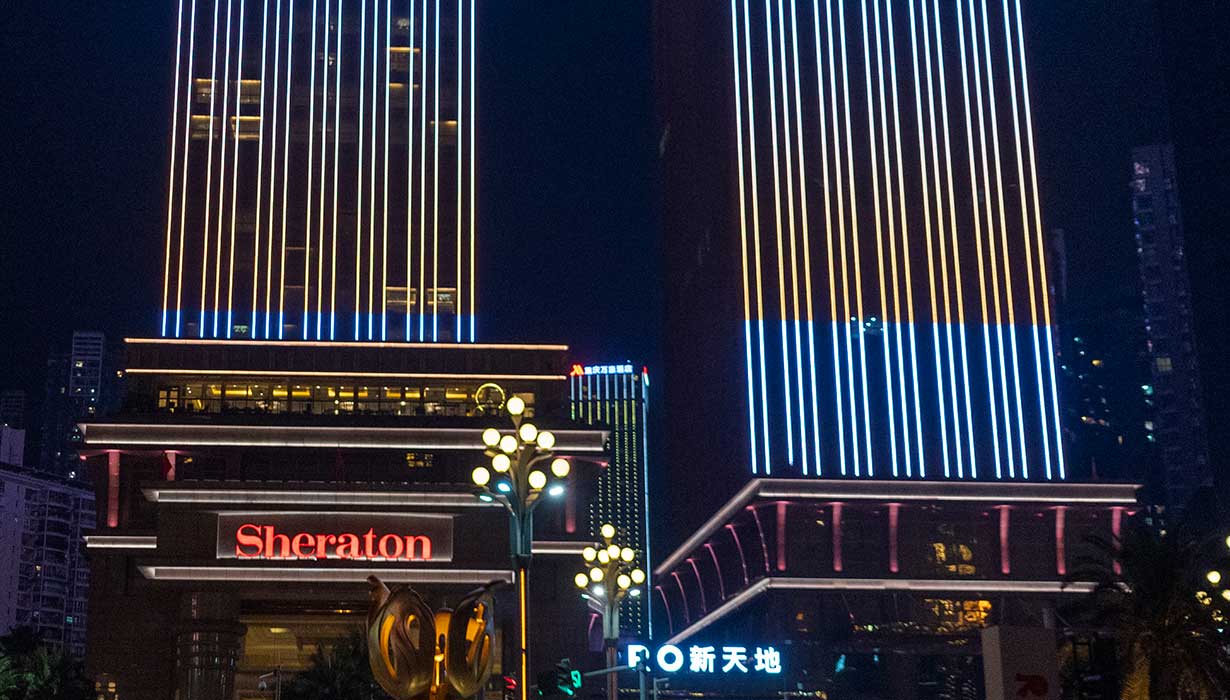

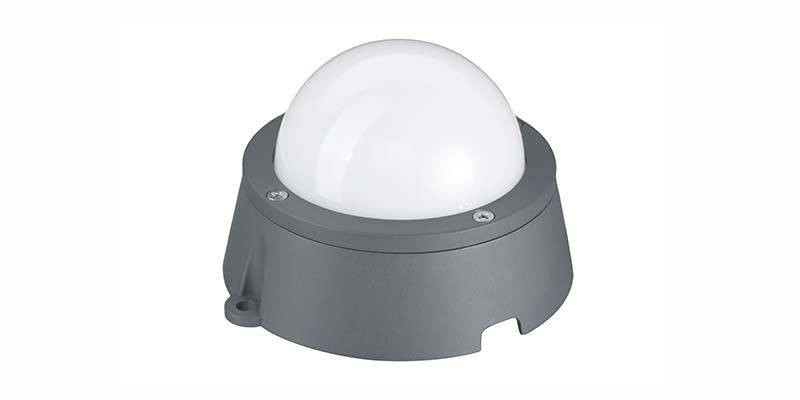

A basic high-power dot light system designed for facades. The appearance design is exquisite, which can be ideally combined with the curtain. Different translucent cover models (transparent flat cover, diamond spherical cover or opal spherical cover) are available to ensure multiple light mixing effects and overall surface luminance on the visible surface. With internal or third-party standard control system, a variety of lighting scenes can be realized.
|

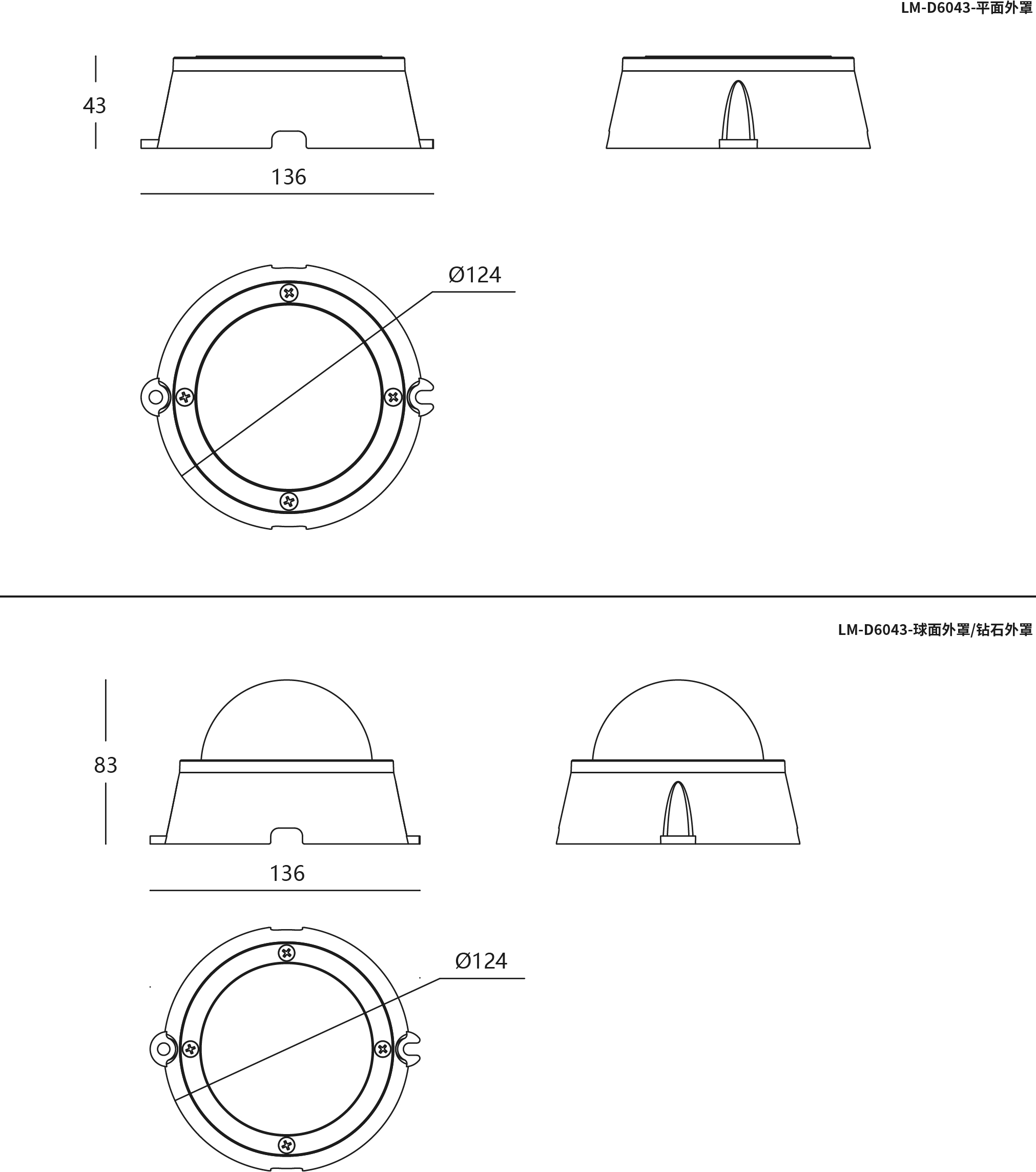

Dimension(mm): |
136(L)*124(W)*83/43(H) |
|
Brand of Light Source: |
OSRAM/CREE/LUMILEDS+OSRAM |
|
Light Color: |
2200/2700/3000/4000/5000K,RGB,RGBW(3000/4000/5000/5700/6500),2200K~6500K,RGBW（24RGB+12W） |
|
Power: |
36pcs：8W |
|
9pcs：8/9W |
|
|
12pcs：9W |
|
|
6pcs：9W |
|
|
CRI （Ra): |
80/70(mono white) |
|
SDCM: |
≤5SDCM |
|

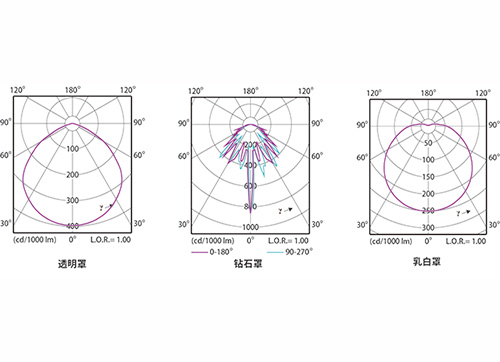

Beam Angle: |

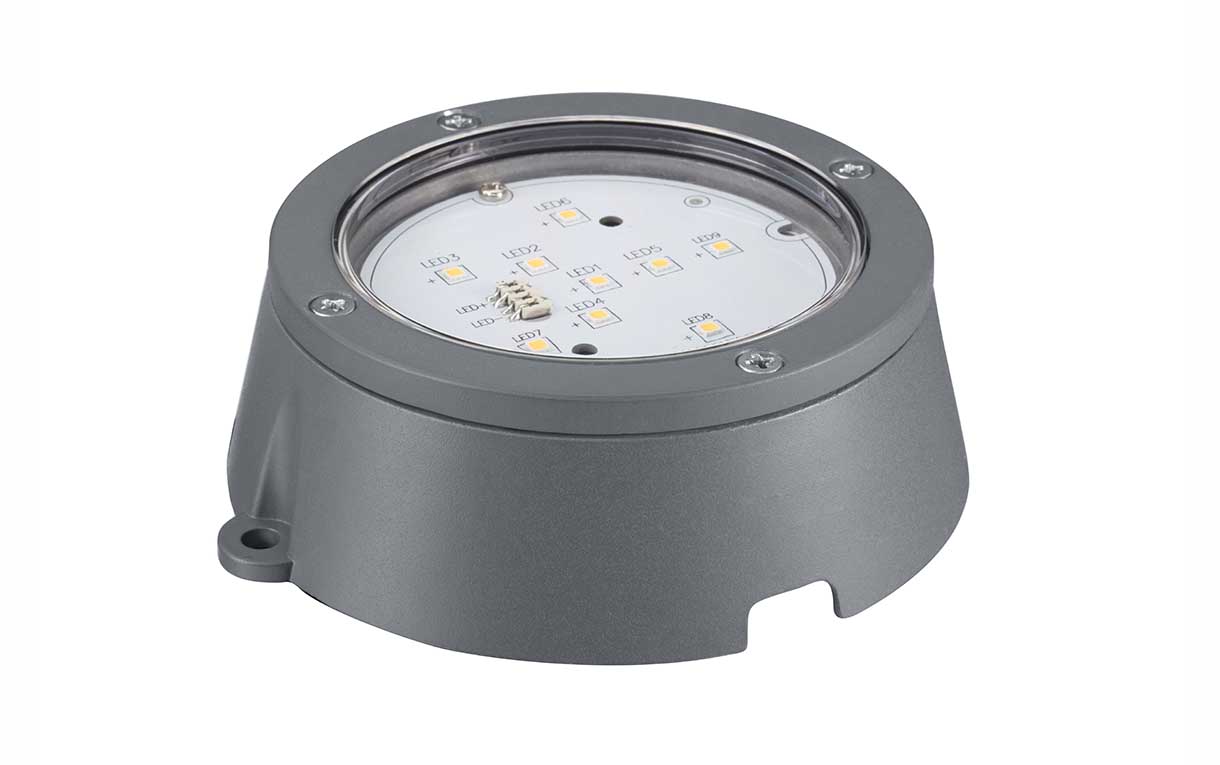

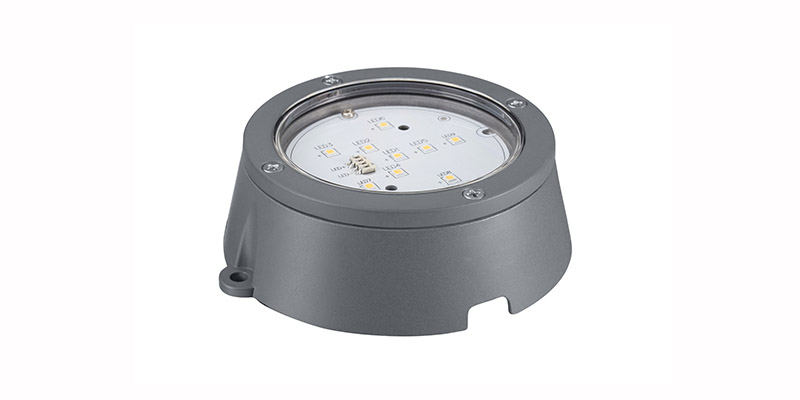

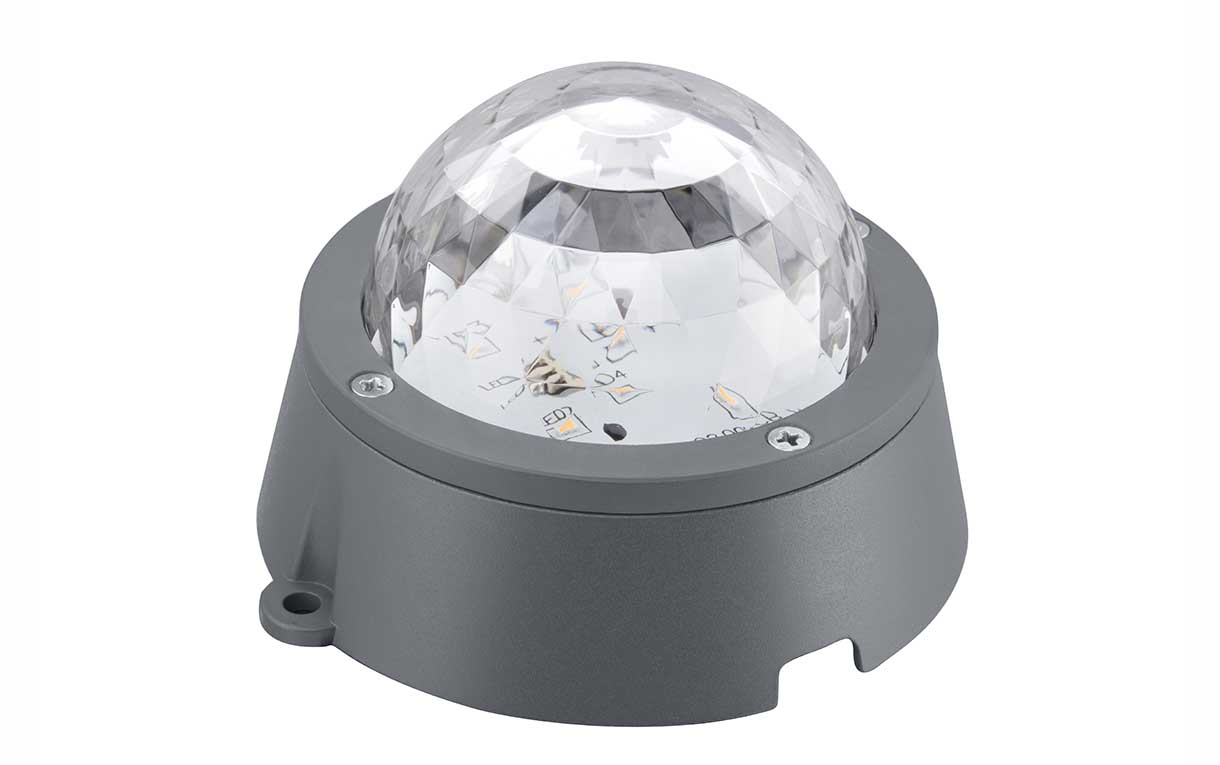

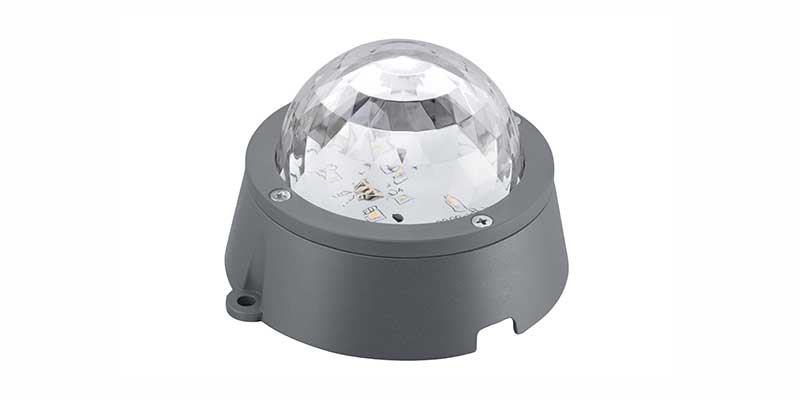

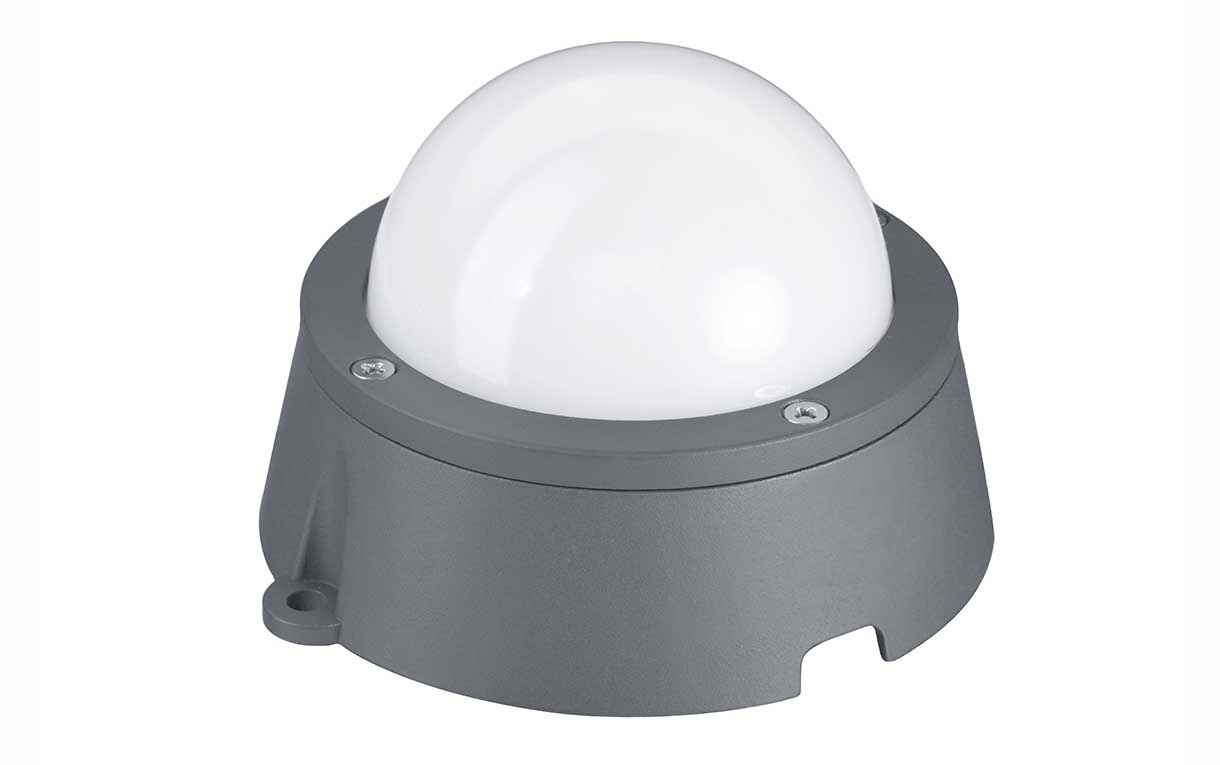

diamond global cover/opal global cover/transparent flat cover |
|
Input voltage: |
DC24V |
|
Control: |
DMX or ON/OFF |
|
Channel: |
1 |
|
Appearance: |
Weight:0.4KG，Materials：Die-cast aluminum+PClens， Color：RAL7012 |
|
Temperature Range: |
-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage) |
|
Surface Temperature:（@50℃） |
≤65 |
|
Protection Grade: |
IP66 |
|
IK06 |
|
|
Windward Area（max m²）: |
0.0077 |
|
Environmental Certification: |
ROHS |
|
Certification: |
CQC |
|

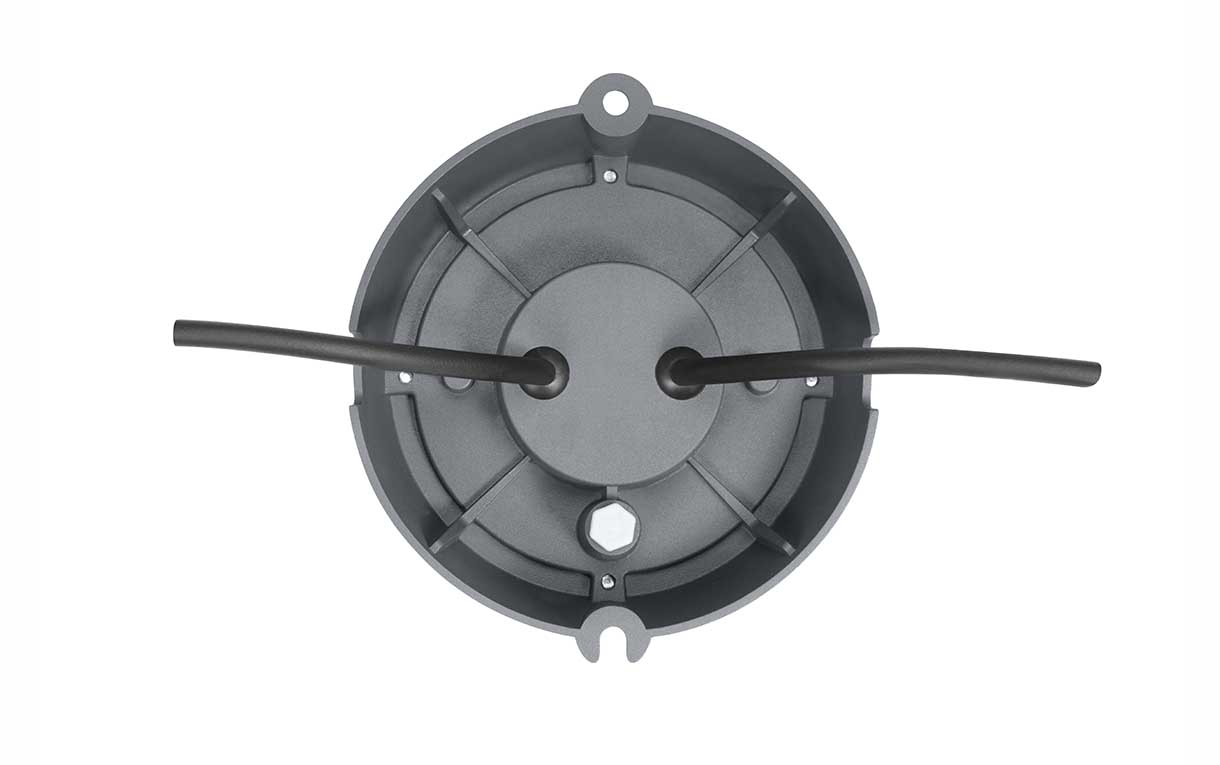

Cable: |
2 core round-wire cable exposed 30cm, 2x1.5mm2 withIP66&IP67cable glands（On-Off） |
|
5 core round-wire cable exposed 30cm, 2x1.5mm2 + 3x0.25mm2 withIP66&IP67cable glands（DMX） |
