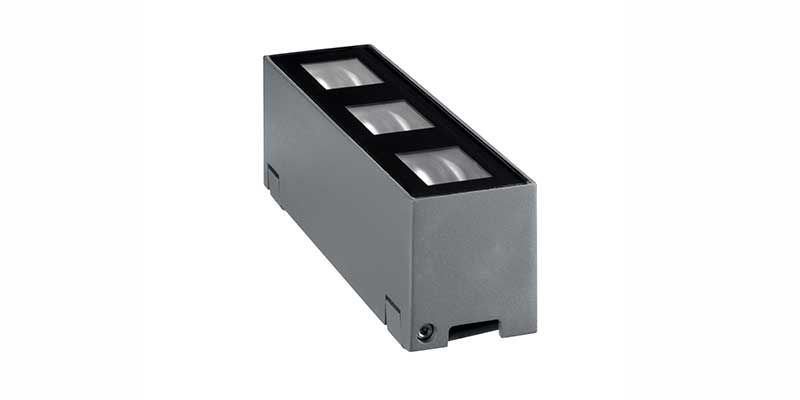

Blade-PW028

Professional outdoor structural lighting system designed for the inner edge outline of the frame structure, column and vault of the building facade. wiht Integrated appearance design, flexible adjustment function and precise controlled "light blade" distribution, it fully ensure visual comfort and suitable for frame structure of which height width ratios exceeding 1:1. With internal or third-party standard control system, a variety of lighting scenes can be realized.

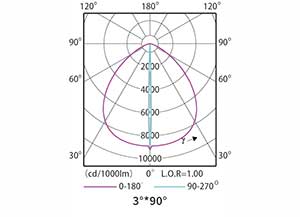

Light Distribution

Technical Data

Dimension(mm):

181(L)*51(W)*61.5(H)

Brand of Light Source:

LUMILEDS/OSRAM/LUMILEDS+OSRAM

Light Color:

2700/3000/4000/5000K,RGB,RGBW

Power:

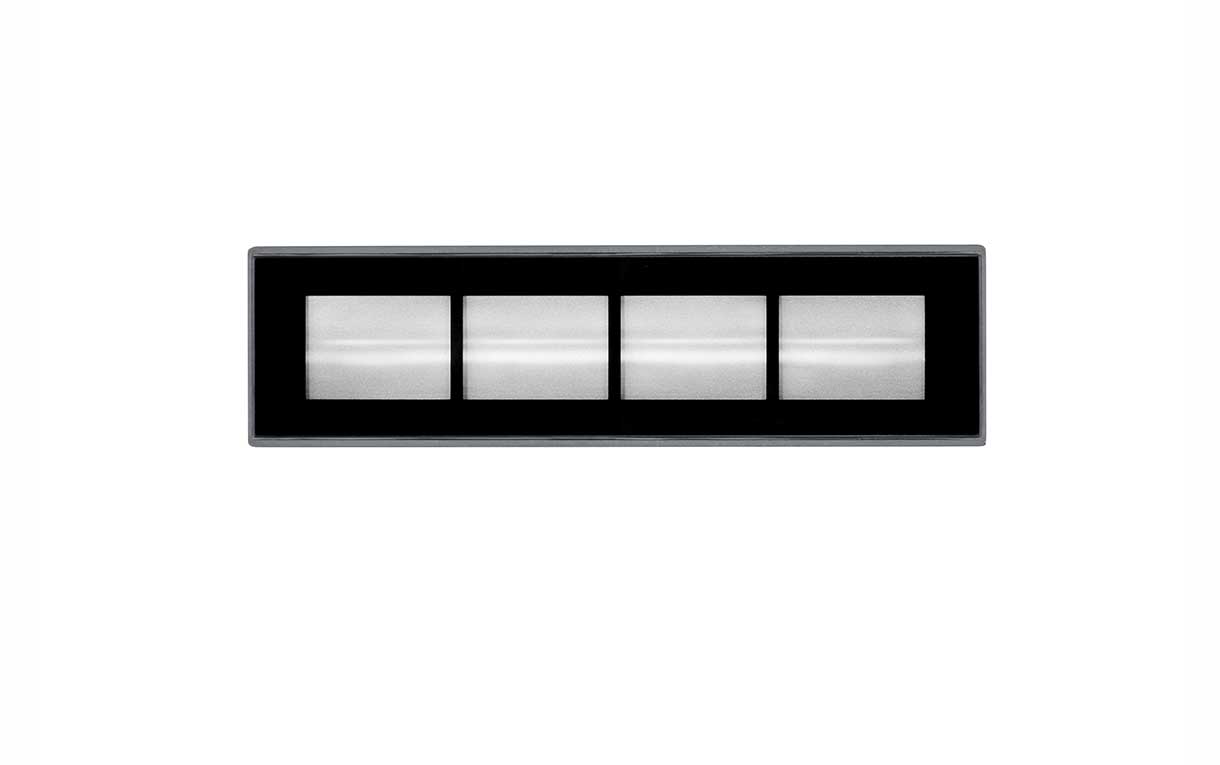

4pcs:10W

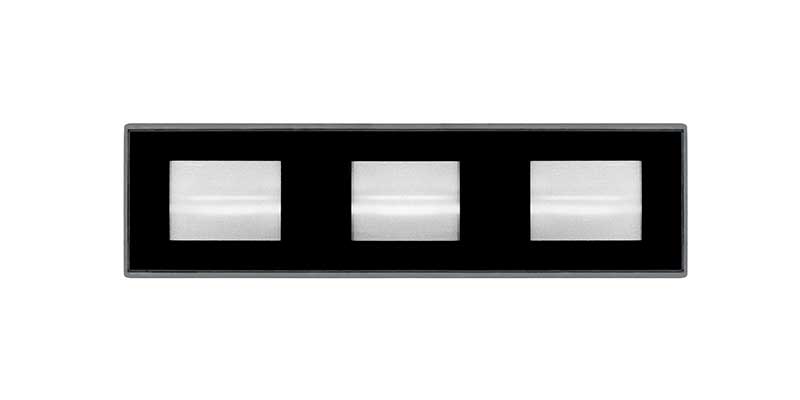

3pcs:7W

CRI (Ra):

80/70(>5000K)

SDCM:

≤5SDCM

Beam Angle:

3X90(half angle)

Input voltage:

DC24V

Control:

DMX  or  ON/OFF

Channel:

1

Appearance:

Weight:0.85KG,Materials:Die-cast aluminum+PClens, Color:RAL7012

Temperature Range:

-35℃ to 50℃(Starting),-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:(@50℃)

≤65

Protection Grade:

IP66

IK06

Windward Area(max m²):

0.014

Environmental Certification:

ROHS

Certification:

CQC

Cable:

2 core round-wire cable exposed 30cm, 2x1.5mm2 withIP66&IP67cable glands(On-Off)

5 core round-wire cable exposed 30cm, 2x1.5mm2 + 3x0.25mm2 withIP66&IP67cable glands(DMX)

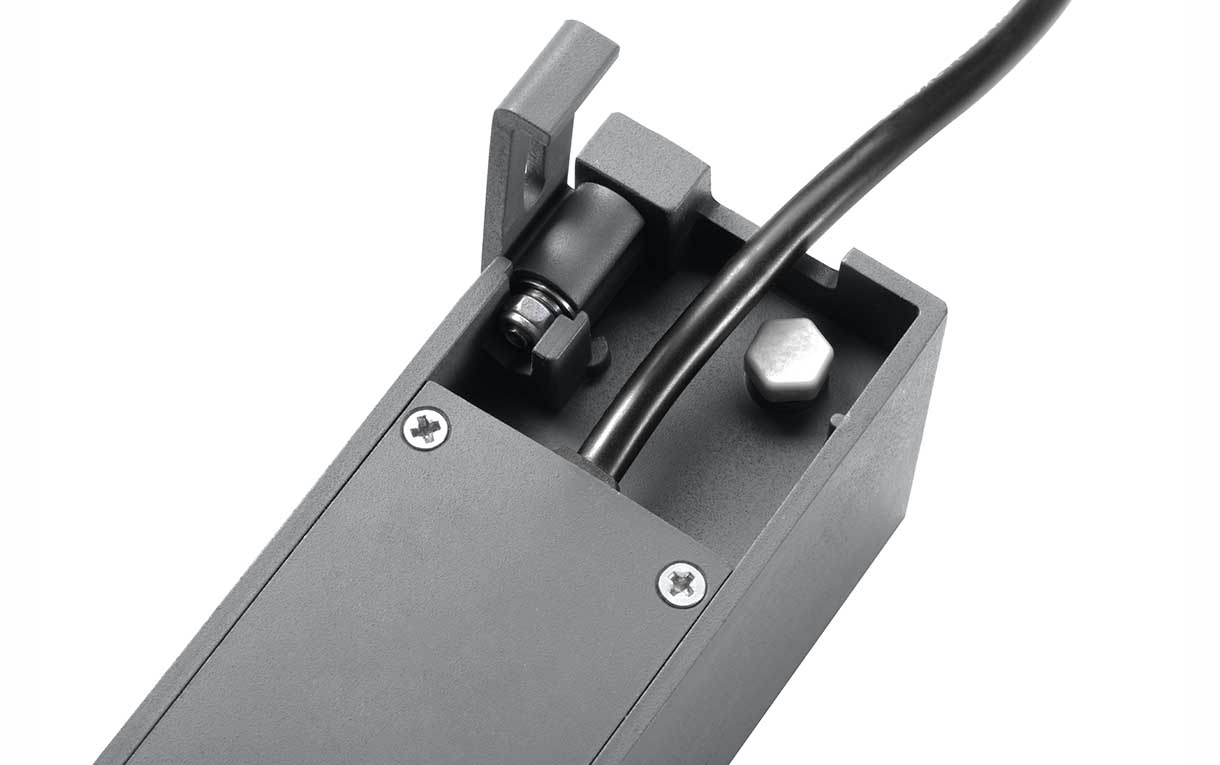

Product Feature

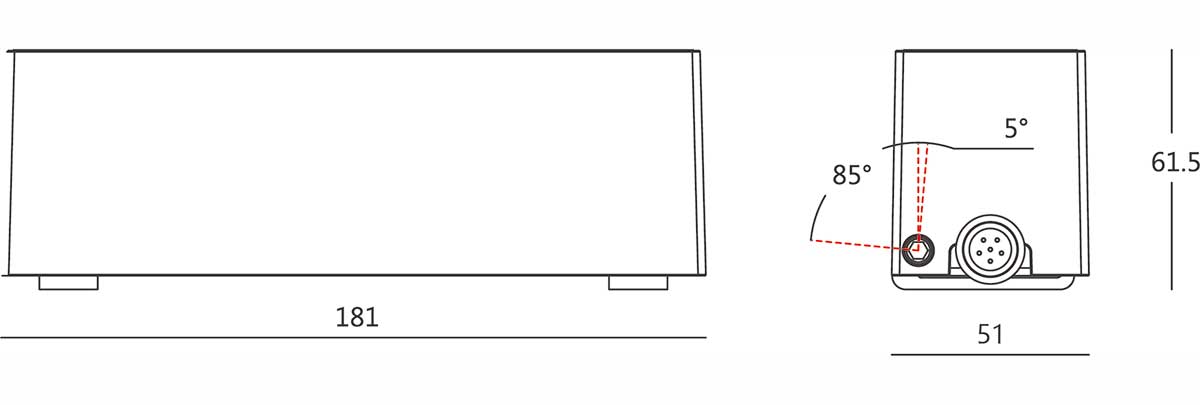

Dimensions
