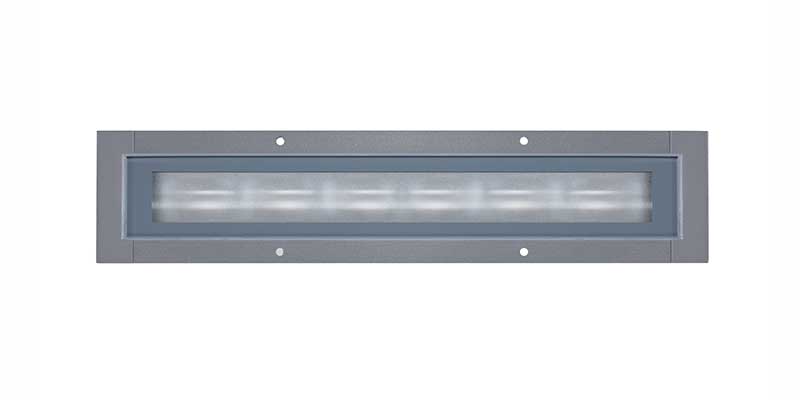

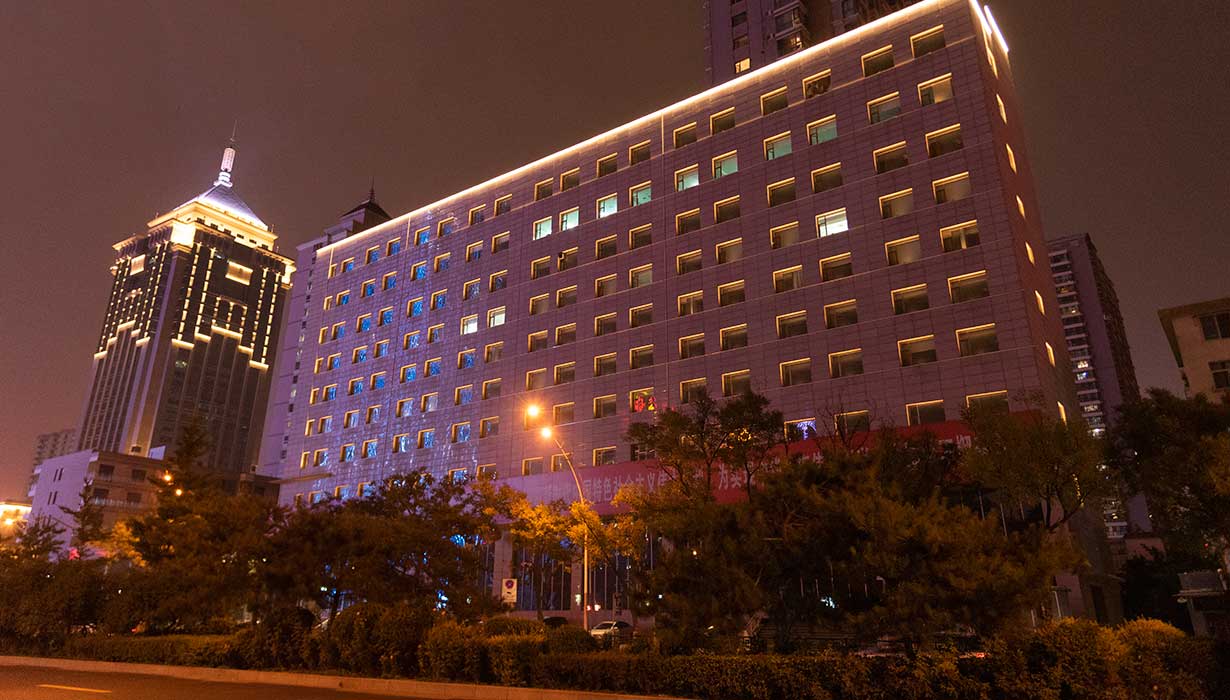

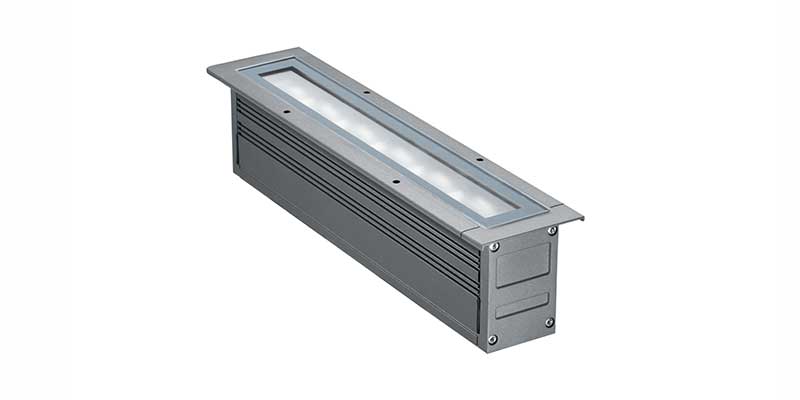

Professional outdoor structural lighting system designed for the inner edge outline of the frame structure, column and vault of the building facade. wiht Integrated appearance design, flexible adjustment function and precise controlled "light blade" distribution, it fully ensure visual comfort and suitable for frame structure of which height width ratios exceeding 1:1. With internal or third-party standard control system, a variety of lighting scenes can be realized.
|

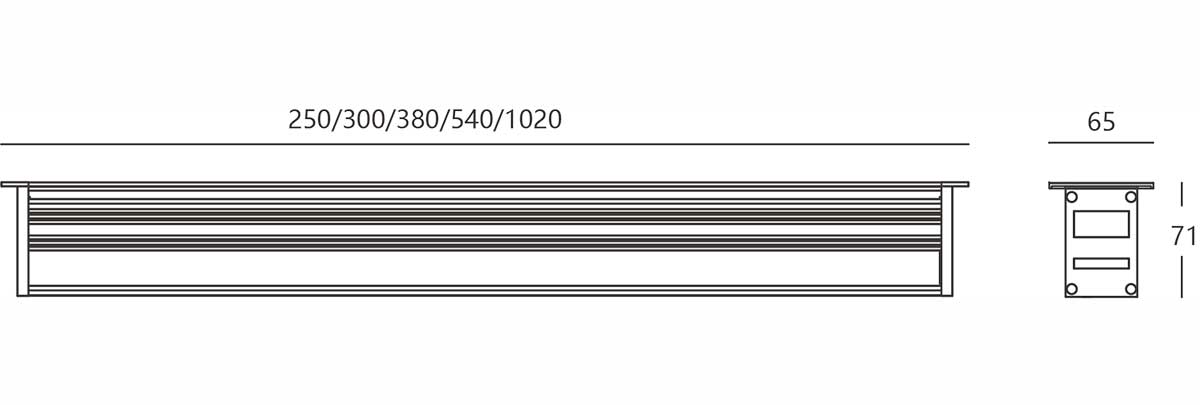

Dimension(mm): |
1020(L)*65(W)*71(H),540(L)*65(W)*71(H),380(L)*65(W)*71(H),300(L)*65(W)*71(H),250(L)*65(W)*71(H) |
|
Brand of Light Source: |
CREE |
|
Light Color: |
2700/3000/4000/5000K,RGBW,RGB, |
|
Power: |
24pcs：48W |
|
12pcs：24W |
|
|
8pcs：18W |
|
|
6pcs：13W |
|
|
4pcs：10W |
|
|
3pcs：7W |
|
|
CRI （Ra): |
80/70(>5000K) |
|
SDCM: |
≤5SDCM |
|

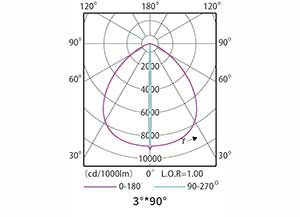

Beam Angle: |
3X90(half angle) |
|
Input voltage: |
DC24V |
|
Control: |
DMX or ON/OFF |
|
Channel: |
1 |
|
Appearance: |
Weight:2.8/1.8/1.4/1.2/0.8KG，Materials：Extruded aluminum+PClens， Color：RAL7012 |
|
Temperature Range: |
-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage) |
|
Surface Temperature:（@50℃） |
≤65 |
|
Protection Grade: |
IP66 |
|
IK06 |
|
|
Windward Area（max m²）: |
0.1 |
|
Environmental Certification: |
ROHS |
|
Cable: |
2 coreflat wire exposed 30cm, 2x1.5mm2 withIP66&IP67cable glands（On-Off） |
|
5 coreflat wire exposed 30cm, 2x1.5mm2 + 3x0.3mm2 withIP66&IP67cable glands（DMX） |
