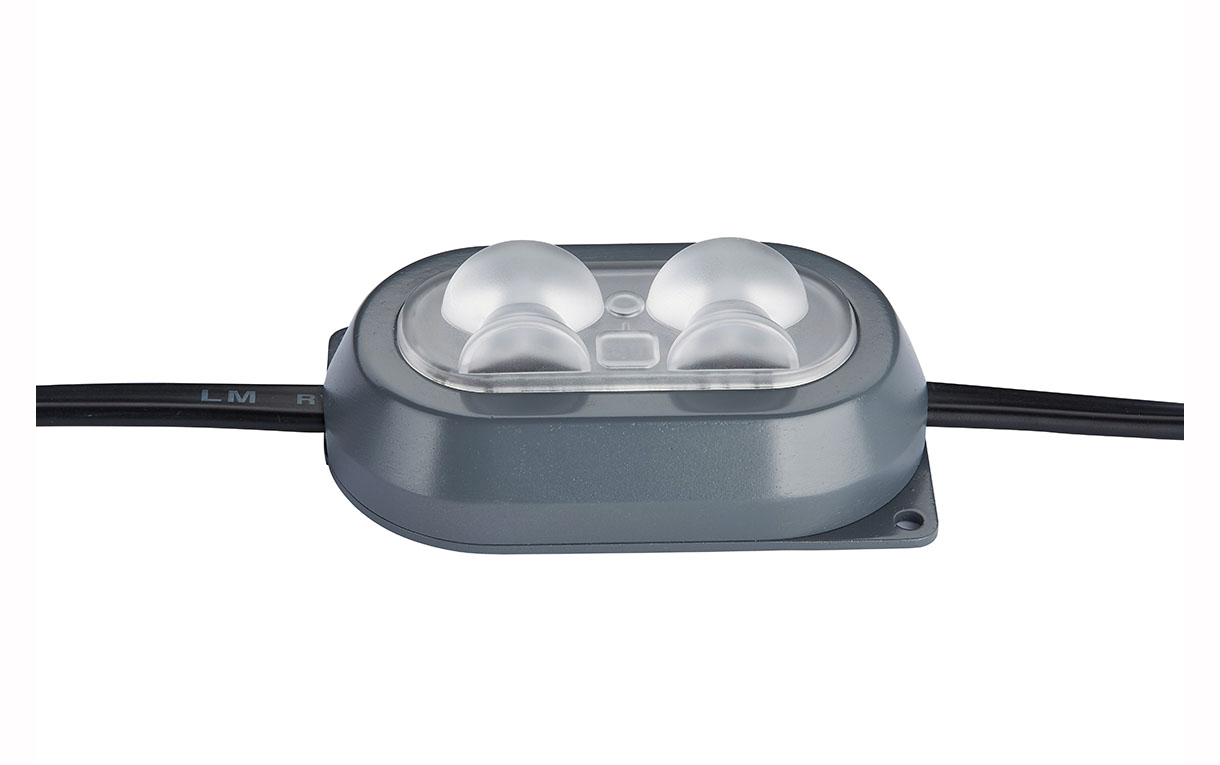

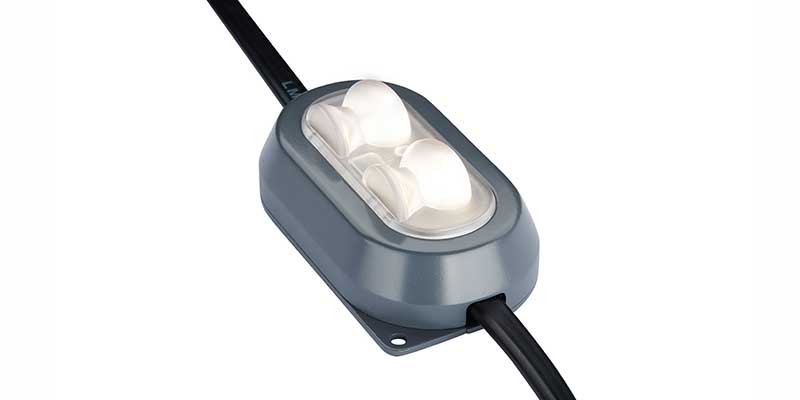

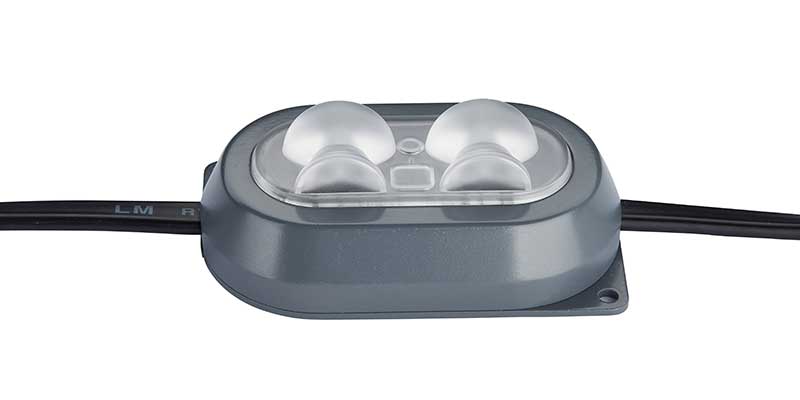

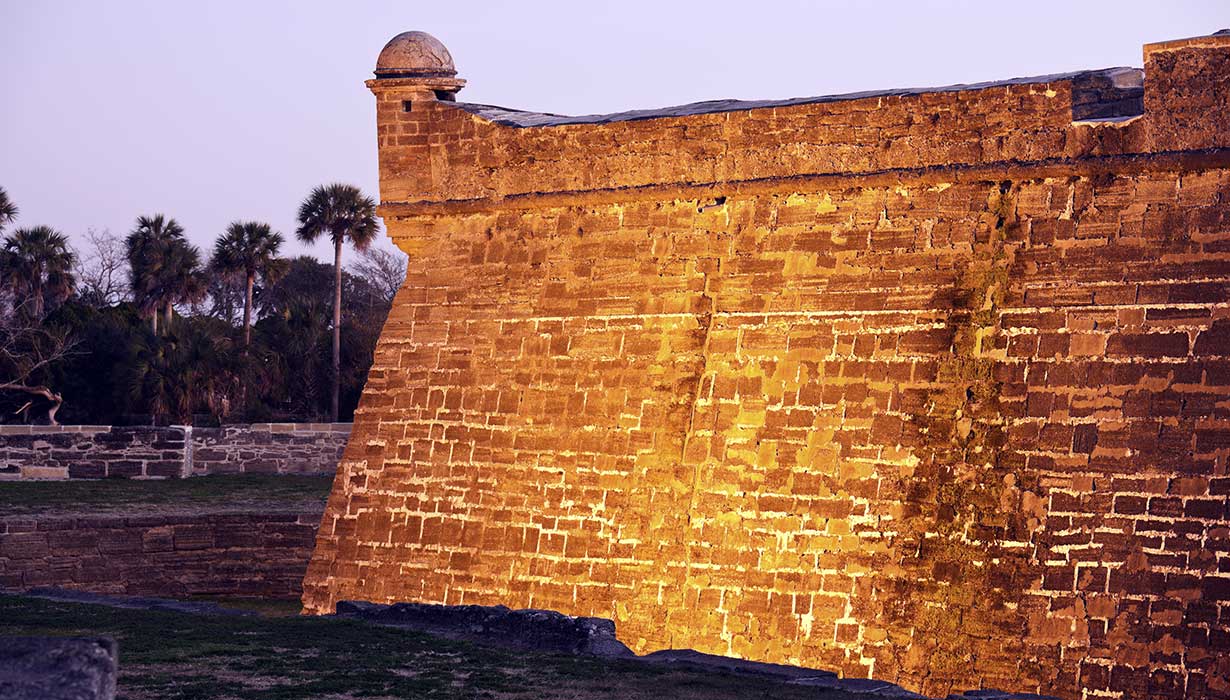

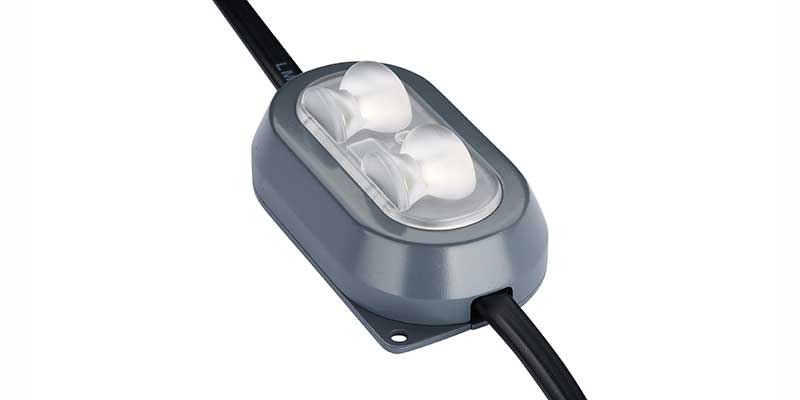

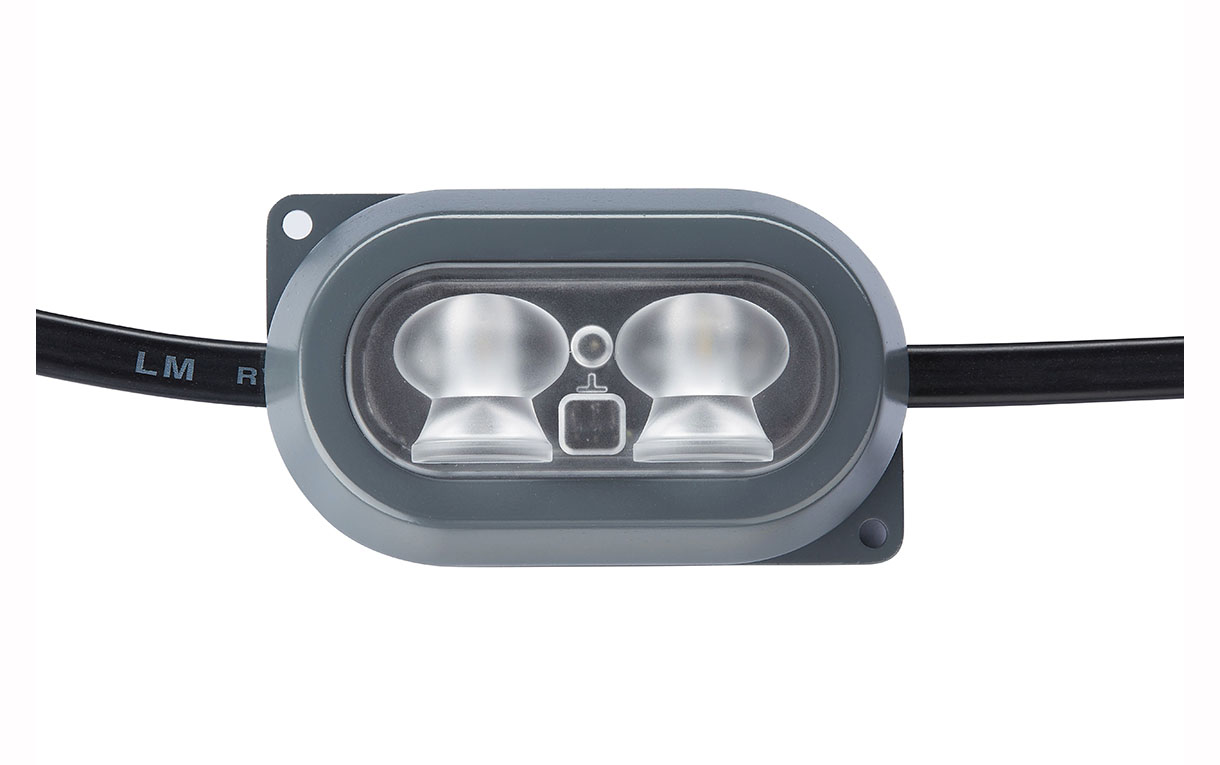

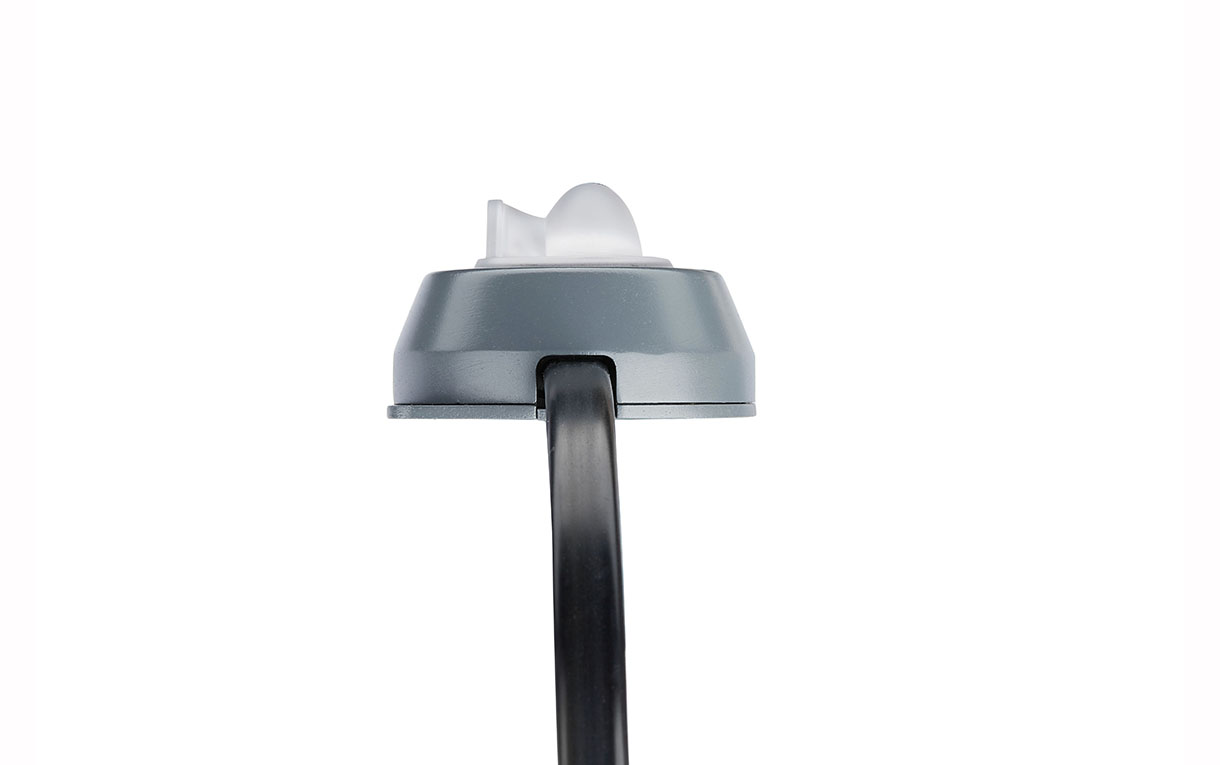

WashFlex is designed for short-distance wall washing of curved or arc-shaped low walls, and for projection or wall washing effect of frames. Its compact design minimizethe visual impact to building facades. It can be designed as single format or string format on requests, and the whole luminarie can reach to IP66 level. The flexible asymmetrical distribution wall washer can be installed along the arc of the wall to achieve a uniform wall washing effect. The power of single module and the number of module can be customized on request. It is suitable for curved walls below 4 meters.
|

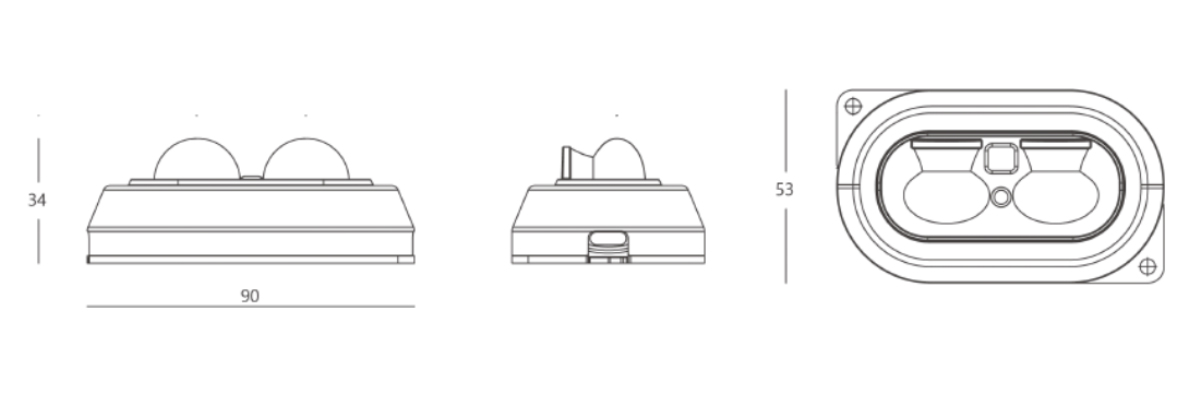

Dimension(mm): |
90(L)*53(W)*34(H) |
|
Brand of Light Source: |
OSRAM |
|
Light Color: |
2700/3000/4000/5000K（white） |
|
Power: |
2pcs：2/4W |
|
CRI （Ra): |
80/70(>5000K) |
|
SDCM: |
≤5SDCM |
|

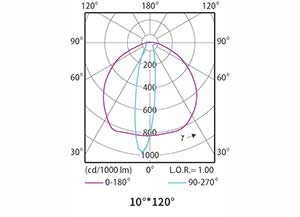

Beam Angle: |
微asymmetry 10X120 |
|
Input voltage: |
DC24V |
|
Control: |
DMX or ON/OFF |
|
Channel: |
1 |
|
Appearance: |
Weight:0.128KG，Materials：Die-cast aluminum+PClens， Color：RAL7012 |
|
Temperature Range: |
-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage) |
|
Surface Temperature:（@50℃） |
≤65 |
|
Protection Grade: |
IP66 |
|
IK06 |
|
|
Windward Area（max m²）: |
0.0054 |
|
Environmental Certification: |
ROHS |
|
Cable: |
2 coreflat wire exposed 30cm, 2x1.0mm2 withIP66&IP67cable glands（On-Off） |
|
5 coreflat wire exposed 30cm, 2x1.0mm2 + 3x0.3mm2 withIP66&IP67cable glands（DMX） |
