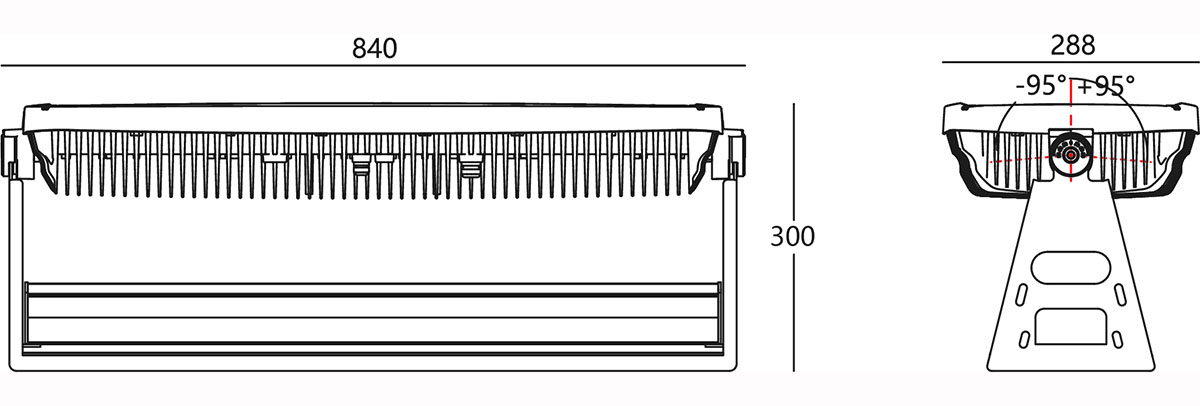

Dimension(mm):

840(L)*288(W)*300(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

2700/3000/4000/5000K,2200~6500K,/RGB/RGBW

Power:

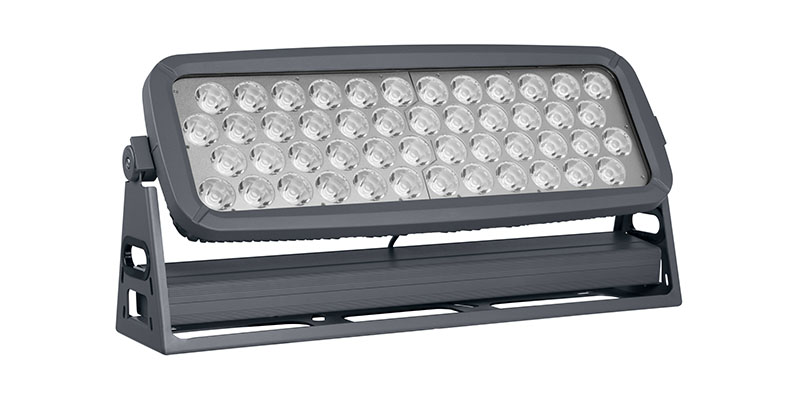

48pcs：120W

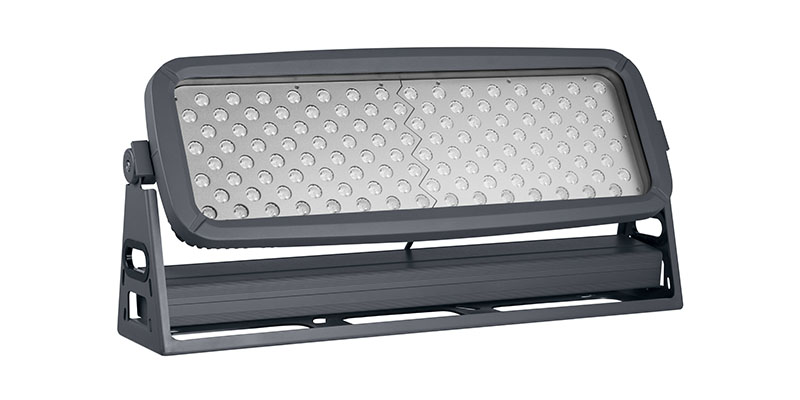

108pcs：260W

120pcs：300W

CRI （Ra):

80/70(>5000K)

SDCM:

≤5SDCM

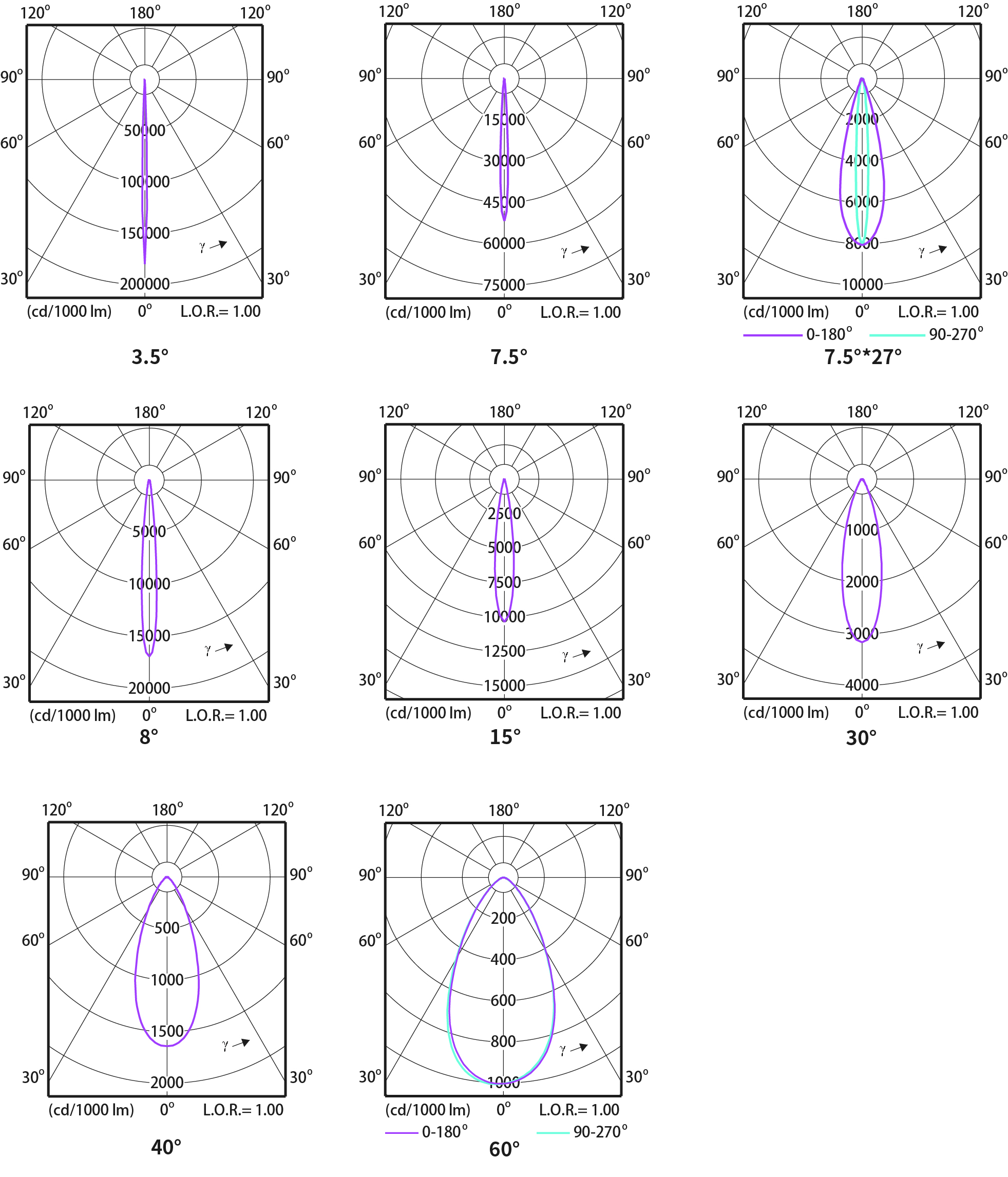

Beam Angle:

3.5°   7.5°/15°/7.5X27°   8°/30°/40°/60°

Input voltage:

AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight: 27KG ，Materials：Die-cast aluminum+Ultra-white transparent tempered glass，Color：RAL7012

Temperature Range:

-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66Protection Grade

IK06

Windward Area（max m²）:

0.6

Environmental Certification:

ROHS

Certification:

CQC

Cable:

3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）

3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IP67cable glands（DMX）
