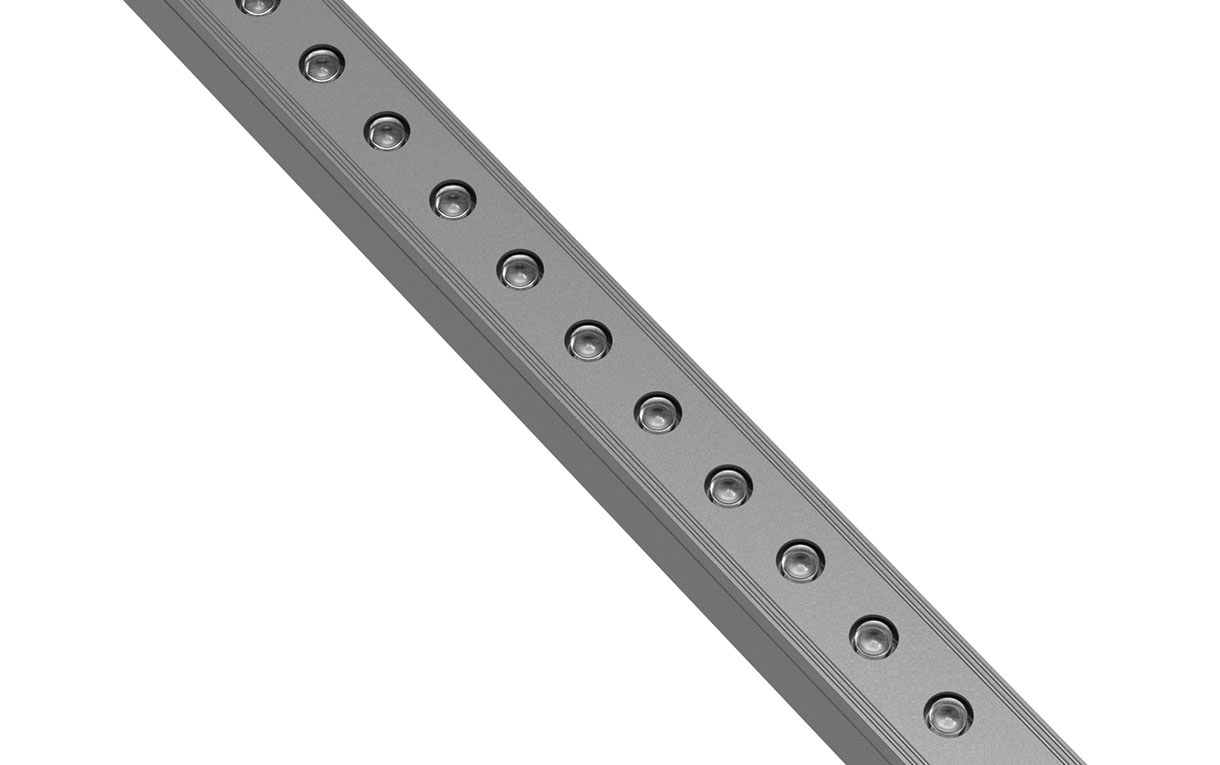

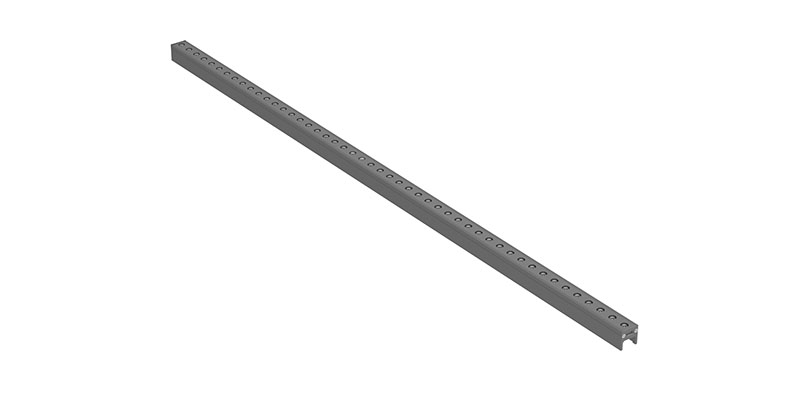

Emit-EW038

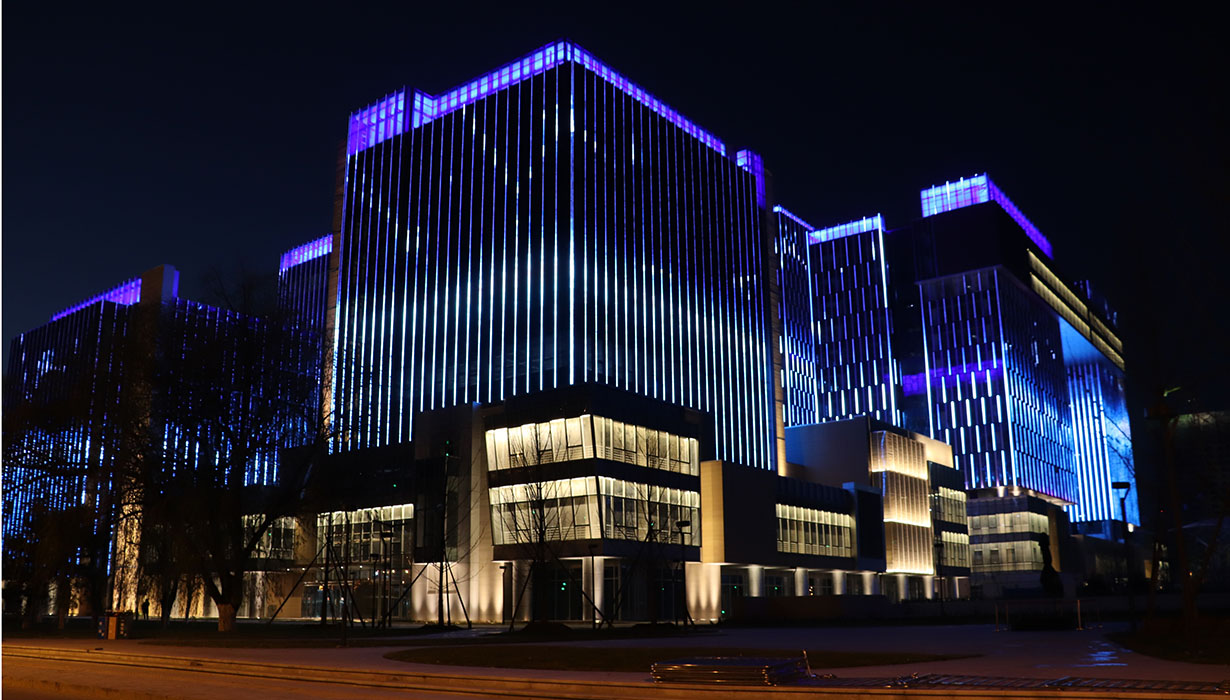

An economical outdoor linear pixel system designed direct-viewed lighting of building facades. The integrated compact design can be ideally combined with the curtain wall structure. Professional optical design with miniature light guide cylinder on the surface of the light source lens, which minimizes the visible luminous surface while visual comfort. multi-pixel function combined with internal or third-party standard control system, can achieve a variety of lighting effects.

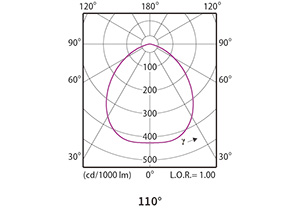

Light Distribution

Technical Data

Dimension(mm):

1000(L)*26(W)*27(H),500(L)*26(W)*27(H),300(L)*26(W)*27(H)

Brand of Light Source:

OSRAM/LUMILEDS/OSRAM+LUMILEDS

Light Color:

2200/2700/3000/4000/5000K,RGB,RGBW(24RGB+24W),RGBW(12RGB+12W),RGBW(6RGB+6W)

Power:

48pcs:12W

24pcs:6W

12pcs:3W

CRI (Ra):

80   80/70(>5000K)(mono white)

SDCM:

≤5SDCM

Beam Angle:

micro out light surface(110°)+aluminum housing

Input voltage:

DC24V

Control:

DMX or ON/OFF

Channel:

8/4/2   1/2

Appearance:

Weight:0.6/0.3/0.15KG,Materials:Extruded aluminum+PC lens,Color:RAL7012

Temperature Range:

-35℃ to 50℃(Starting),-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:(@50℃)

≤65

Protection Grade:

IP66

IK06

Windward Area(max m²):

0.037

Environmental Certification:

ROHS

Certification

CQC

Cable:

2 core round-wire cable exposed 15cm, 2x1.5mm2 withIP66&IP67cable glands(On-Off)

5 core round-wire cable exposed 15cm, 2x1.5mm2 + 3x0.25mm2 withIP66&IP67cable glands(DMX)



Product Feature

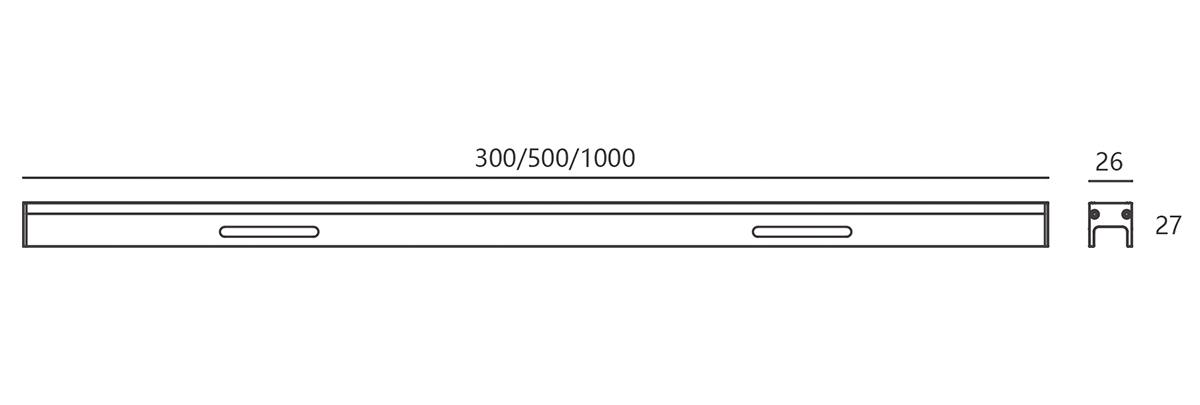

Dimensions
