1. With load support of up to 15 megapixels, greatly meet the needs of prpjects.

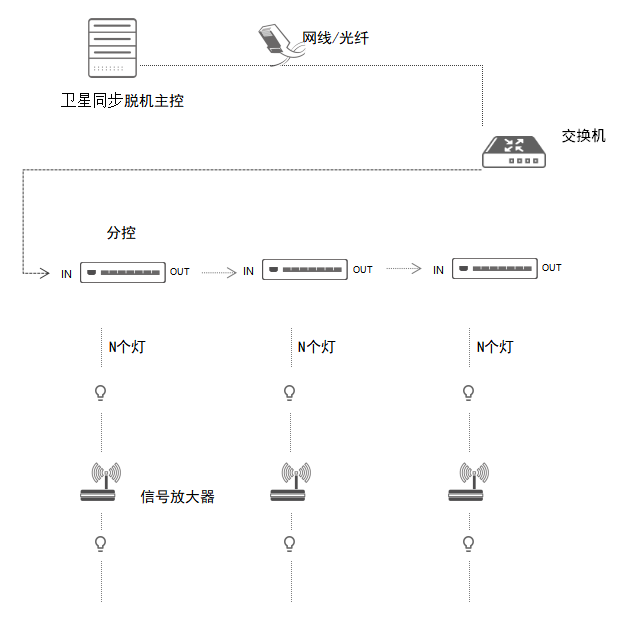

2. Global synchronization between multiple controllers can be achieved by satellite signals if controllers between buildings cannot be connected.

3. The system supports automatic, timed, preset effect playback.

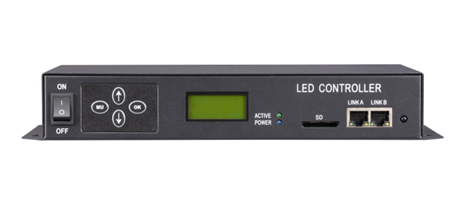

4. The controller with keys and external remote control can realize the program clip selection, overall brightness adjustment, white balance adjustment, playback speed adjustment, etc.

5. Support offline one-click fixing, clearing the sub-control ID number for on-site use.

6. Support offline addressing based on DMX512AP-N/NB, UCS512, TM512, WS2821 or other driver chips.

7. Support switch-in-line scheme: reduce the length of the system cascading chain to improve stability;

8. Support for two-way backup, display will not be affected in cacase controllers or network cable is broken.

9. The independent brightness control of the three-base color makes it easier and more effective to precisely adjust the white balance.

10. Support four-color equipment.

11. The use of Ethernet interface and UDP network protocol enable transmission stability, the maximum transmission distance is 100 m.

12. LCD display module shows controller parameters and status timely.

13. SD card storage, the controller can support up to 32G and 99 program files can be preset.

14. Support multiple offline master remote online download to update offline programs.

15. Built-in animation test program, convenient to debugging and application.

16. Compatible for different types of luminaires under different protocols luminaires.

1. support all kinds of Windows operating system and support multi languages; 2. playback software has sufficient interface to be compatible with other international common protocols, and support customized design requirements; 3. Support to working with other Leifei control hardware such as multi-function converter to meet particular application requirements.

Rated voltage	AC 100V~240V
Rated power	15w
Length	283mm
Width	134mm
High	45mm
Hole spacing	268mm;68mm
standard Accessories	The remote × 1/SD card×1/reader × 1/AC power cord ×1
