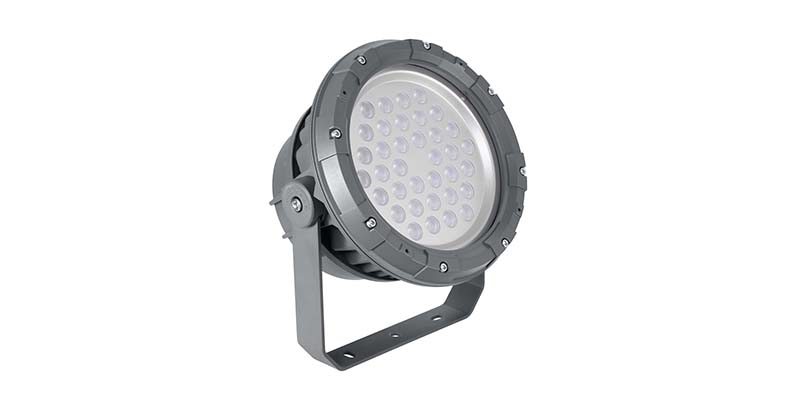

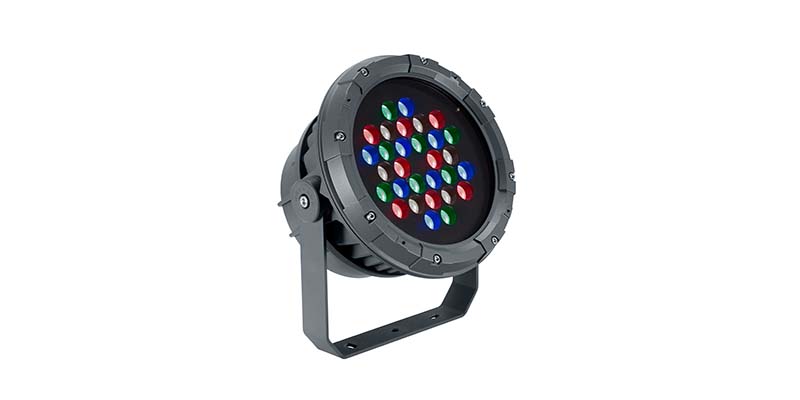

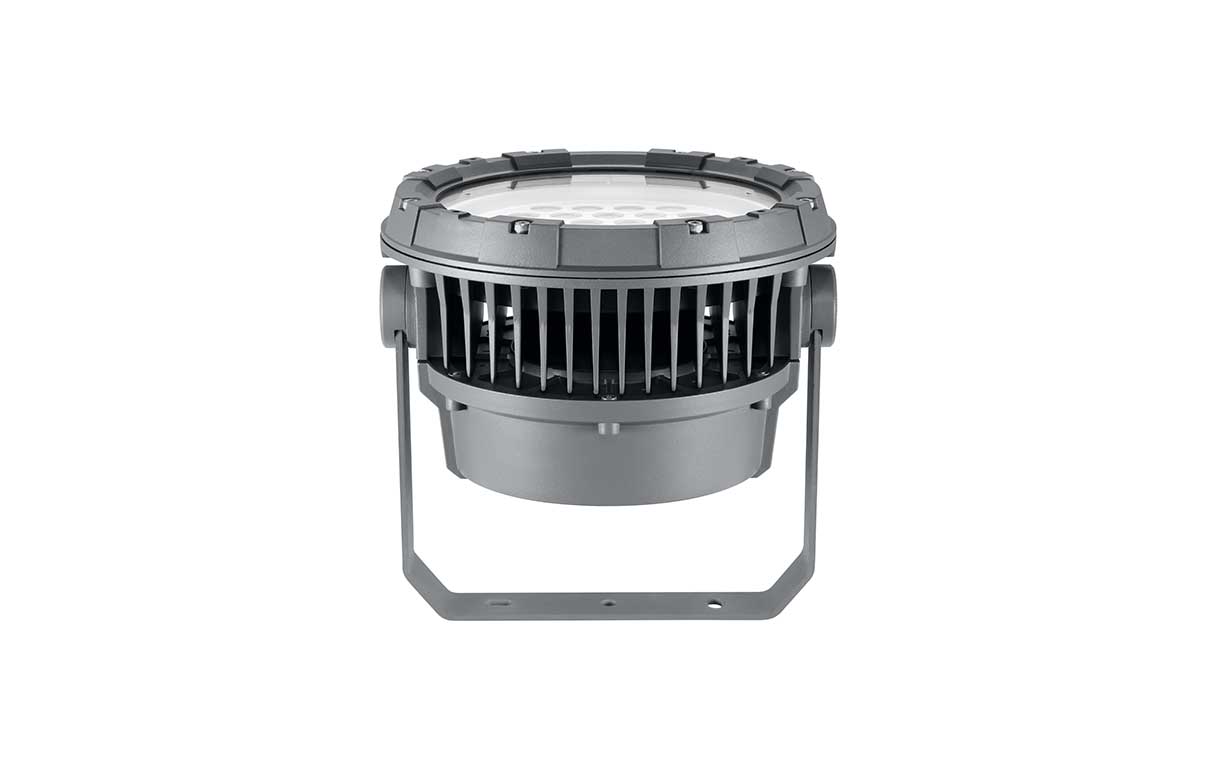

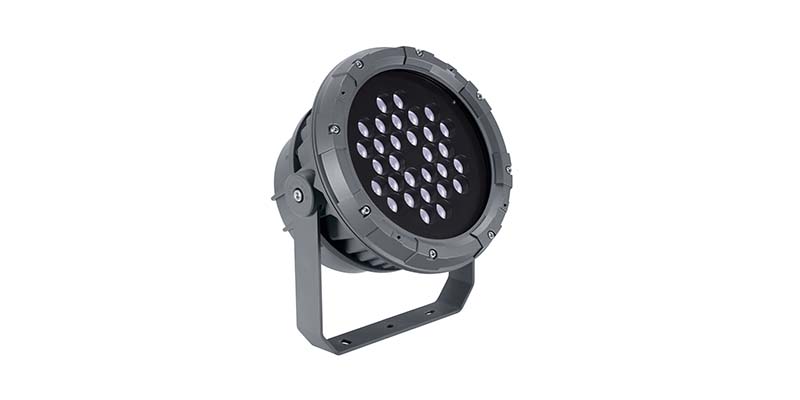

BrushPro S-F6104

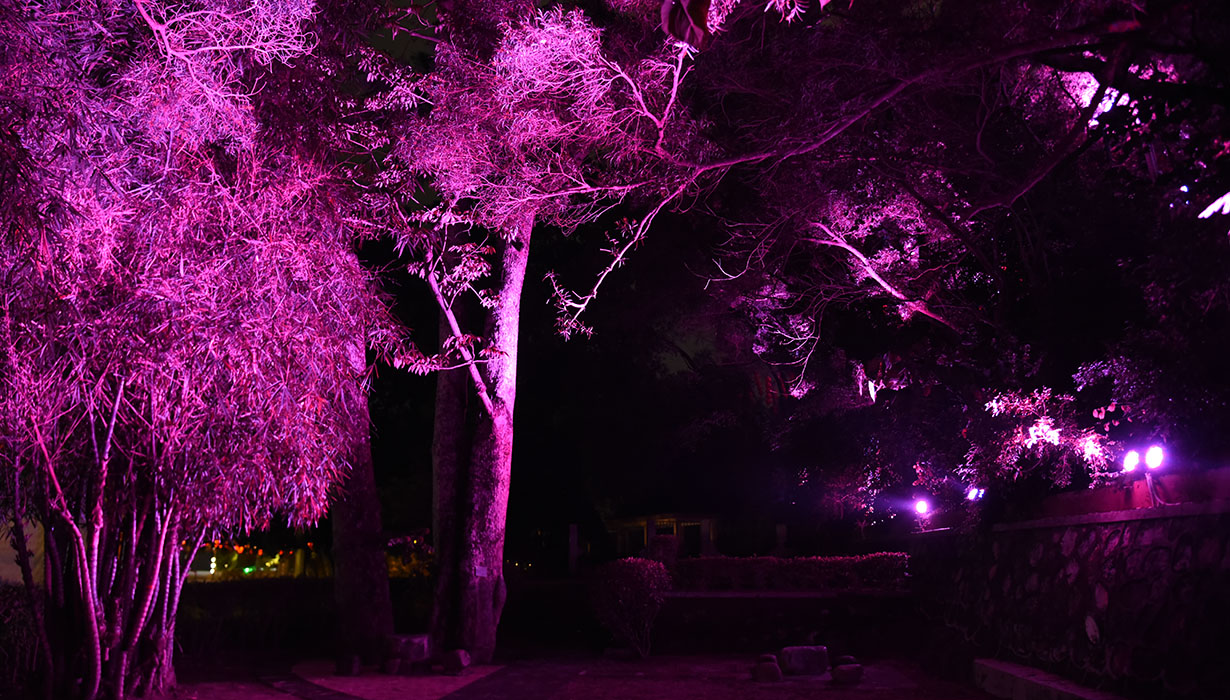

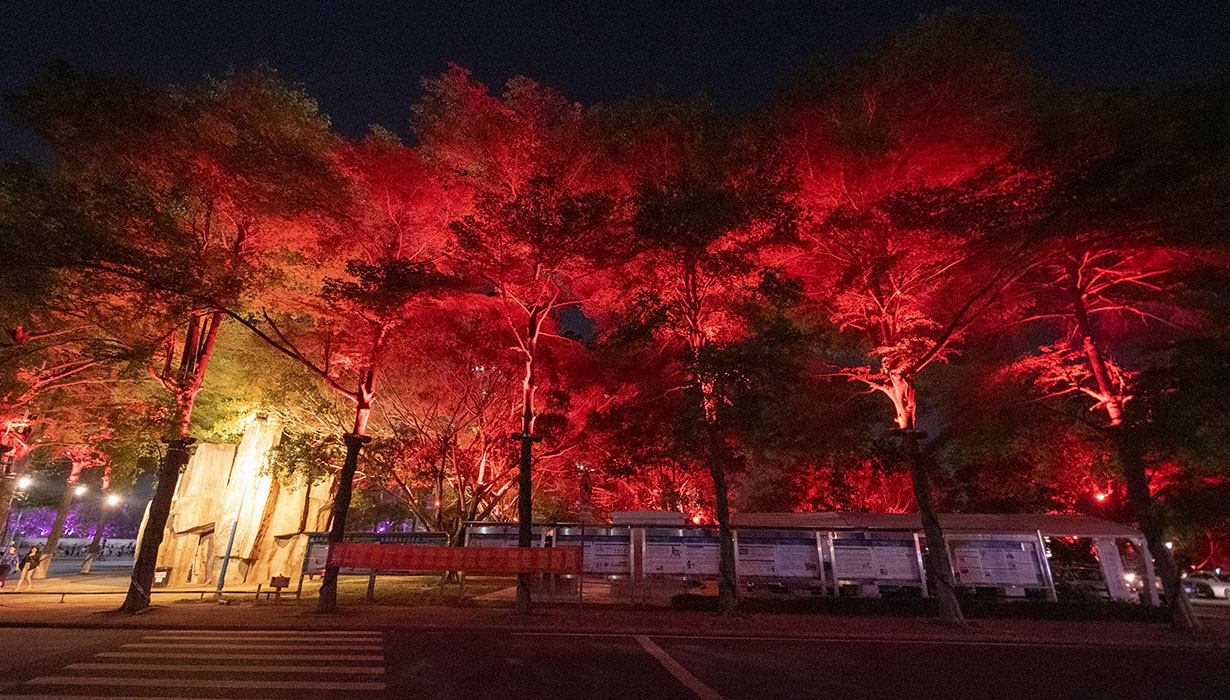

Professional Large-scale outdoor monochrome and polychrome circle luminaire series designed for applications such as floodlighting and projection of building facades, landscape lighting, etc. Suitable for a variety of outdoor lighting applications such as architecture, landscape, public lighting, etc., power coverage Range: 12W-150W. Professional optical design, includes 3.5°/8°/15°/30°/40°/60°, With internal or third-party standard control system, a variety of lighting effects can be realized.

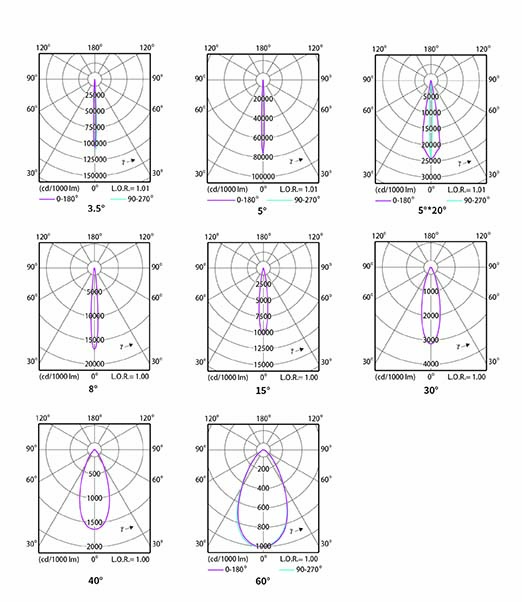

Light Distribution

Technical Data

Dimension(mm):

260(L)*260(W)*256.3(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

2700/3000/4000/5000K,6R6G6B6W,8R8G8B,9R9G9B9W,12R12G12B

Power:

standard version:
18pcs:42W
24pcs:50W
36pcs:80W

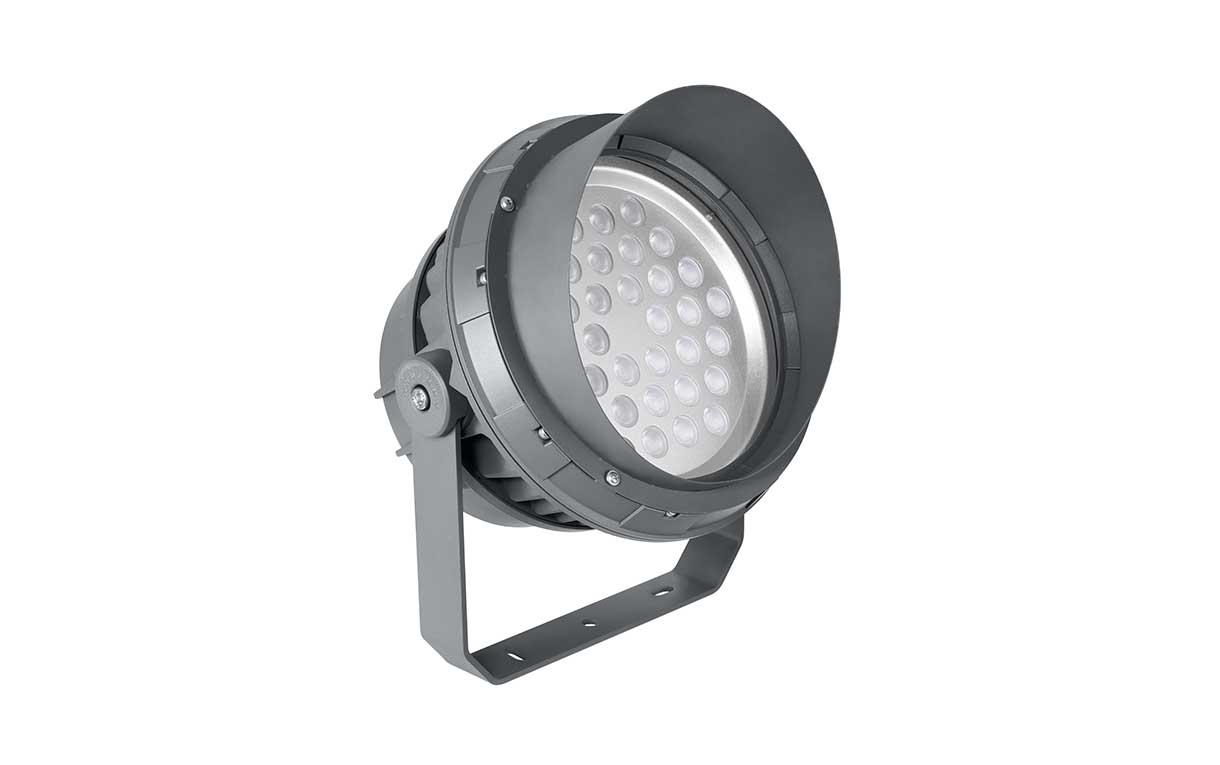

anti-glare version:
28/30pcs:72W
36pcs:96W



CRI (Ra):

80/70(>5000K)

SDCM:

≤5SDCM

Beam Angle:

3.5°/5°/5×20°/8°/15°/30°/40°/60°

Input voltage:

DC24V/AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight:6.5KG,Materials:Die-cast aluminum+Ultra-white transparent tempered glass,Color:RAL7012

温°范0围:

-35℃ to 50℃(Starting),-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:(@50℃)

≤65

Protection Grade:

IP66

IK06

Windward Area(max m²):

0.038

Environmental Certification:

ROHS

Certification:

CQC

Cable:

3 core round-wire cable exposed 50cm, 3x1.0mm2(On-Off)

3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IP67cable glands(DMX/RDM)



Product Feature

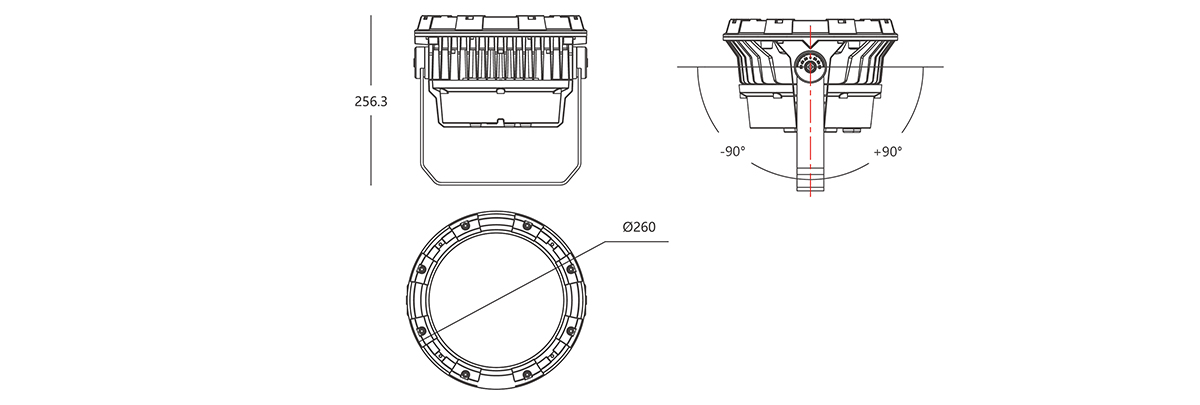

Dimensions
