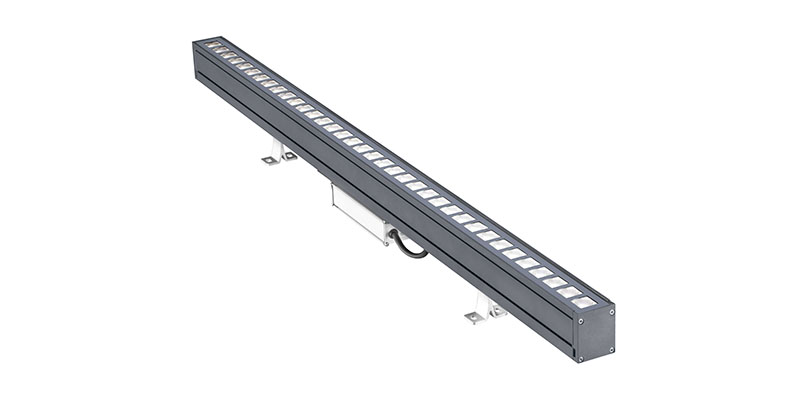

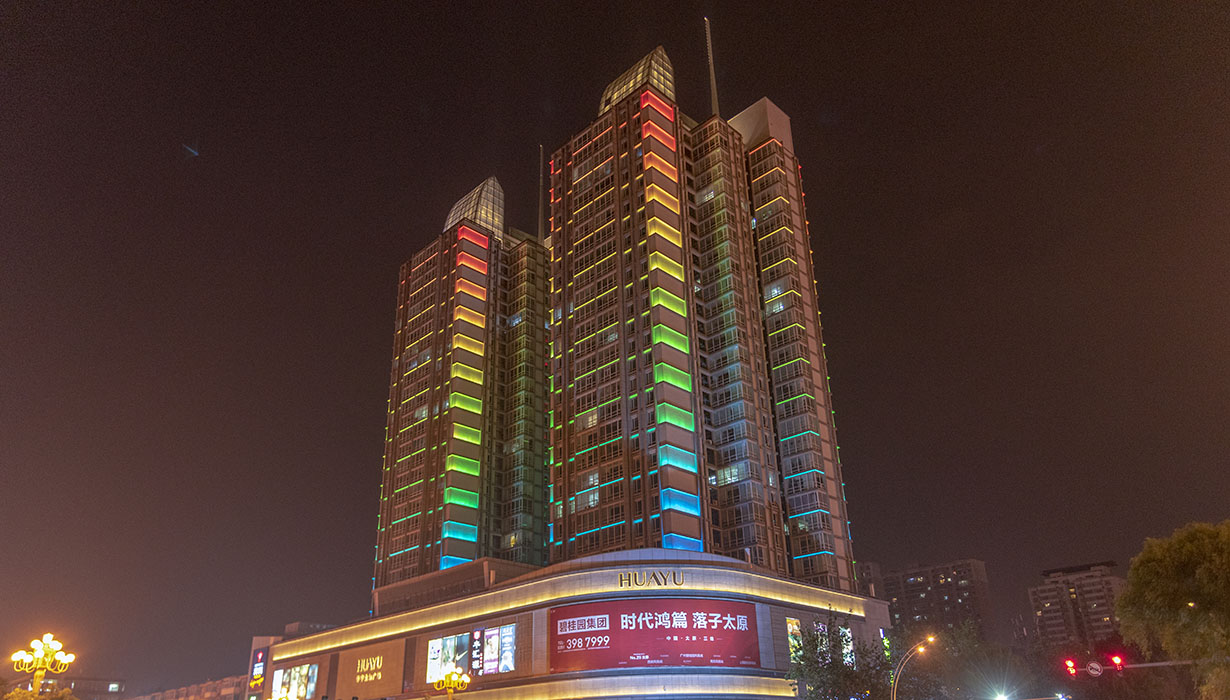

It is a basic small and medium-sized outdoor monochrome and polychrome linear lighting system designed to realize the application of building facades, such as wall washer,grazer. Through the combination of different power, light color, light distribution, etc., it can effectively meet the various market requirements; Consistent appearance design throughout the whole series; Different standard or customized mounting brackets can be selected to flexibly meet different installation and adjustment requirements(such as ±95°); The leaking design of the end cap ensures full angle installlation; Optional standard or customized shading parts/accessories to ensure visual comfort; Automatic processing and manufacturing enables fast delivery. Structural waterproof and flush end cap wiht drainage holes to ensure the waterproof performance when inverted installation; IP66.
|

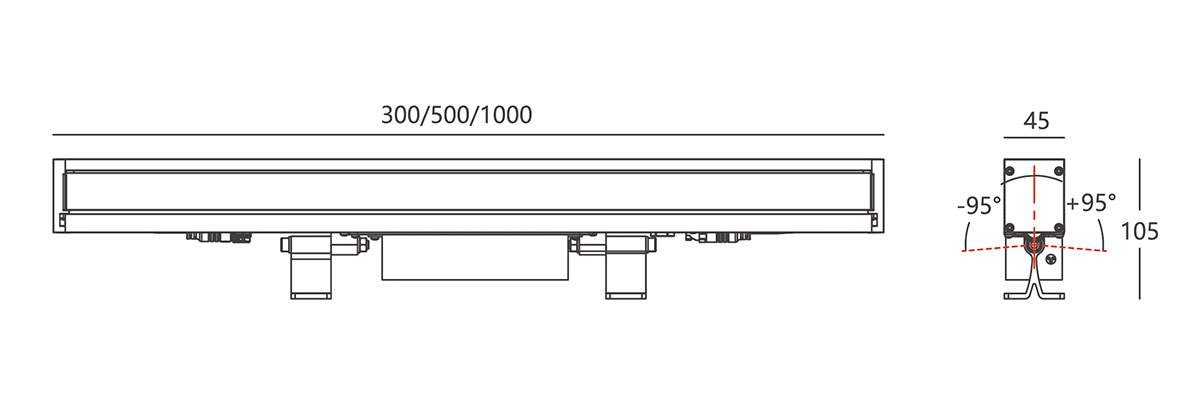

Dimension(mm): |
1000(L)*45(W)*105(H),500(L)*45(W)*105(H),300(L)*45(W)*105(H) |
|
Brand of Light Source: |
CREE/OSRAM |
|
Light Color: |
2200/2700/3000/4000/5000K,RGBW(3000/4000/5000/5700/6500),8R8G8B8W,8R8G8B,4R4G4B4W,4R4G4B,2R2G2B2W,2R2G2B |
|
Power: |
36pcs：40W |
|
24pcs：50W |
|
|
24pcs：40/50W |
|
|
32pcs：40/50W |
|
|
18pcs：20W |
|
|
12pcs：25W |
|
|
12pcs：12/25W |
|
|
16pcs：20/25W |
|
|
12pcs：13W |
|
|
6pcs：12/15W |
|
|
8pcs：12/15W |
|
|
CRI （Ra): |
W70 80/70(>5000K)(mono white) |
|
SDCM: |
≤5SDCM |
|

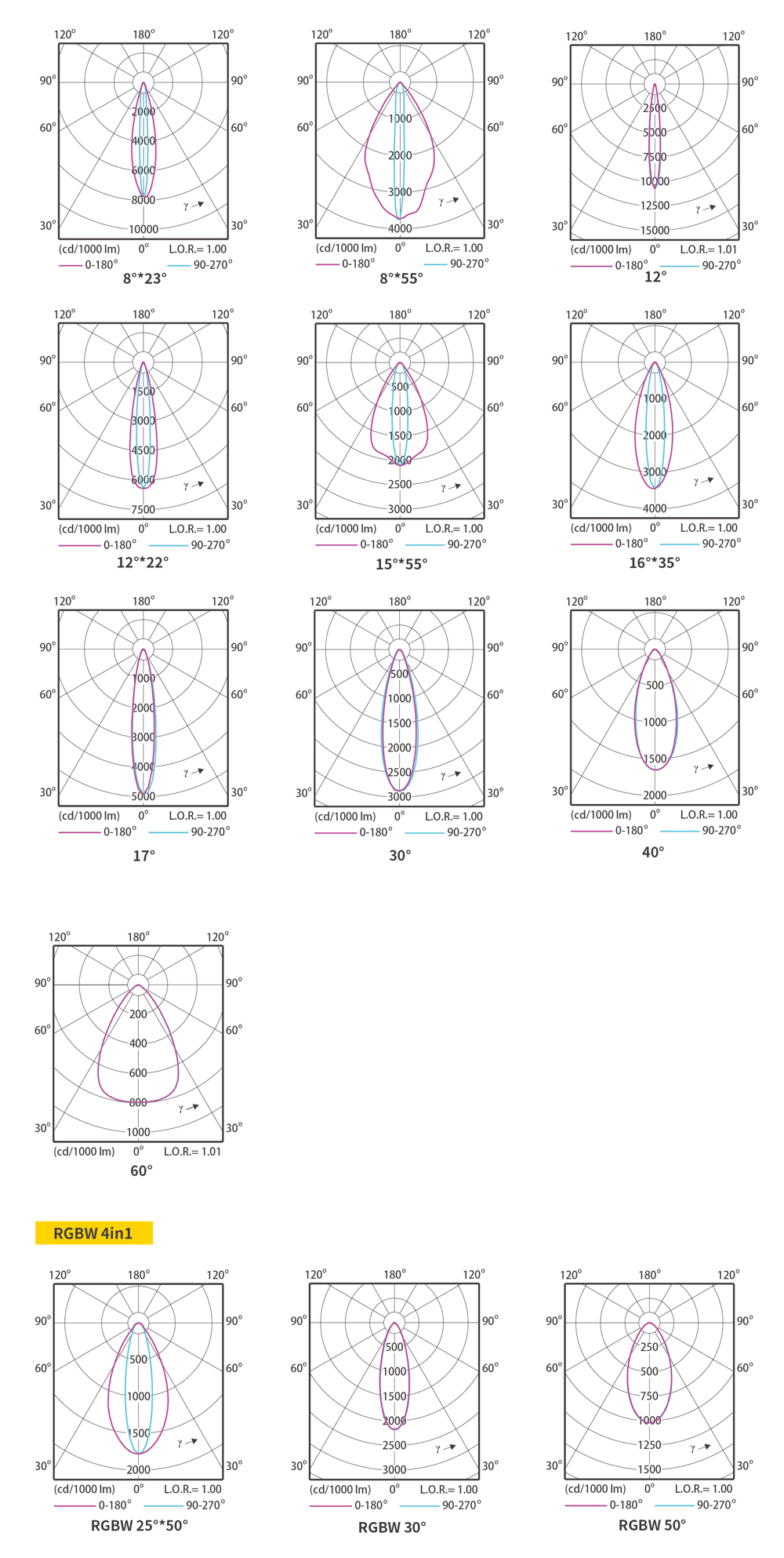

Beam Angle: |
12°/17°/30°/40°/60°/16X35° 12°/17°/30°/40°/16X35°/8°/8X23°/8X55° 30°/50°/25X40° 40°/16X35°/8X23°/8X55°(离墙5CM) |
|
Input voltage: |
DC24V/AC220V |
|
Control: |
DMX or ON/OFF |
|
Channel: |
1/6 1/5 1/4 1/3 1/2 |
|
Appearance: |
Weight:3.5/2.5/1.5KG，Materials：Extruded aluminum+Die-cast aluminumend cap+Ultra-white transparent tempered glass，Color：RAL7012 |
|
Temperature Range: |
-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage) |
|
Surface Temperature:（@50℃） |
≤65 |
|
Protection Grade: |
IP66 |
|
IK06 |
|
|
Windward Area（max m²）: |
0.073 |
|
Environmental Certification: |
ROHS |
|
Certification |
CQC |
|
Cable: |
High voltage：3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）3 core round-wire cable exposed 50cm, 3x1.0mm2+4 coreflat wire exposed 15cm, 4x0.5mm2 with IP66&IIP67 cable glands（DMX） |
|
Low voltage：2 coreflat wire exposed 15cm, 2x1.5mm2（On-Off）5 core flat wire exposed 15cm, 2x1.5mm2+3x0.3mm2 with IP66&IP67 cabel glands（DMX） |
