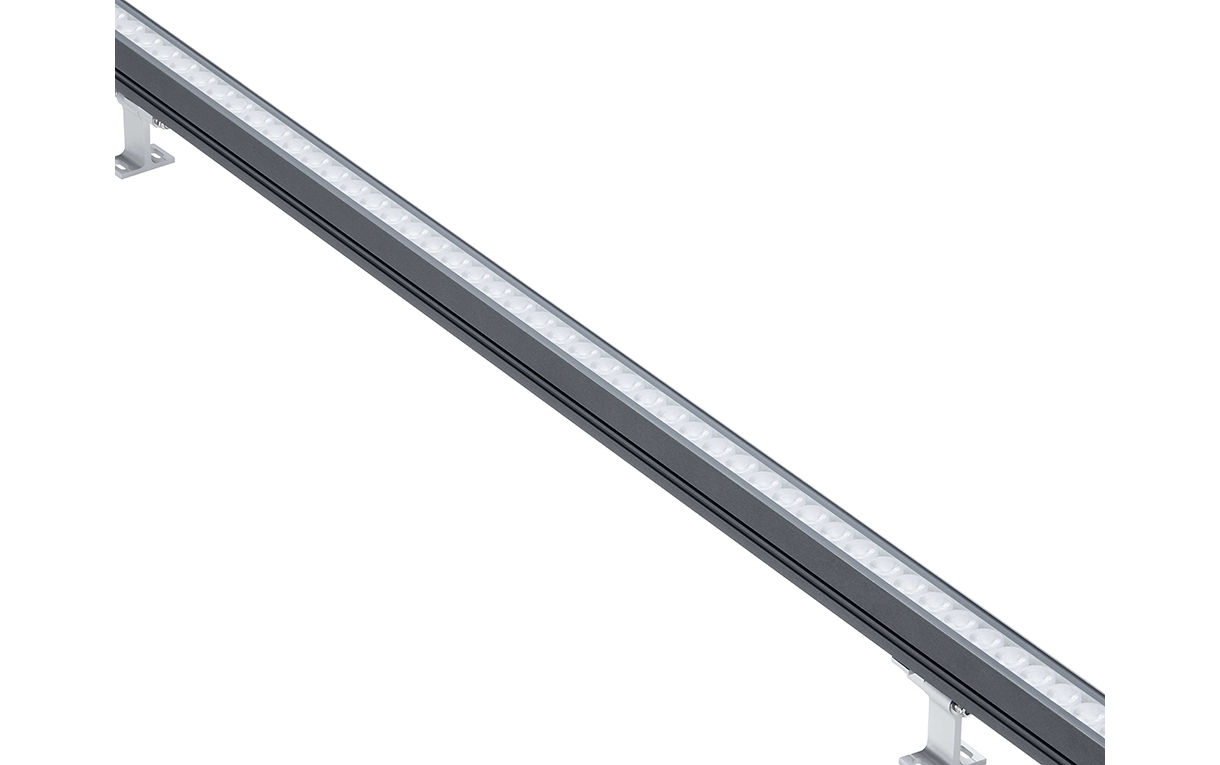

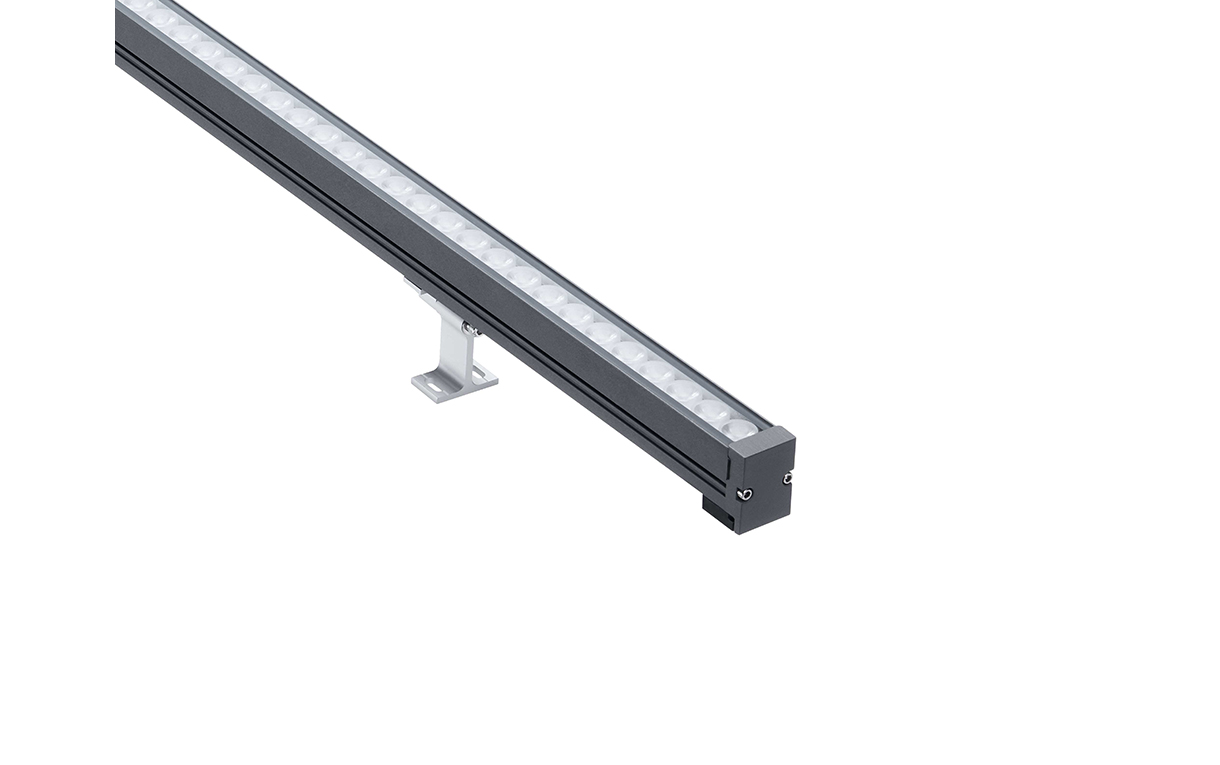

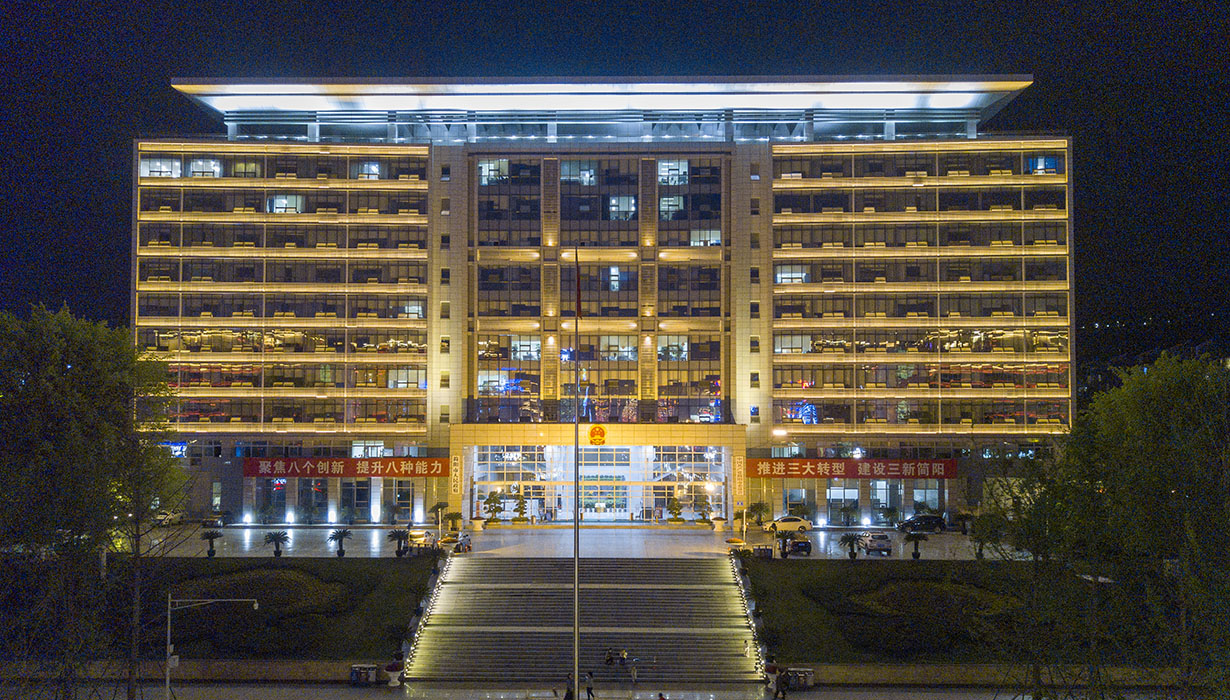

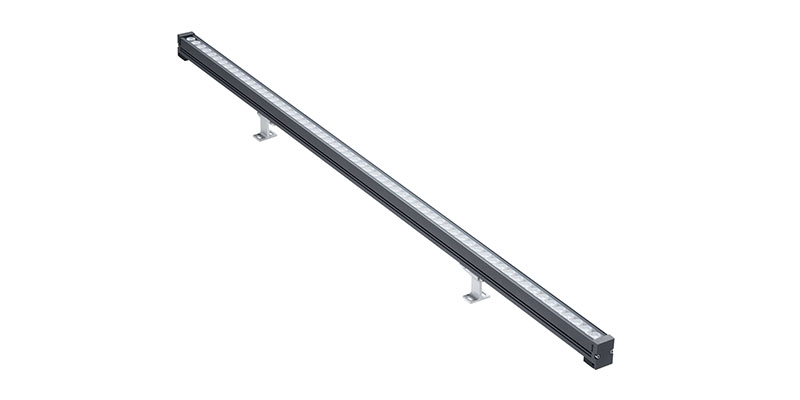

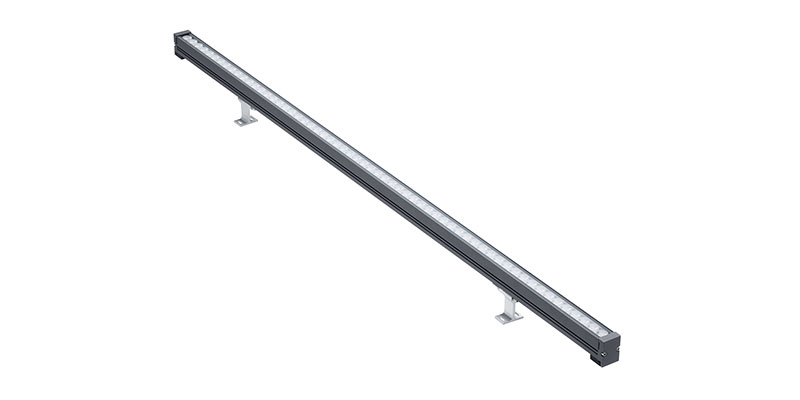

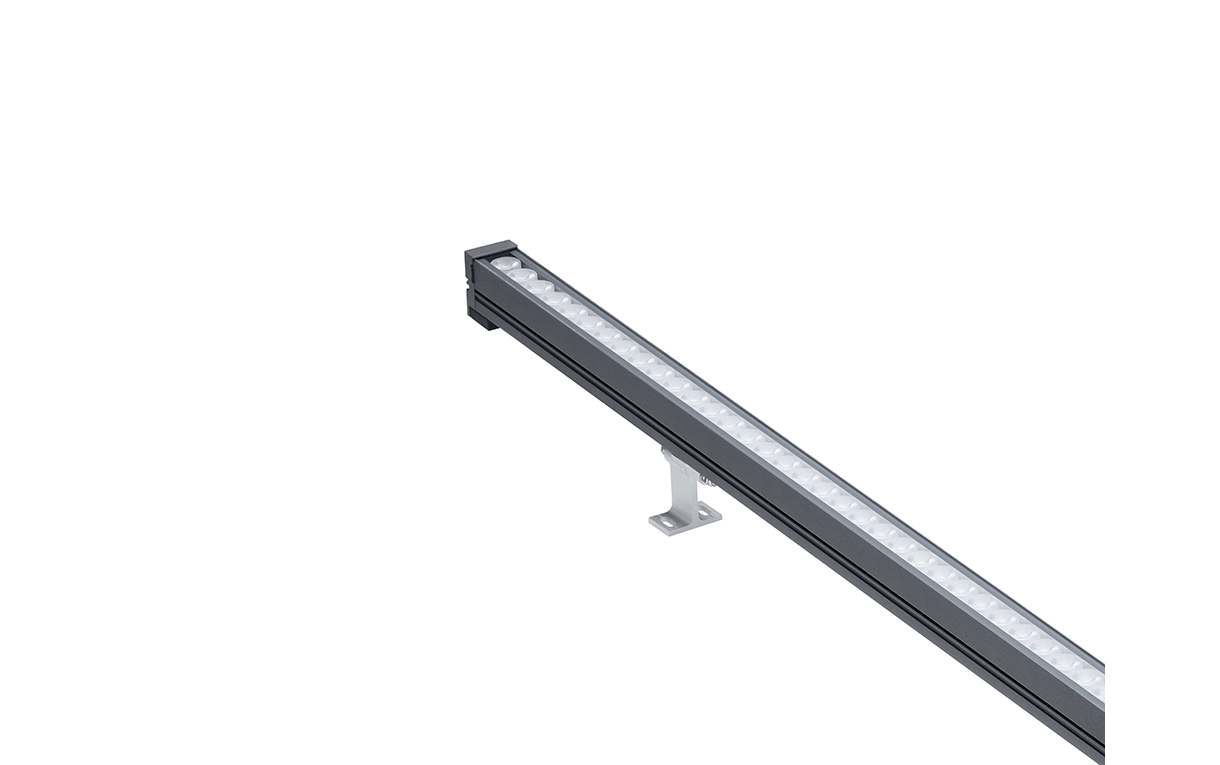

It is a basic small and medium-sized outdoor monochrome and polychrome linear lighting system designed to realize the application of building facades, such as wall washer,grazer. Through the combination of different power, light color, light distribution, etc., it can effectively meet the various market requirements; Consistent appearance design throughout the whole series; Different standard or customized mounting brackets can be selected to flexibly meet different installation and adjustment requirements(such as ±95°); The leaking design of the end cap ensures full angle installlation; Optional standard or customized shading parts/accessories to ensure visual comfort; Automatic processing and manufacturing enables fast delivery. Structural waterproof and flush end cap wiht drainage holes to ensure the waterproof performance when inverted installation; IP66.
|

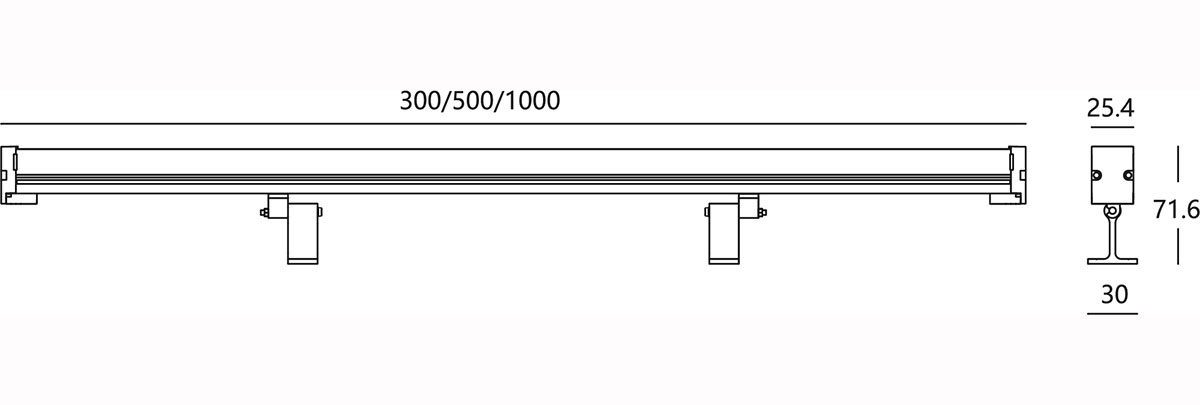

Dimension(mm): |
1000(L)*25.4W)*71.6(H),500(L)*25.4W)*71.6(H),300(L)*25.4W)*71.6(H) |
|
Brand of Light Source: |
OSRAM/LUMILEDS |
|
Light Color: |
2200/2700/3000/4000/5000K,RGB,RGBW（24RGB+24W）,RGBW（30RGB+30W）,RGBW（12RGB+12W）,RGBW（15RGB+15W）,RGBW（6RGB+6W）,RGBW（9RGB+9W） |
|
Power: |
48pcs:12W |
|
CRI （Ra): |
80 |
|
SDCM: |
≤5SDCM |
|
Beam Angle: |
25/40/45/60/20X30/20X40/ |
|
Input voltage: |
DC24V |
|
Control: |
DMX or ON/OFF |
|
Channel: |
1/2/3/4/5/6/8/10 |
|
Appearance: |
Weight:0.9/0.5/0.38KG，Materials：Extruded aluminum+Die-cast aluminumend cap+Ultra-white transparent tempered glass，Color：RAL7012 |
|
Temperature Range: |
-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage) |
|
Surface Temperature:（@50℃） |
≤65 |
|
Protection Grade: |
IP66 |
|
IK06 |
|
|
Windward Area（max m²）: |
0.0439 |
|
Environmental Certification: |
ROHS |
|
Certification |
CQC |
|
Cable: |
2 core flat wire exposed 15cm, 2x1.0mm2 withIP66&IP67cable glands（On-Off） |
|
5 core flat wire exposed 15cm, 2x1.0mm2 + 3x0.3mm2 withIP66&IP67cable glands（DMX） |
