Point-D6042

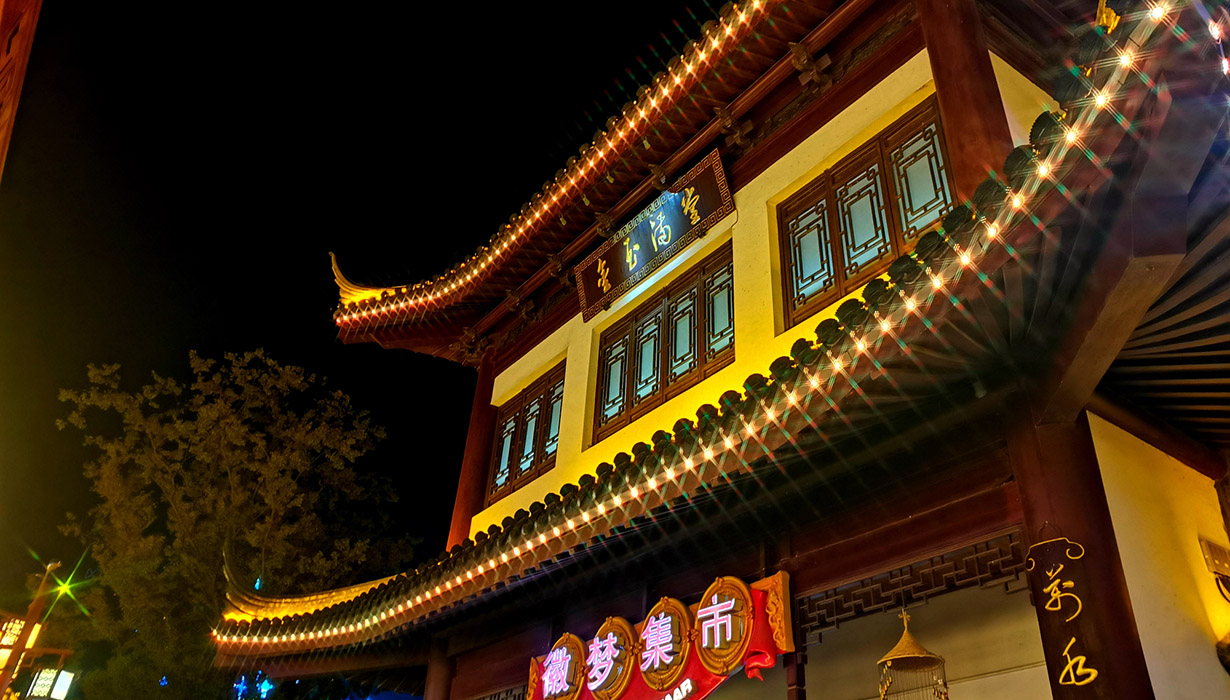

A basic high-power dot light system designed for facades. The appearance design is exquisite, which can be ideally combined with the curtain. Different translucent cover models (transparent flat cover, diamond spherical cover or opal spherical cover) are available to ensure multiple light mixing effects and overall surface luminance on the visible surface. With internal or third-party standard control system, a variety of lighting scenes can be realized.

Light Distribution

Technical Data

Dimension(mm):

111(L)*100(W)*67/37(H)

Brand of Light Source:

LUMILEDS/OSRAM/LUMILEDS+OSRAM

Light Color:

2200/2700/3000/4000/5000K,RGB,RGBW(12RGB+12W),RGBW(18RGB+12W)

Power:

36pcs:8W

9pcs:8/9W

12pcs:9W

6pcs:9W

CRI (Ra):

80(mono white)

SDCM:

≤5SDCM

Beam Angle:

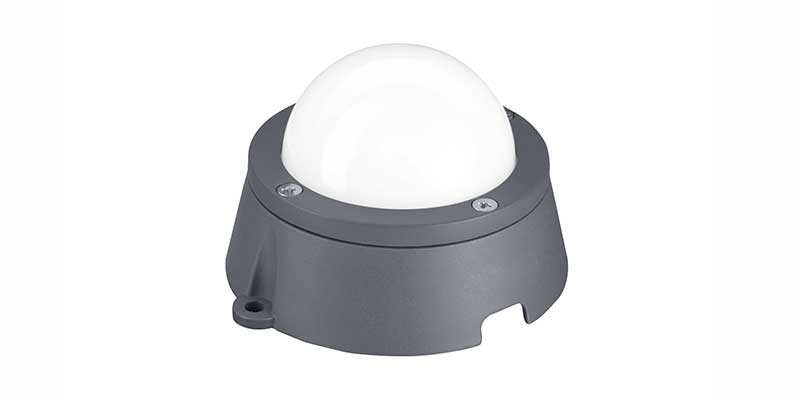

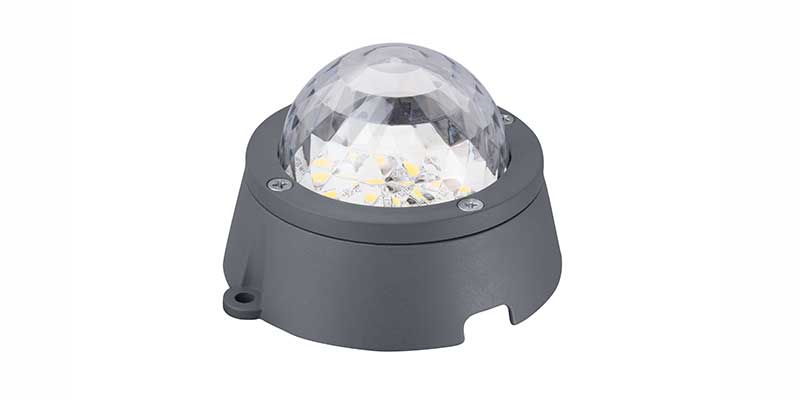

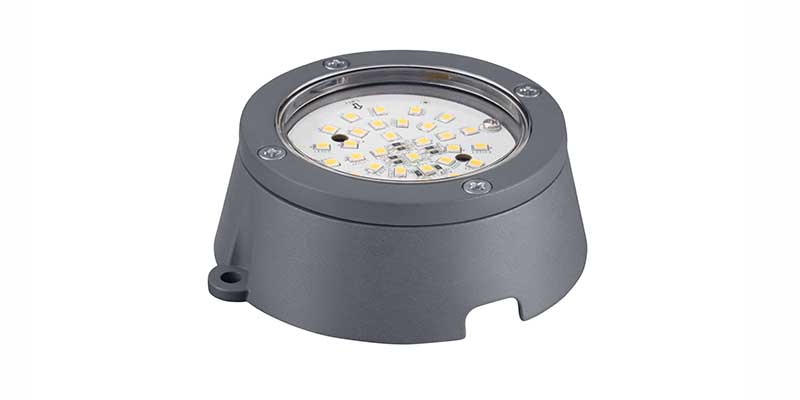

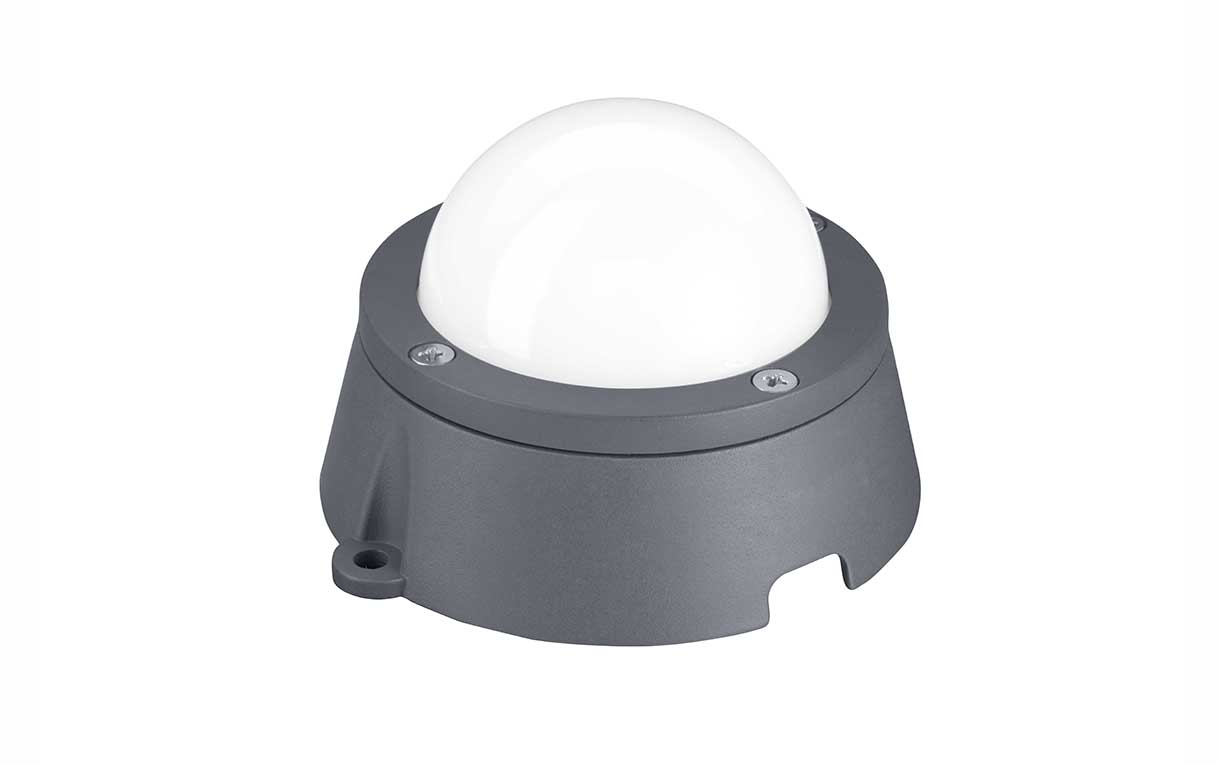

diamond global cover/opal global cover/transparent flat cover

Input voltage:

DC24V

Control:

DMX  or  ON/OFF

Channel:

1

Appearance:

Weight: 0.3KG,Materials:Die-cast aluminum+PC cover, Color:RAL7012

Temperature Range:

-35℃ to 50℃(Starting),-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:(@50℃)

≤65

Protection Grade:

IP66Protection Grade

IK06

Windward Area(max m²):

0.005

Environmental Certification:

ROHS

Certification:

CQC

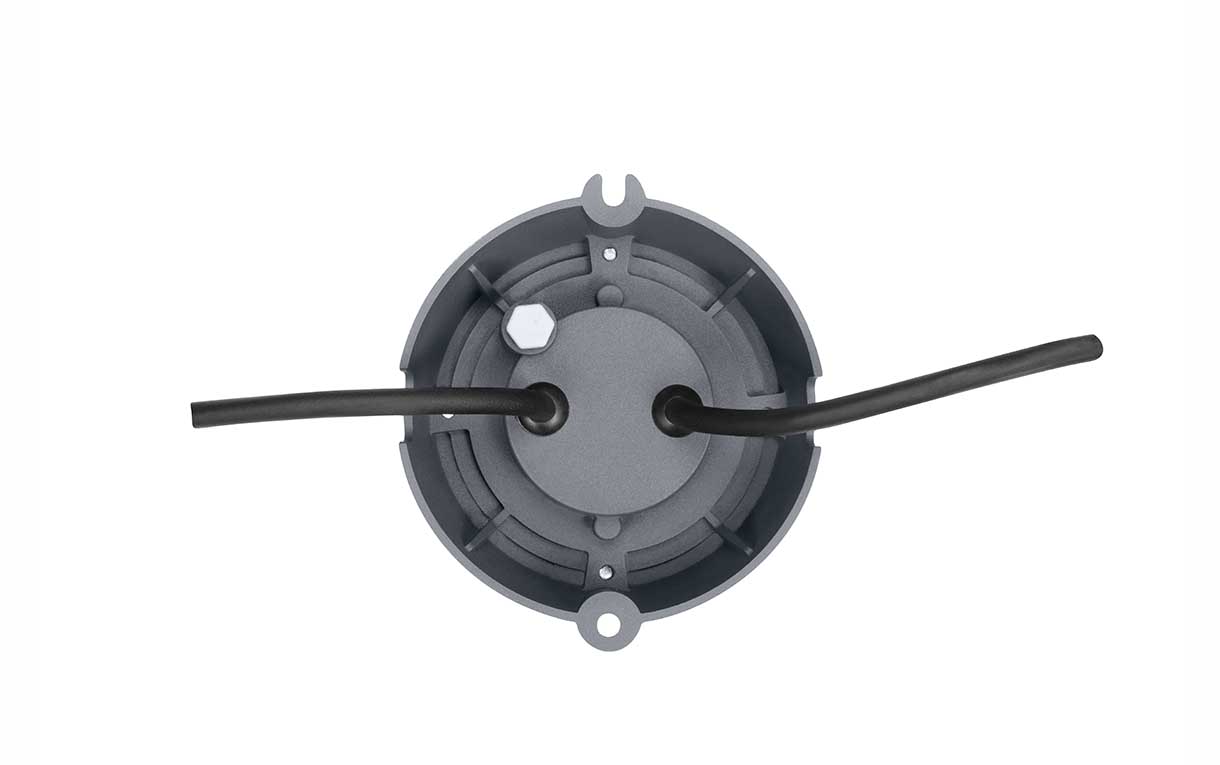

Cable:

2 core round-wire cable exposed 30cm, 2x1.5mm2 withIP66&IP67cable glands(On-Off)

5 core round-wire cable exposed 30cm, 2x1.5mm2 + 3x0.25mm2 withIP66&IP67cable glands(DMX)



Product Feature

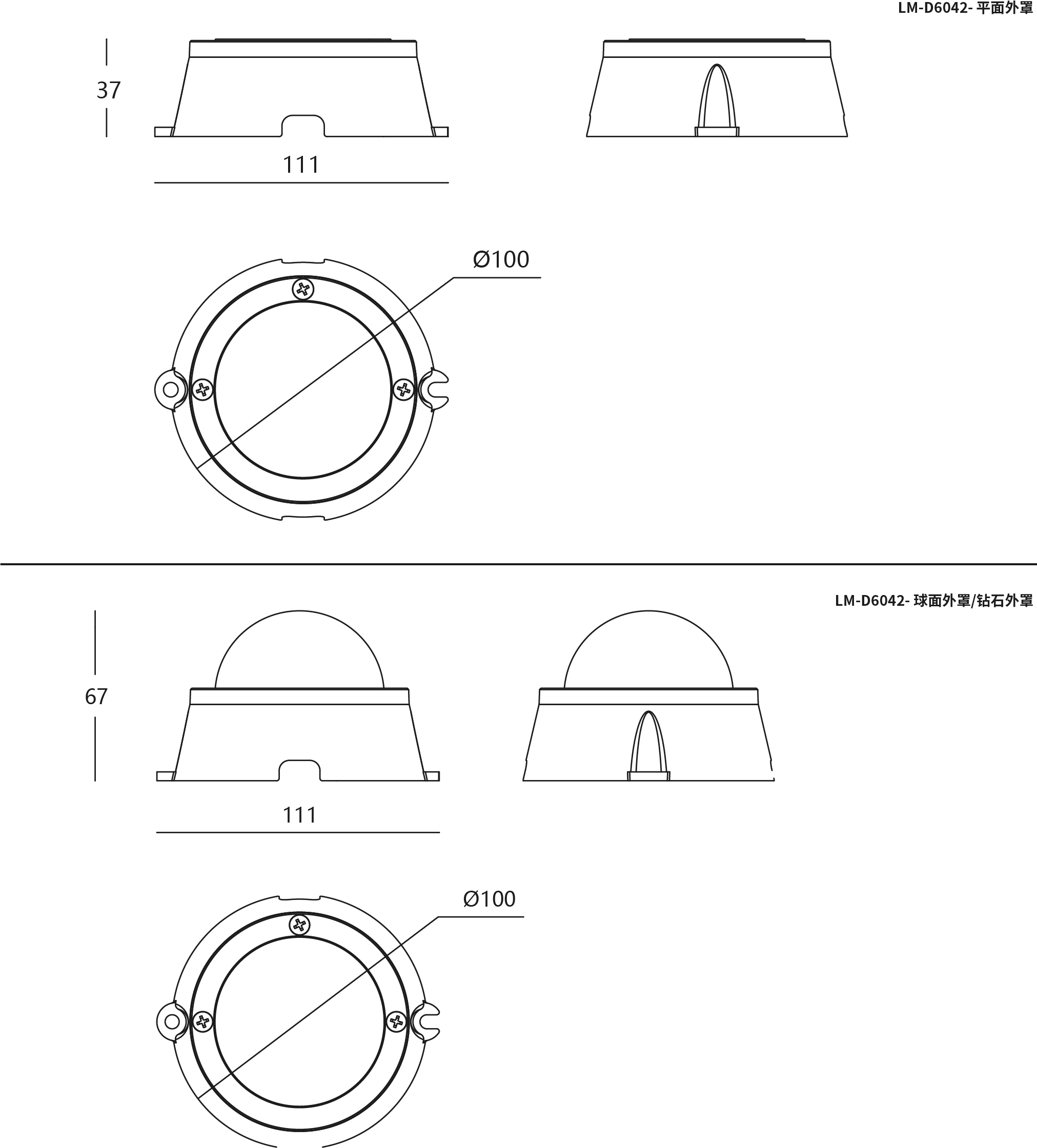

Dimensions
