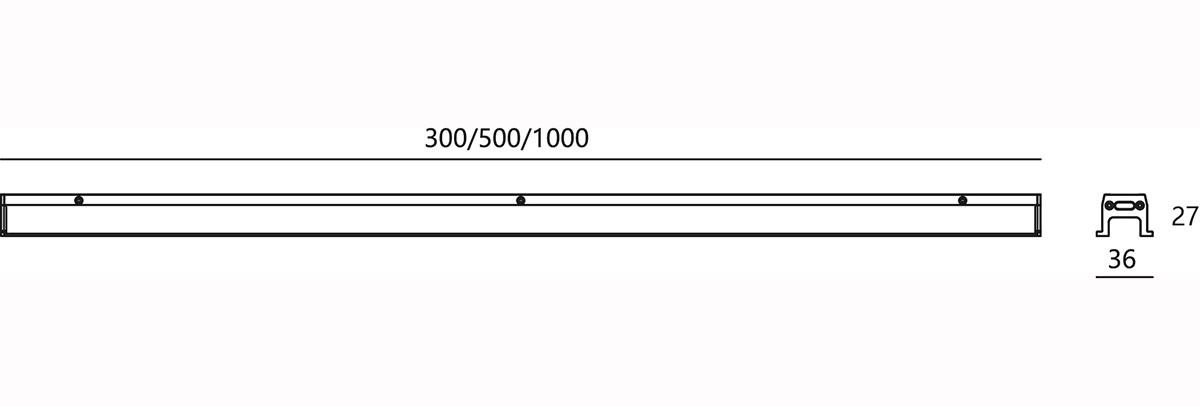

Dimension(mm):

1000(L)*36(W)*27(H),500(L)*36(W)*27(H),300(L)*36(W)*27(H)

Brand of Light Source:

OSRAM/LUMILEDS/OSRAM+LUMILEDS

Light Color:

2200/2700/3000/4000/5000K,RGB,RGBW（24RGB+24W）,RGBW（12RGB+12W）,RGBW（6RGB+6W）

Power:

48pcs：12W

24pcs：6W

12pcs：3W

CRI （Ra):

80   80/70(>5000K)(mono white)

SDCM:

≤5SDCM

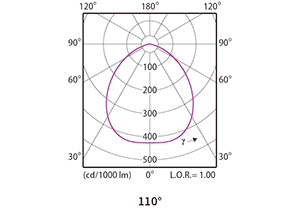

Beam Angle:

micro out light surface（110°）+aluminum housing

Input voltage:

DC24V

Control:

DMX or ON/OFF

Channel:

8/4/2   1/2

Appearance:

Weight:0.63/0.32/0.17KG，Materials：Extruded aluminum+PC lens，Color：RAL7012

Temperature Range:

-35℃ to 50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66

IK06

Windward Area（max m²）:

0.038

Environmental Certification:

ROHS

Certification

CQC

Cable:

2 core round-wire cable exposed 15cm, 2x1.5mm2 with IP66&IP67 cable glands（On-Off）

5 core round-wire cable exposed 15cm, 2x1.5mm2 + 3x0.25mm2 with IP66&IP67 cable glands（DMX）
