Certification

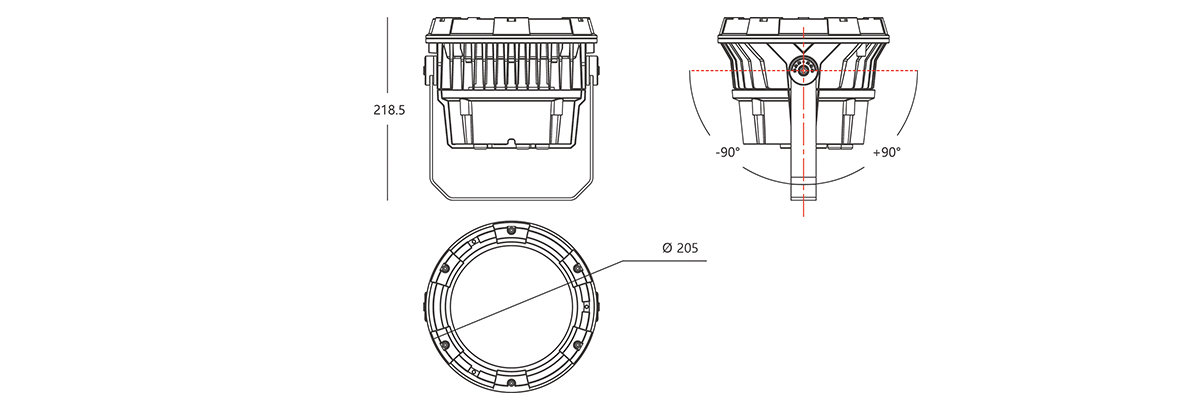

205(L)*205(W)*218.5(H)

Brand of Light Source:

CREE/OSRAM

Light Color:

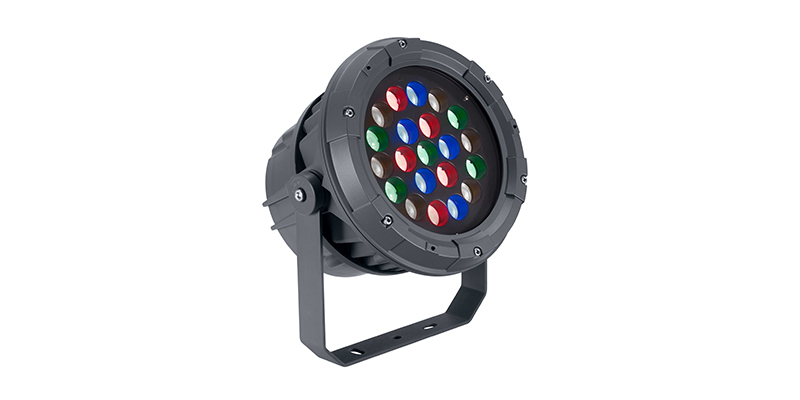

2700/3000/4000/5000K,3R3G3B3W,4R4G4B,5R5G5B3W,6R6G6B

Power:

standard version:
6pcs：12/15W
12pcs：24/27W
18pcs：36W

anti-glare version:
20/21pcs:48W

CRI （Ra):

80/70(>5000K)

SDCM:

≤5SDCM

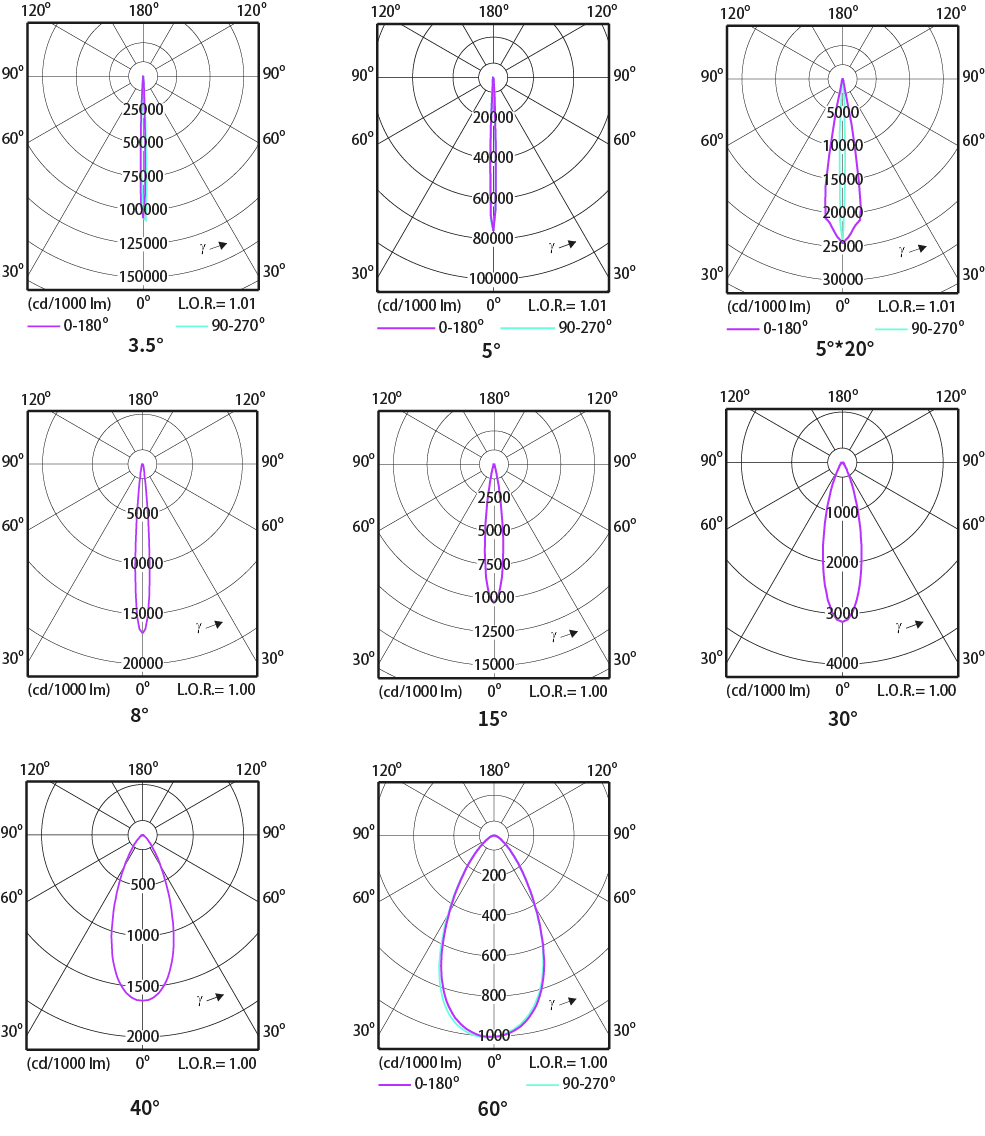

Beam Angle:

3.5°/5°/5×20°/8°/15°/30°/45°/60°

Input voltage:

DC24V/AC220V

Control:

DMX/RDM or ON/OFF

Channel:

1

Appearance:

Weight:4.1KG，Materials：Die-cast aluminum+Ultra-white transparent tempered glass，Color：RAL7012

Temperature Range:

-35℃~+50℃（Starting）,-40°C to 50°C (Working),-40°C to 70°C (Storage)

Surface Temperature:（@50℃）

≤65

Protection Grade:

IP66

IK08

Windward Area（max m²）:

0.038

Environmental Certification:

ROHS

Certification:

CQC

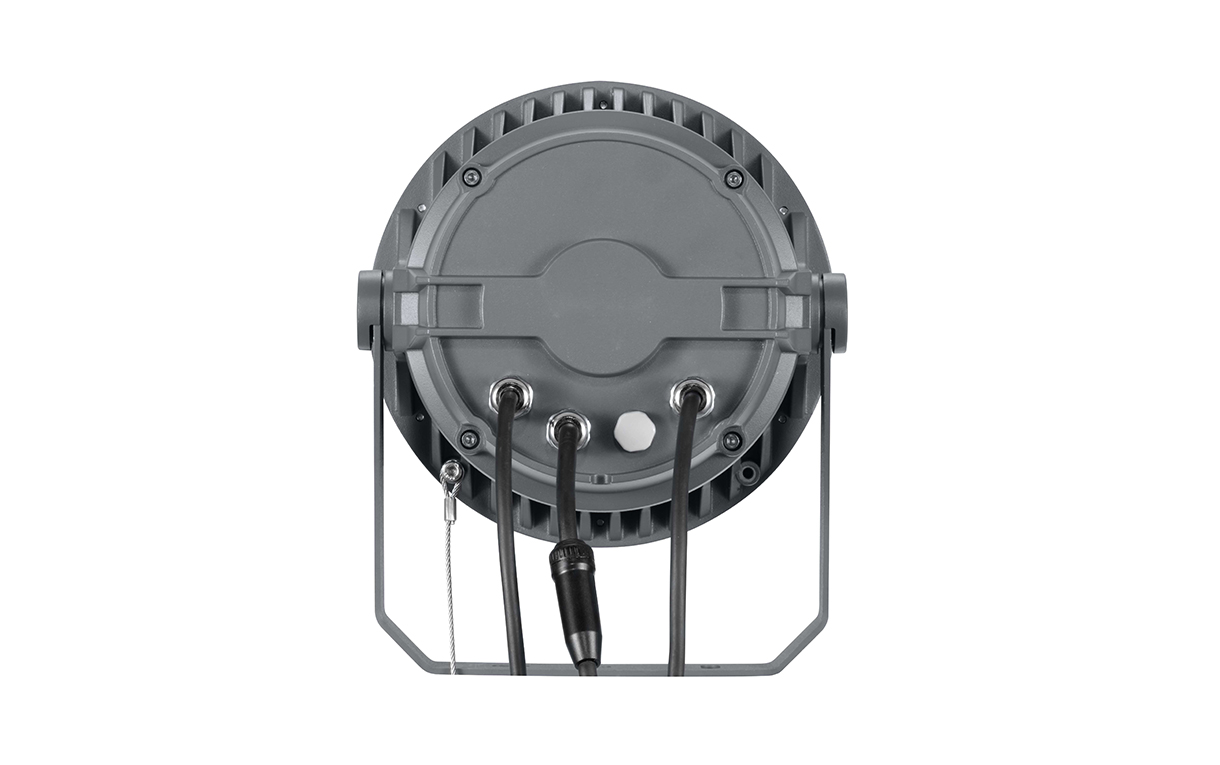

Cable:

Low voltage：2 core round-wire cable exposed 50cm, 2x1.0mm2（On-Off）;2 core round-wire cable exposed 50cm, 2x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IIP67cable glands（DMX）

High voltage：3 core round-wire cable exposed 50cm, 3x1.0mm2（On-Off）;3 core round-wire cable exposed 50cm, 3x1.0mm2+4 core round-wire cable exposed 50cm, 4x0.5mm2 withIP66&IIP67cable glands（DMX)
