1. The number of carrier channels, baud rate, playback speed, number of colors and other device parameters of the addressor can be set;

2. Support for the addressing of a variety of DMX512 chips, specifying the starting channel, the carrier channel of a individual chip, and the equipment number, and verifying the addressing through automatic/manual test mode;

3. The device has a variety of built-in test animation effects, such as color gradients, automatic/manual running pixels, overall gradients and other effects.

4. support SD card to store animation data, and can specify a playback scene and adjust the playback speed as an animation effect player;

5. Can be used as a simple console to send data through any channel.

6. Support standard RDM protocol, RDM luminaires can be searched, static detection, addressing through UID, etc.

7. Support for a variety of chips parameter settings, current output adjustment, brightness adjustment, self-test chrom-luminaries or other functions.

8. Color disk coloring function enable color control by a certain color selected from palette. A variety of four-color modes are supported.

9. DMX512 signal output through one terminal function is supported. Its addressing signal compatible with differential signal mode.

10. Charging through Micro-B or USB interface(regular android phone USB interface).

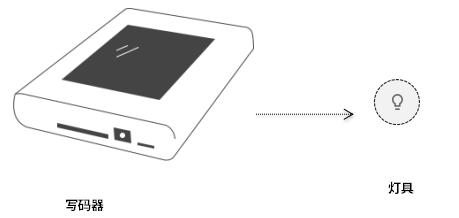

In the field of outdoor landscape LED control, the DMX512 drive mode is widely used in LED luminaires. Due to the particularity of the DMX512 protocol, LED luminaires must be addressed in the DMX512 protocol and the DMX512 channel address on a single branch must be reasonably distributed.

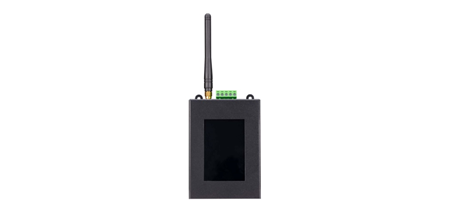

The product name	Touch screen hand-held addressor
Product model	\
The type of signal	DMX512/DMX512-A/RDM
	DC6V-24V / 5V (USB powered)
	Standard 5.5mm × 2.1mm female head
The type of USB connector	Micro-B USB interface
SD card capacity	512MB (standard)
Monosome size	132.2mm×87.4mm×30mm
Interface form	5Pin terminal ×1, Micro-B USB, SD card interface, antenna interface
Accessories	DC weld-free head × 1/SD card ×1
